Product Description

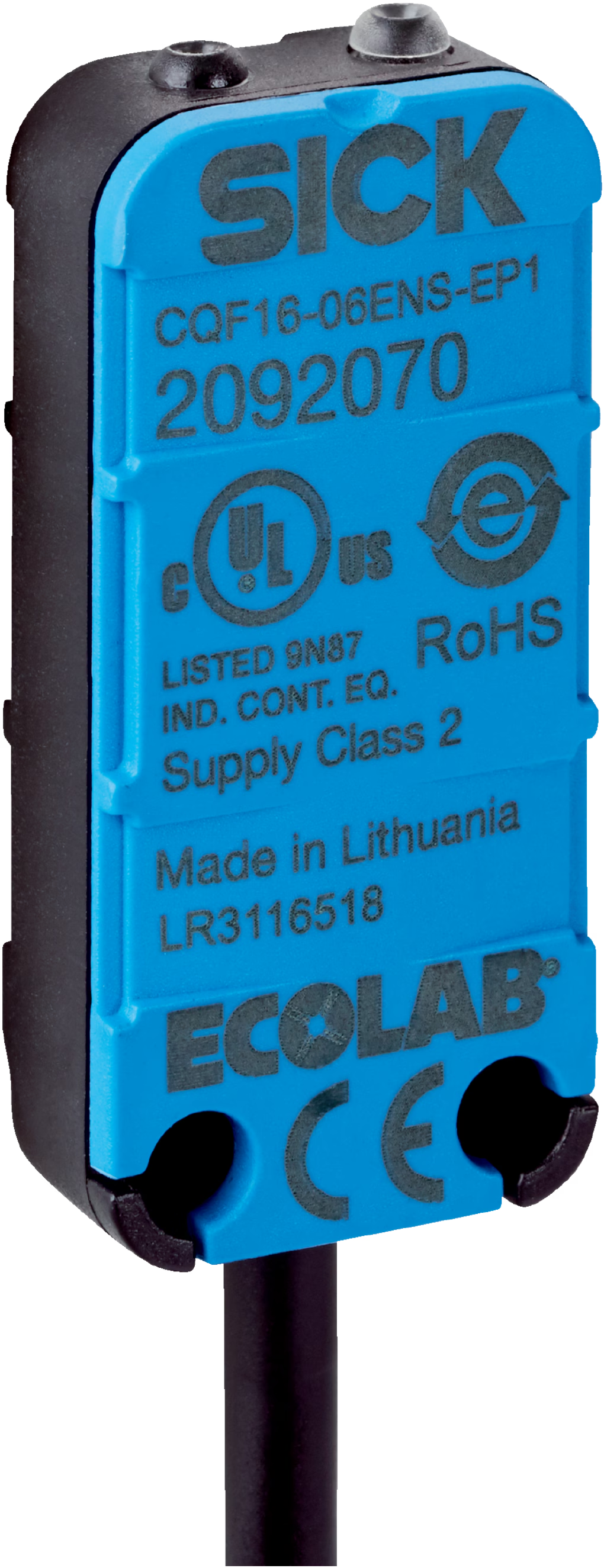

The SICK CQF16-06EPSEP1 is a compact capacitive proximity sensor from the CQF series, purpose-built for reliable water-based liquid level detection through non-metallic container walls. Designed and manufactured by SICK AG Germany, this sensor delivers accurate and consistent performance in demanding industrial environments.
| Attribute | Value |
|---|---|
| Brand | SICK |
| Model Number | CQF16-06EPSEP1 |
| Order Number | 6068624 |
| Product Name | CQF Capacitive Proximity Sensor |
| Series | CQF |
| Product Category | Capacitive Proximity Sensor / Level Sensor |
| Country of Origin | Lithuania |
| Design | Rectangular |
| Dimensions (W × H × D) | 16 mm × 34 mm × 8 mm |
| Housing Material | Plastic, PBT |
| Cable Material | PVC |
| Cable Cross Section | 0.14 mm² |
| Color | Black |
| Mounting Type | Flush / Non-flush |
| Max Tightening Torque | 0.2 Nm |
| Net Weight | ~0.04 kg (estimated) |
| Gross Weight | ~0.06 kg (estimated, incl. packaging) |
| Supply Voltage | 10 V ... 30 V DC |
| Residual Ripple | ≤ 10 % |
| Voltage Drop | ≤ 1.5 V DC |
| Current Consumption | 13 mA (no load) |
| Output Type | PNP |
| Output Function | Normally Open (NO) |
| Switching Current Ia | ≤ 100 mA |
| Switching Frequency | 10 Hz |
| Short-Circuit Protection | Yes |
| Power-Up Pulse Protection | Yes |
| Protection Class | III |
| Start-Up Delay | ≤ 300 ms |
| Sensing Distance Sn | 0.5 mm ... 6 mm |
| Temperature Drift (Sr) | ± 20 % |
| Detected Media | Water-based liquids up to 50 mS/cm conductivity |
| Min. Container Diameter | 8 mm |
| Container Wall Thickness | 0.5 ... 6 mm (plastic); 0.5 ... 4 mm (glass) |
| Connection Type | Cable with M8 connector, 4-pin, 0.3 m |
| Ingress Protection | IP67, IP68, IP69K |
| Operating Temperature | –25 °C ... +80 °C |
| Storage Temperature | –40 °C ... +85 °C |
| Shock / Vibration Resistance | 30 g, 11 ms / 10–150 Hz, 1.0 mm / 15 g |
| EMC | EN 60947-5-2 |
| Teaching Function | Cable/wire teach-in (filled or empty) |
| LED Indicators | Yellow (output signal), Green (supply voltage) |
| Included Accessories | Mounting bracket BEF-WMCQF16 × 1 |
| Certifications | CE, cULus, ECOLAB, RoHS |
| MTTFd | 1,972 years |
| TM (B10d reference life) | 20 years |
| Typical Applications | Level detection through container wall, semiconductor process liquids, food industry pipe level, condensate detection, adhesive container level, toner fill-level measurement |
| UNSPSC | 39122230 |
| ECLASS 12.0 | 27274201 |
| ETIM 8.0 | EC002715 |
