CM30-25NPP-EW1 6058156

属性名称	属性值
Brand	SICK
Model	CM30-25NPP-EW1
Order No.	6058156
Product Type	Capacitive proximity sensor
Shape	Cylindrical, M30 threaded
Thread Spec	M30×1.5
Sensing range	0 mm ... 25 mm
Flush mounting	Non-flush
Output	PNP, Complementary (NO+NC configurable)
Electrical type	DC 4-wire
Supply voltage	10 V DC ... 36 V DC
Max. switching current	200 mA
Switching frequency	50 Hz
Connection	2 m PVC cable, 4-core
Cable cross-section	0.34 mm²
Enclosure material	PBT plastic
Protection class	IP6

INQUIRY

Product Details

Product Tags

Product Overview

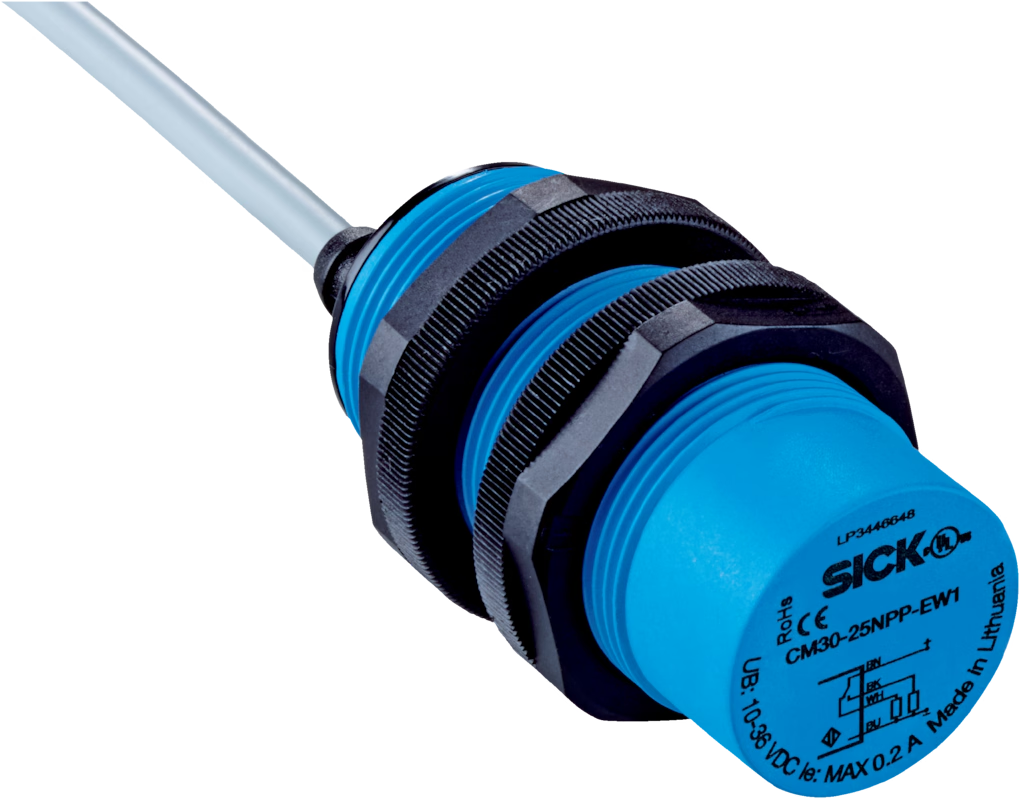

New original SICK CM30-25NPP-EW1 capacitive proximity sensor, Order No.6058156. This CM30 series cylindrical M30 capacitive sensor adopts potentiometer sensitivity adjustment principle, 0–25 mm long sensing range, PNP complementary NO+NC switchable output signal. Equipped with 2m 4-core PVC cable and M30 mounting nuts, protection grade IP67, IP68, IP69K. Wide temperature range -30℃~+85℃, vibration and impact resistance. It is widely used for bulk solid material and liquid level monitoring in automation equipment. RoHS compliant, suitable for silo, conveyor and plastic processing machinery.

属性名称	属性值
Brand	SICK
Model	CM30-25NPP-EW1
Order No.	6058156
Product Type	Capacitive proximity sensor
Shape	Cylindrical, M30 threaded
Thread Spec	M30×1.5
Sensing range	0 mm ... 25 mm
Flush mounting	Non-flush
Output	PNP, Complementary (NO+NC configurable)
Electrical type	DC 4-wire
Supply voltage	10 V DC ... 36 V DC
Max. switching current	200 mA
Switching frequency	50 Hz
Connection	2 m PVC cable, 4-core
Cable cross-section	0.34 mm²
Enclosure material	PBT plastic
Protection class	IP67, IP68, IP69K
Operating temperature	-30 ℃ ~ +85 ℃
Storage temperature	-40 ℃ ~ +85 ℃
Feature	11-turn potentiometer sensitivity adjustment, complementary output
Accessory	2 pcs PA12 mounting nuts, 1 pcs adjustment screwdriver
Certificate	CE, cULus, RoHS
Condition	New Original
Net Weight	0.08 kg
Gross Weight	0.11 kg
