WLG12P-34162120A00ZDZZZZZZZZZ1
Product Details

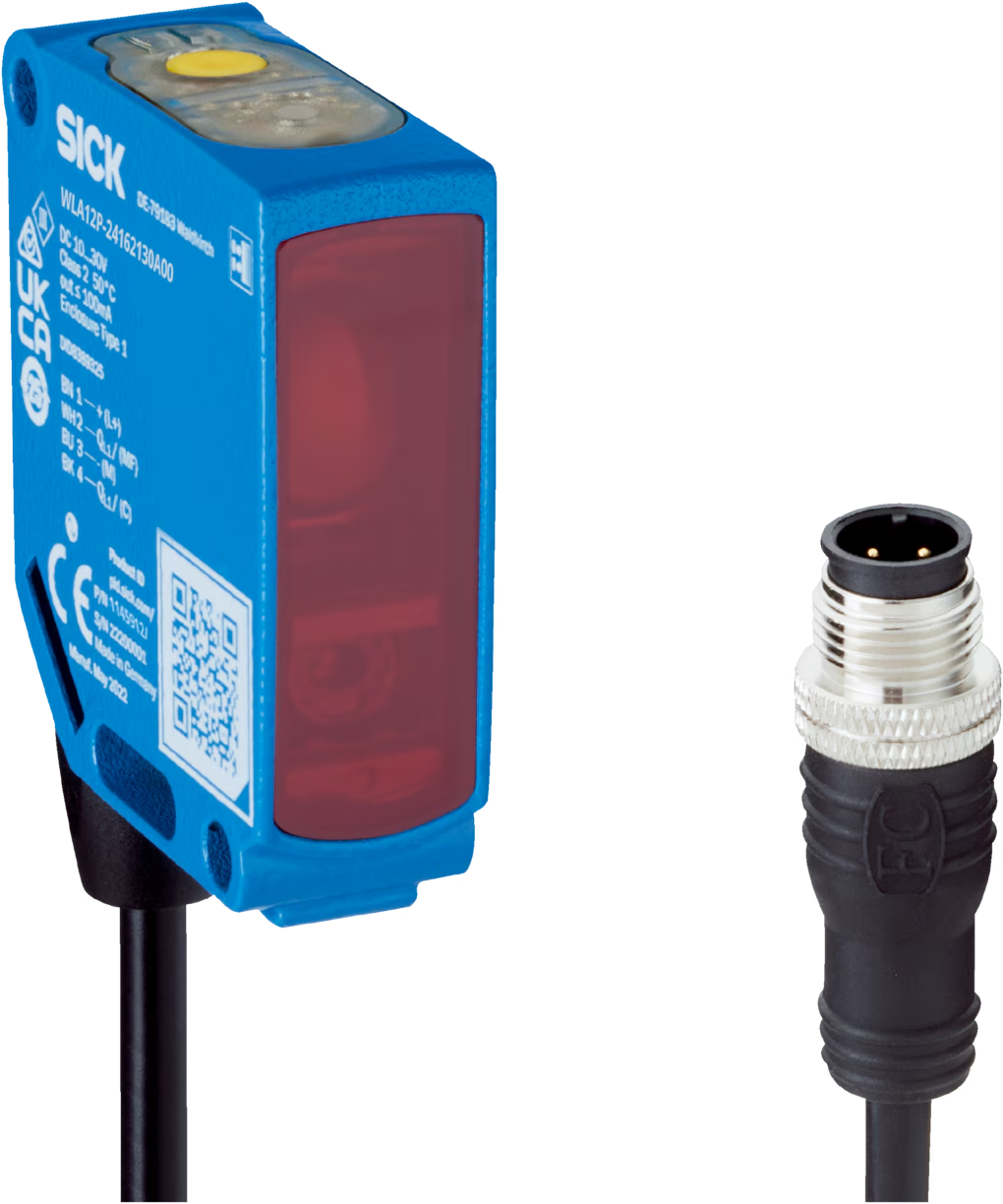

The SICK WLG12P-34162120A00ZDZZZZZZZZZ1 is a brand-new original retro-reflective photoelectric sensor from the W12 series. It is equipped with visible red LED light source and operates under 10–30 V DC power supply, featuring PNP output and switchable Light-ON / Dark-ON function for convenient connection to various PLC control systems. It has IP67 protection grade to resist dust and moisture in harsh industrial workshop environments.
Made of robust zinc die-cast rectangular metal housing, this sensor uses M12 4-pin connector for quick mounting and wiring. It requires a matched reflector. When objects cut off the red light beam between sensor and reflector, detection signals will be triggered.
This sensor is widely deployed for object detection on conveyor belts, packaging machinery and material handling automated production lines. Each unit undergoes full quality inspection before shipment and holds CE certification. We supply genuine SICK sensors with MOQ of 1 piece and provide stable global shipping services to meet your factory automation demands.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | WLG12P-34162120A00ZDZZZZZZZZZ1 |
| Product Name | Photoelectric Sensor |
| Product Type | Retro-reflective Photoelectric Sensor |
| Series | W12 Series |
| Working Principle | Retro-reflective detection |
| Light Source | Visible Red LED |
| Housing Material | Zinc die-cast metal |
| Shape | Rectangular |
| Dimension(W×H×D) | 15.8mm × 49.2mm × 43.1mm |
| Connection | M12 4-pin connector |
| Output Type | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | 10 … 30 V DC |
| IP Rating | IP67 |
| Ambient Temperature | -25℃ ~ +55℃ |
| Net Weight | 0.22 kg |
| Gross Weight | 0.27 kg |
| Origin | Germany |
| Condition | Brand New Original |
| Application | Object detection, conveyor, packaging machinery, material handling automation |
| Certificate | CE |
| MOQ | 1 Piece |
