LUTX-USF4F1125IZZZ
Product Details

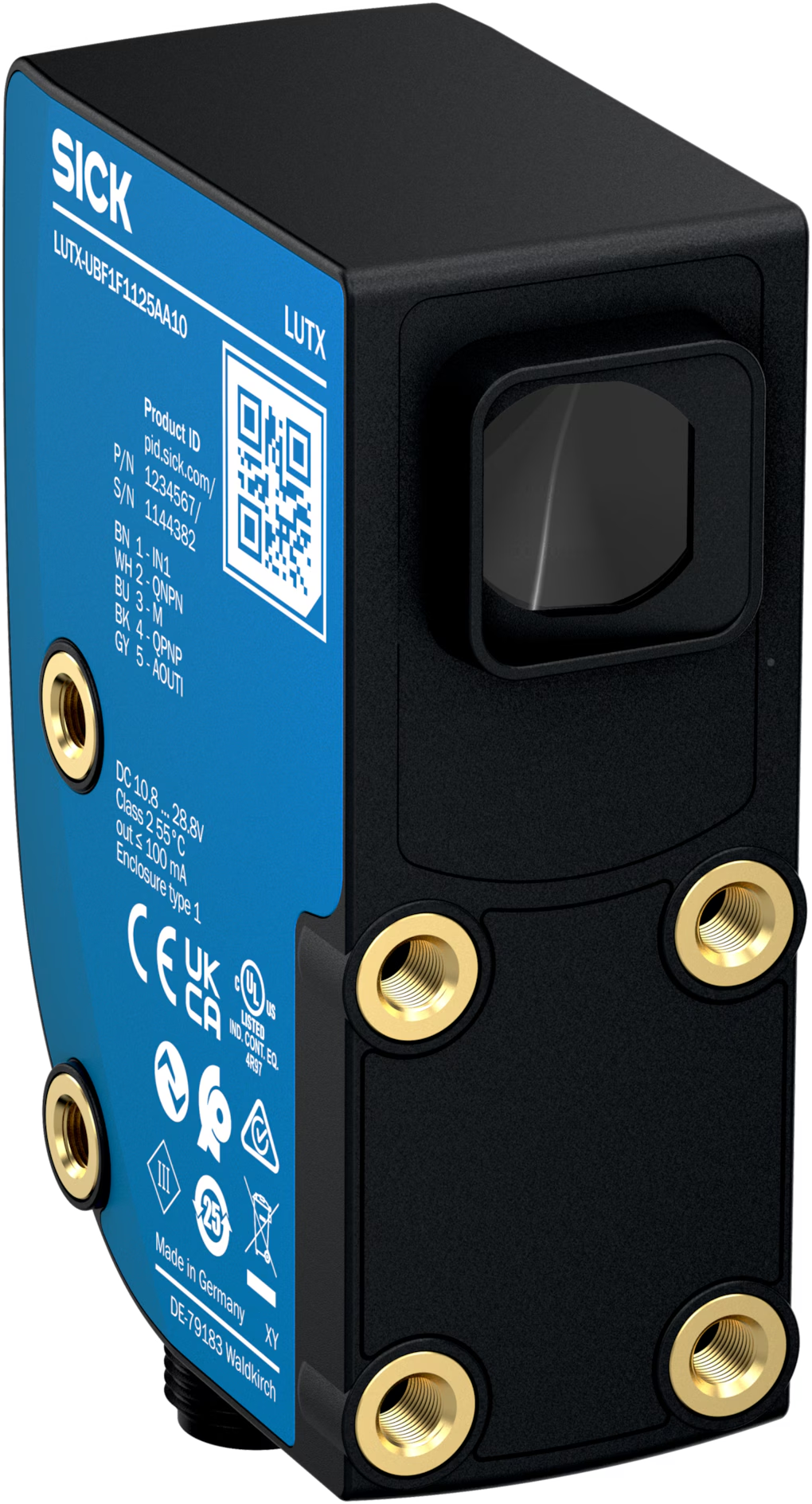

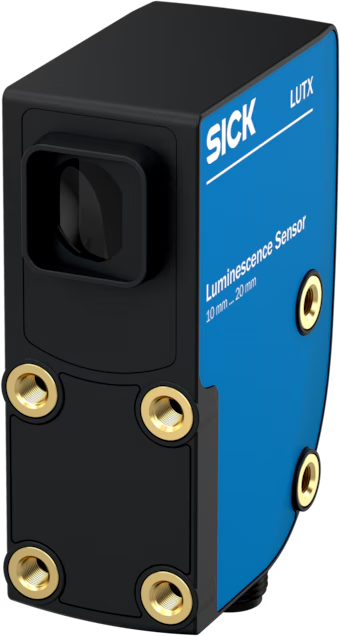

The SICK LUTX-USF4F1125IZZZ is a brand-new original fluorescence photoelectric sensor from the LUTX series. It uses UV LED light source and operates within 10–30 V DC power supply, with PNP output and switchable Light-ON / Dark-ON function to connect to different PLC controllers. It achieves IP67 protection grade for dust and moisture resistance in industrial environments.
Made of compact PBT plastic rectangular housing, this sensor is fitted with M12 connector. It excels at detecting fluorescent marks and labels by capturing the fluorescence signal triggered by UV excitation light.
This fluorescence sensor is widely installed on packaging machinery and conveyor automated production lines. Each unit undergoes strict quality inspection before shipment and comes with CE certification. We supply genuine SICK sensors with MOQ of 1 piece and offer stable global shipping services to meet your factory automation requirements.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | LUTX-USF4F1125IZZZ |
| Product Name | Fluorescence Sensor |
| Product Type | Fluorescence photoelectric sensor |
| Series | LUTX series |
| Working Principle | Fluorescence detection |
| Light Source | UV LED |
| Housing Material | PBT Plastic |
| Shape | Compact rectangular |
| Connection | M12 connector |
| Output Type | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | 10 … 30 V DC |
| IP Rating | IP67 |
| Ambient Temperature | -25℃ ~ +55℃ |
| Net Weight | 0.13 kg |
| Gross Weight | 0.18 kg |
| Origin | Germany |
| Condition | Brand New Original |
| Application | Fluorescent mark detection, label detection, packaging machinery, conveyor automation |
| Certificate | CE |
| MOQ | 1 Piece |
