VUVG-BK14-M52-AT-F-1R8L-S
Product Overview

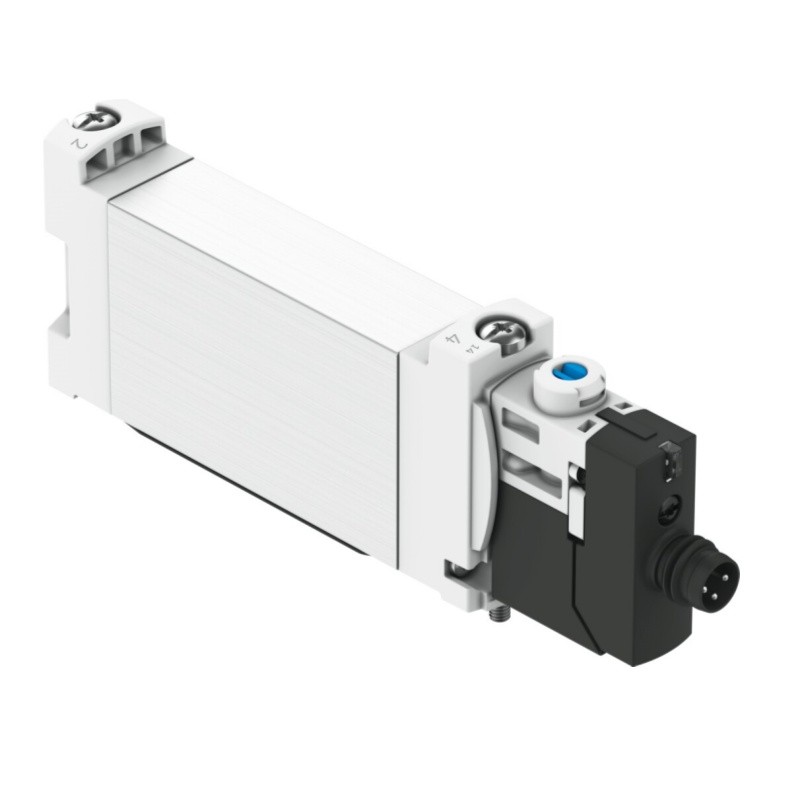

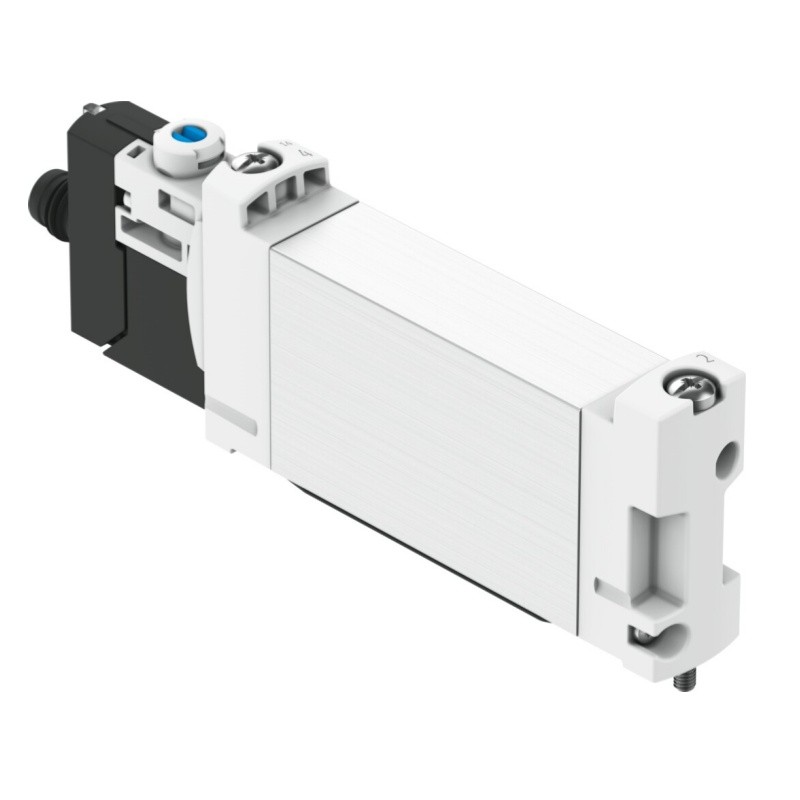

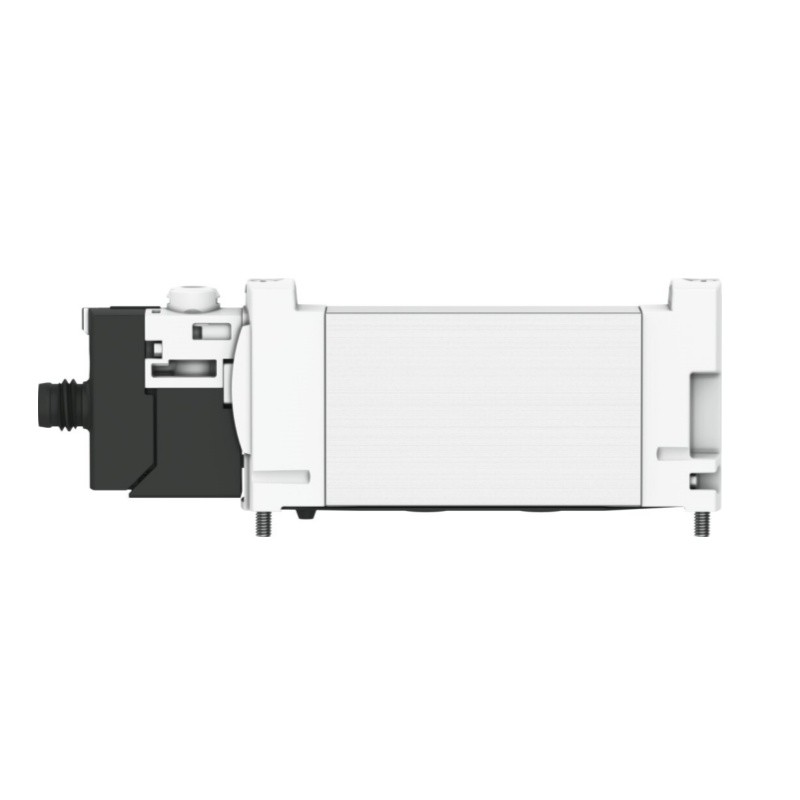

The Festo VUVG-BK14-M52-AT-F-1R8L-S (Part No. 8042575) is a high-performance 5/2-way monostable pneumatic solenoid valve belonging to the premium VUVG series. Designed for manifold mounting, this pilot-operated valve features stable performance, fast response speed and long service life, widely applied in automated pneumatic control systems. With IP65 protection grade and industrial-grade sealing design, it ensures reliable operation in various harsh industrial environments.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VUVG-BK14-M52-AT-F-1R8L-S |
| Part Number | 8042575 |
| Product Type | Solenoid Valve |
| Valve Function | 5/2-way, monostable |
| Valve Size | 14 mm |
| Rated Flow | 380 l/min |
| Operating Voltage | 24V DC |
| Coil Power | 0.8W |
| Operating Pressure | 2.5 ~ 7 bar（0.25~0.7 MPa） |
| Pneumatic Connection | Flange（for manifold mounting） |
| Electrical Connection | M8×1 A-coded plug |
| Protection Class | IP65 |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -5 ~ +50 ℃ |
| Medium Temperature | -5 ~ +50 ℃ |
| Structure | Pilot operated, piston spool with sealing ring |
| Reset Type | Pneumatic spring |
| Max Switching Frequency | 2 Hz |
| Switch ON Time | 14 ms |
| Switch OFF Time | 24 ms |
| Housing Material | Wrought aluminum alloy |
| Seal Material | HNBR / NBR |
| Weight | 65 g |
| Certification | cULus Recognized |
| RoHS | Compliant |
| Mounting | Any position, manifold base mounting |
| Pilot Air | Internal pilot air supply |
| Manual Override | Detenting & Non-detenting |
| Exhaust | Adjustable flow control |
| CRC Class | CRC 0 |
| LABS | VDMA24364 Zone III |
| Original/New | New Original |
