NECU-M-S-D12G4-C2-ET

NECU-M-S-D12G4-C2-ET
属性名称	属性值
Brand	Festo
Model	NECU-M-S-D12G4-C2-ET
Part Number	543109
Product Type	Circular Connector / Fieldbus Plug
Connector Type	Straight Plug
Interface	M12x1, 4-pin, D-coded, shieldable
Termination	Screw terminal, shieldable
Operating Voltage	AC 0~250V, DC 0~250V
Surge Immunity	2.5 kV
Cable Diameter	6 mm ~ 8 mm
Wire Cross Section	0.14 mm² ~ 0.75 mm²
Transmission Standard	DIN EN 50173 / CAT5
Protection Class	IP67
Ambient Temperature	-25 ~ +85 ℃
Housing Material	Die-cast zinc, nic

Product Details

Product Tags

Product Overview

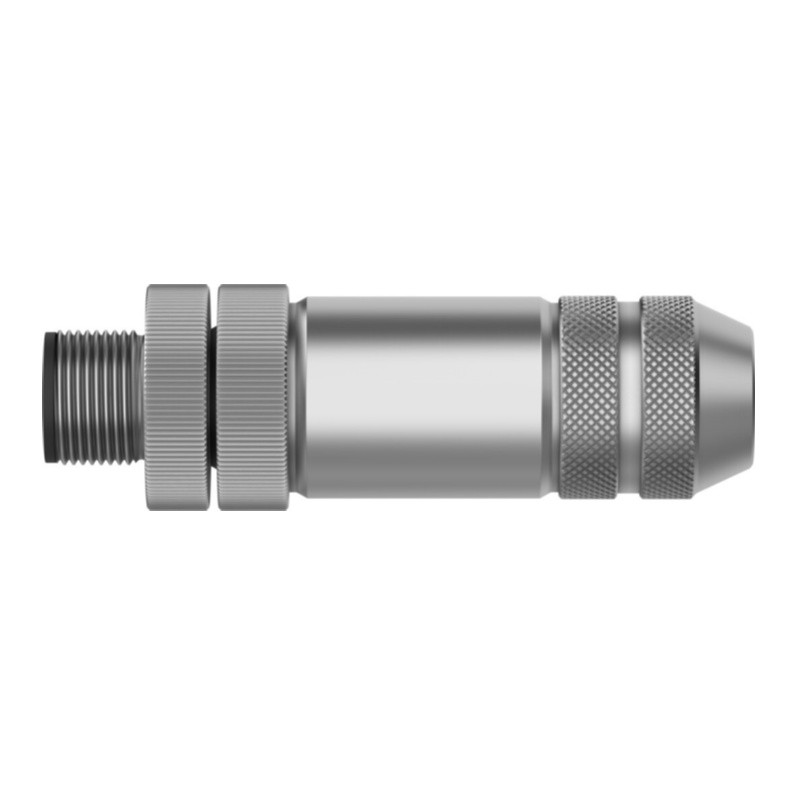

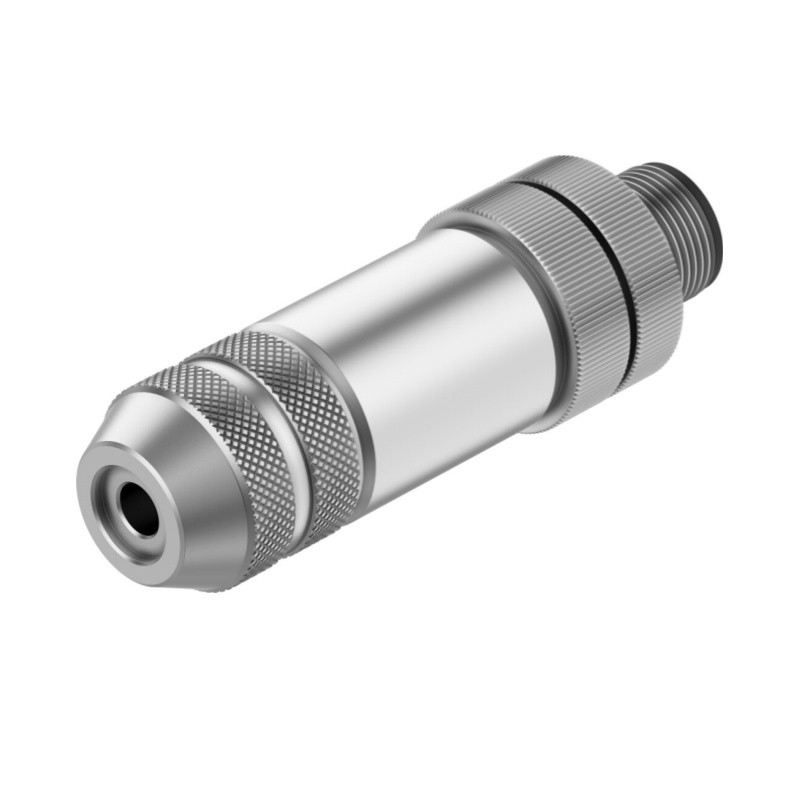

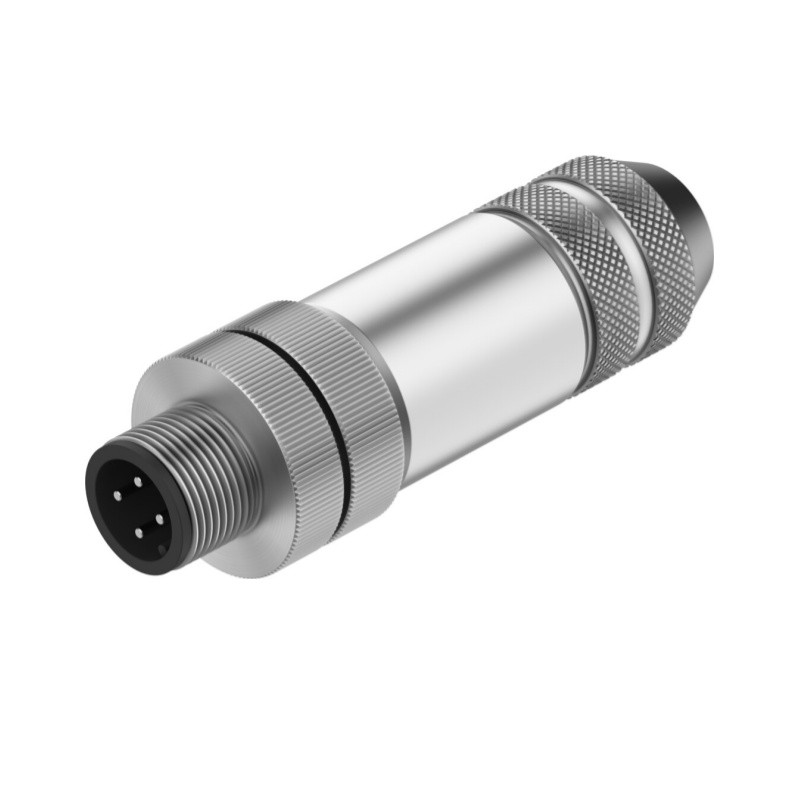

The Festo NECU-M-S-D12G4-C2-ET (Part No.543109) is a straight M12 fieldbus plug with D-coded 4 pins, supporting shield connection and screw terminal wiring. It is widely used for CPX valve island and industrial fieldbus communication, featuring stable signal transmission, IP67 waterproof & dustproof performance, suitable for various industrial automation environments.

属性名称属性值
BrandFesto
ModelNECU-M-S-D12G4-C2-ET
Part Number543109
Product TypeCircular Connector / Fieldbus Plug
Connector TypeStraight Plug
InterfaceM12x1, 4-pin, D-coded, shieldable
TerminationScrew terminal, shieldable
Operating VoltageAC 0~250V, DC 0~250V
Surge Immunity2.5 kV
Cable Diameter6 mm ~ 8 mm
Wire Cross Section0.14 mm² ~ 0.75 mm²
Transmission StandardDIN EN 50173 / CAT5
Protection ClassIP67
Ambient Temperature-25 ~ +85 ℃
Housing MaterialDie-cast zinc, nickel-plated
Contact MaterialGold-plated brass
Weight44.3 g
CRC ClassCRC 1
LABS(PWIS)VDMA24364-B2-L
Pollution Degree3
CertificationCE, UKCA
RoHSCompliant
Original/NewNew Original
