1071686 GTB10-P4214
Product Overview

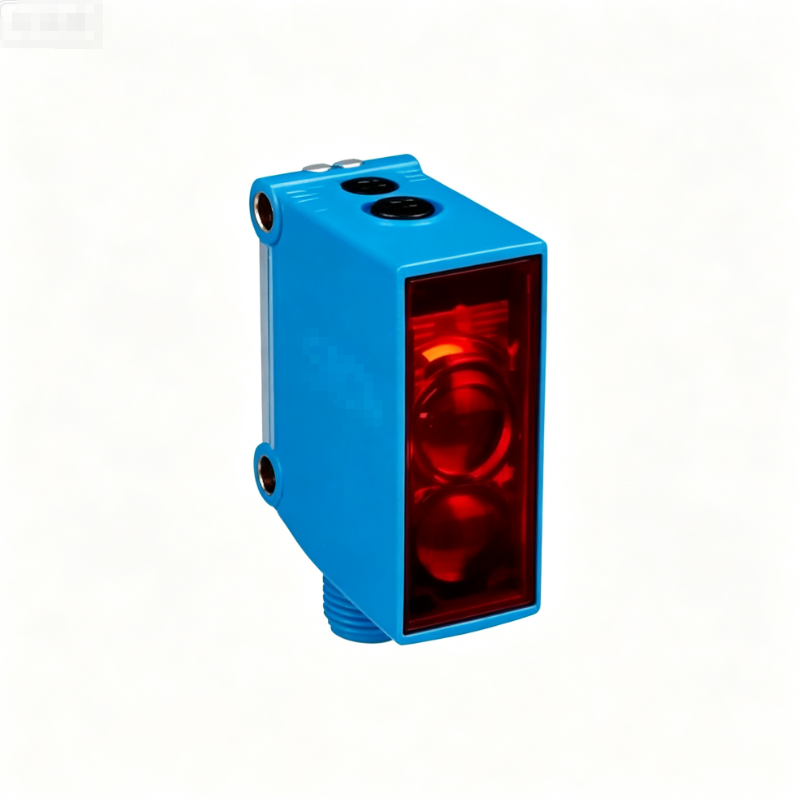

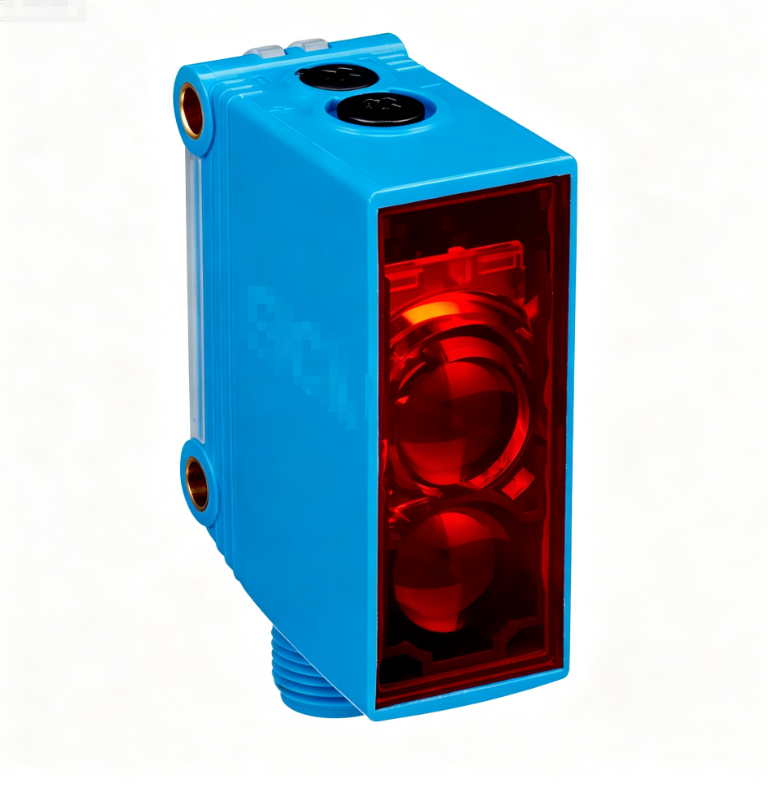

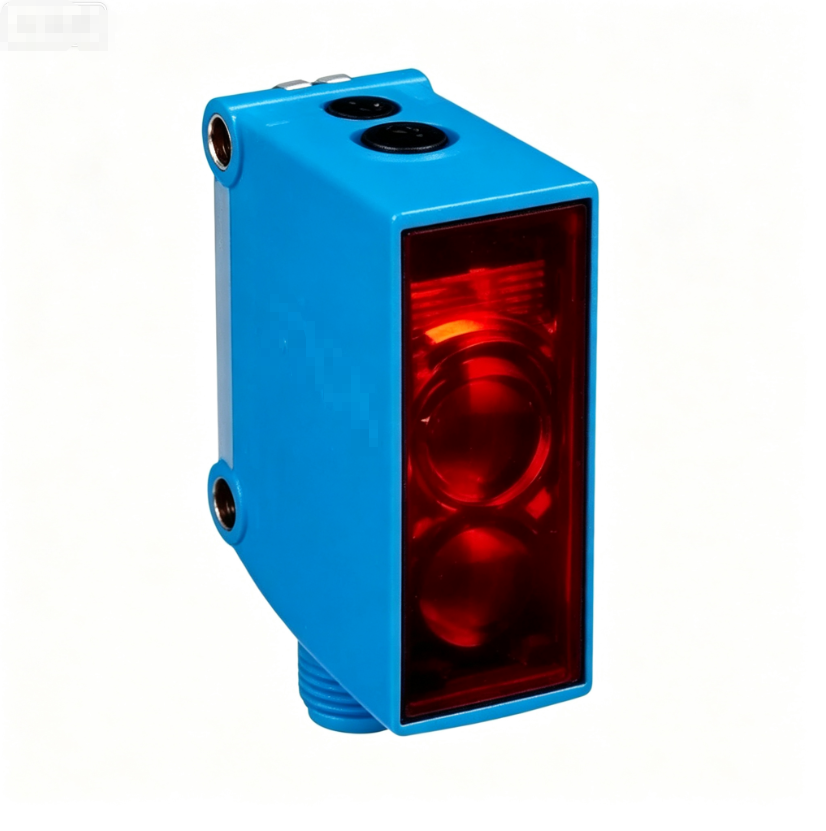

GTB10-P4214 (Part No.1071686) is a compact diffuse photoelectric sensor with background suppression from SICK GTB10 series. It comes with PinPoint 625nm visible red LED light source, sensing distance ranging from 20 mm to 950 mm. Equipped with a 5-turn potentiometer for sensitivity adjustment, it adopts PNP output with switchable Light-ON / Dark-ON function. Made of ABS plastic housing with IP67 protection class, M12 4-pin male connector and powered by DC10~30V. Thanks to background suppression technology, it can reliably detect target objects and avoid false triggers caused by background interference. Brand new original SICK photoelectric sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | GTB10-P4214 |
| Part No. | 1071686 |
| Product Type | Photoelectric Sensor |
| Series | G10 / GTB10 |
| Principle | Diffuse photoelectric sensor with background suppression |
| Light Source | PinPoint LED, 625nm visible red light |
| Sensing Distance | 20 ~ 950 mm |
| Adjustment | 5-turn potentiometer |
| Output Type | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Connector | M12 4-pin male connector |
| Protection Class | IP67 |
| Housing Material | ABS Plastic |
| Switching Frequency | 500 Hz |
| Condition | New Original |
| Application | Object detection, packaging machinery, conveyor systems, material handling equipment |
| Net Weight | 0.035 KG |
| Gross Weight | 0.068 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
