1044469 MZT8-03VPS-KU0

属性	属性值
Brand	SICK
Model Number	MZT8-03VPS-KU0
Part No.	1044469
Product Type	Cylinder Magnetic Sensor
Series	MZT8
Principle	Magnetic field detection for pneumatic cylinder piston
Sensing Type	Magnetic cylinder sensor, T-slot mounting
Adjustment	No adjustment
Output	PNP NO, DC 3-wire
Supply Voltage	10 ~ 30 V DC
Connector	M12 4-pin male connector
Protection Class	IP67
Housing Material	Plastic
Switching Frequency	1000 Hz
Special Feature	Compact T-slot design, simple snap-on installati

INQUIRY

Product Details

Product Tags

Product Overview

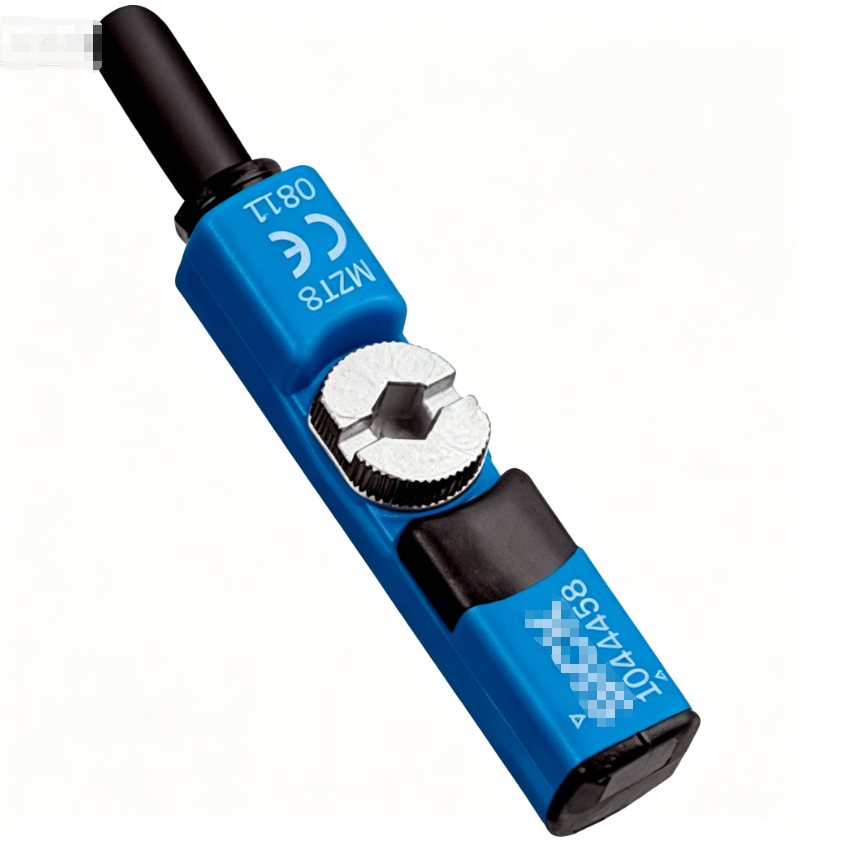

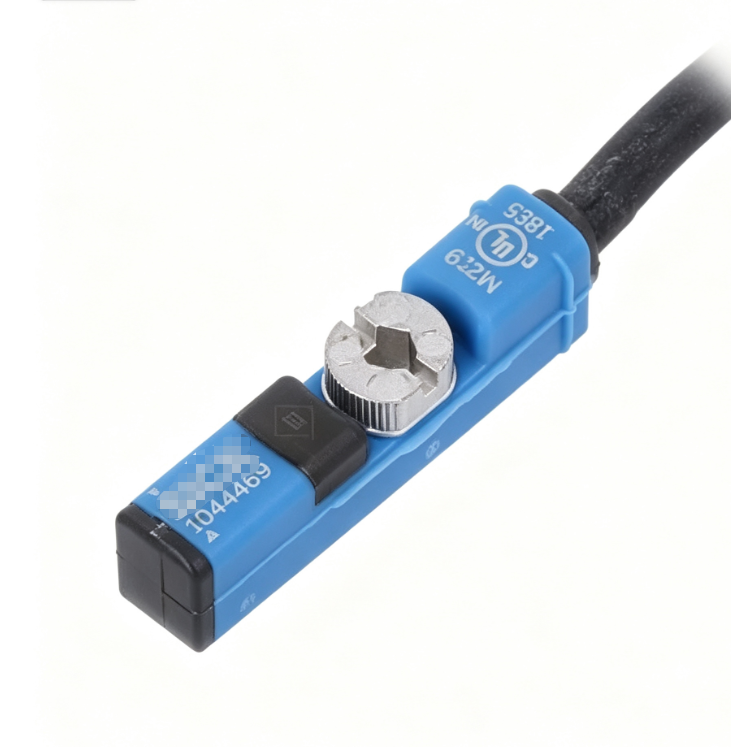

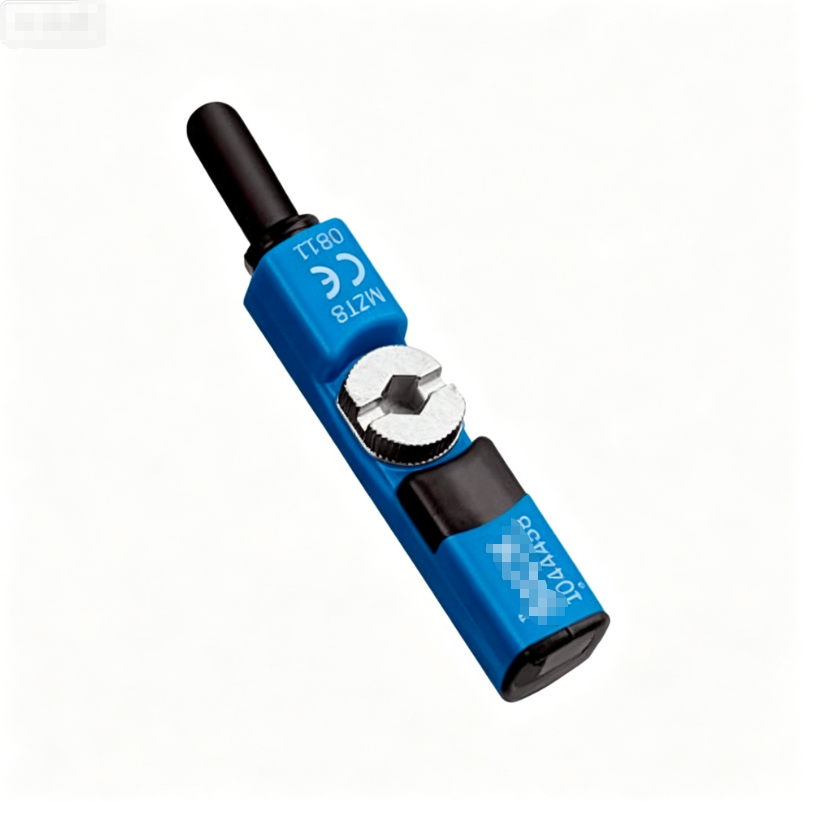

MZT8-03VPS-KU0 (Part No.1044469) is a compact magnetic cylinder sensor from SICK MZT8 series. It uses magnetic field detection technology to detect the piston position of pneumatic cylinders. Adopting T-slot mounting type with convenient snap-on installation, no extra adjustment needed. It comes with PNP Normally Open DC 3-wire output, powered by DC10~30V. The plastic housing has IP67 protection class and M12 4-pin male connector. It is widely used for pneumatic cylinder piston position feedback in automation equipment and conveyor systems. Brand new original SICK cylinder magnetic sensor.

属性	属性值
Brand	SICK
Model Number	MZT8-03VPS-KU0
Part No.	1044469
Product Type	Cylinder Magnetic Sensor
Series	MZT8
Principle	Magnetic field detection for pneumatic cylinder piston
Sensing Type	Magnetic cylinder sensor, T-slot mounting
Adjustment	No adjustment
Output	PNP NO, DC 3-wire
Supply Voltage	10 ~ 30 V DC
Connector	M12 4-pin male connector
Protection Class	IP67
Housing Material	Plastic
Switching Frequency	1000 Hz
Special Feature	Compact T-slot design, simple snap-on installation
Condition	New Original
Application	Pneumatic cylinder piston position detection, automation equipment, conveyor system
Net Weight	0.028 KG
Gross Weight	0.055 KG
Place of Origin	Germany
MOQ	1 Piece
Warranty	12 Months
