ADVU-40-40-A-P-A
Product Overview

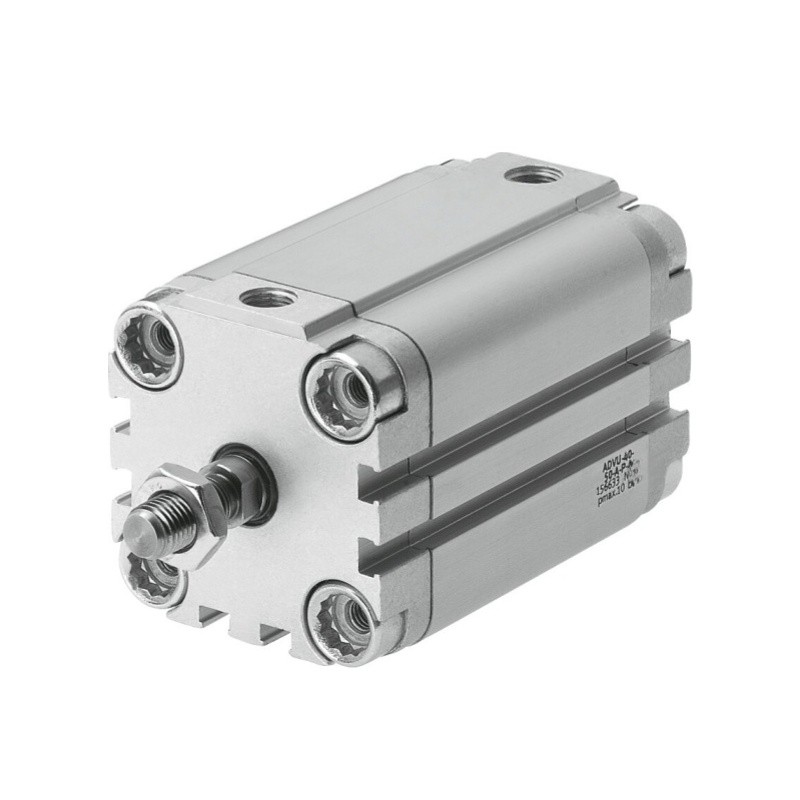

Festo ADVU-40-40-A-P-A (Part No.156632) belongs to ADVU compact cylinder series. It is double acting short-stroke pneumatic cylinder with compact flat structure, saving installation space. Equipped with elastic cushion rings on both ends to reduce impact, widely used for linear push-pull motion in automation equipment.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | ADVU-40-40-A-P-A |
| Part Number | 156632 |
| Product Type | Compact Pneumatic Cylinder |
| Series | ADVU Series |
| Action Type | Double-acting |
| Bore | 40 mm |
| Stroke | 40 mm |
| Piston Rod Thread | M10×1.25 External male thread |
| Theoretical Force @6bar Advance | 754 N |
| Theoretical Force @6bar Return | 686 N |
| Operating Pressure | 0.8 ~ 10 bar（0.08~1.0 MPa） |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -20 ~ +80 ℃ |
| Cushioning | Elastic cushioning rings at both ends |
| Position Detection | Suitable for proximity sensor |
| Mounting | Any mounting position |
| Housing Material | Aluminum alloy |
| Seal Material | NBR |
| CRC Class | CRC 2 |
| LABS(PWIS) | VDMA24364-B1/B2-L |
| Certification | CE, UKCA |
| RoHS | Compliant |
| Original/New | New Original |
