PEV-1/4-B
Product Overview
Item No: 10773 Model: PEV-1/4-B Brand: Festo Type: Mechanical Pressure Switch, PEV Series

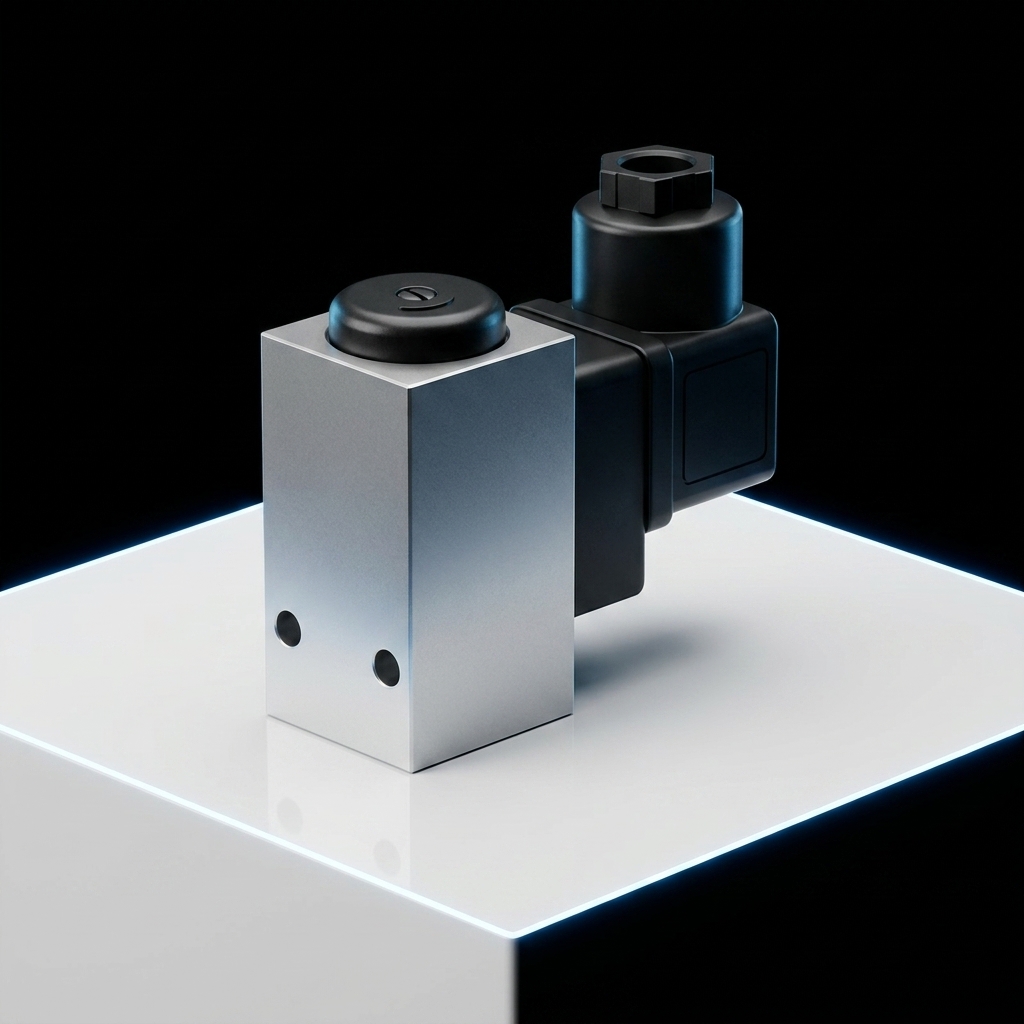

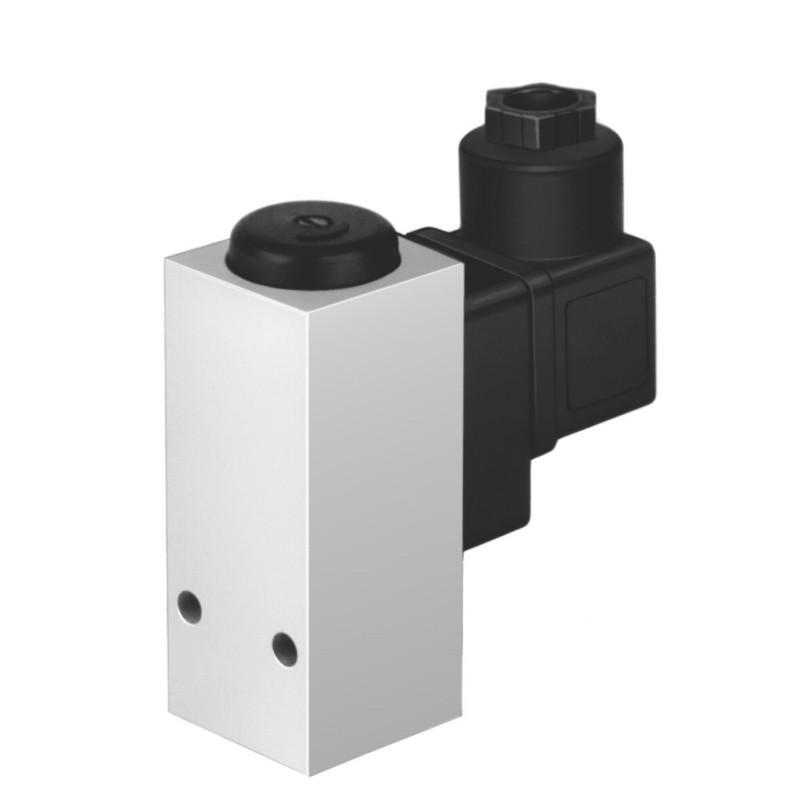

Festo PEV-1/4-B mechanical pressure switch, part number 10773, belongs to PEV series pneumatic-electrical pressure monitoring components. This pressure switch adopts SPDT changeover contact design, the switching point can be freely adjusted within 1~12 bar. It has G1/4 pneumatic connection and DIN43650 Type A electrical plug, IP65 protection grade for dustproof and waterproof. The die-cast aluminium housing and silver contacts provide excellent mechanical strength and stable electrical performance. It can be used with compressed air and water, either lubricated or non-lubricated. Through-hole mounting allows installation at any angle. It converts air pressure signal into electrical signal, widely applied in automation equipment for pneumatic circuit pressure monitoring, pressure feedback and safety interlock protection.
| 属性名称 (Key) | 属性值 (Value) |
|---|---|
| Brand | Festo |
| Model | PEV-1/4-B |
| Part No. | 10773 |
| Product Series | PEV |
| Product Type | Mechanical Pressure Switch |
| Product Function | Adjustable pneumatic-electrical pressure switch, changeover contact |
| Pneumatic Connection | G1/4 |
| Switching Pressure Range | 1 ~ 12 bar |
| Max Switching Frequency | 3 Hz |
| Electrical Spec | AC250V / DC125V, Max 5A, SPDT changeover switch |
| Electrical Connection | Type A plug DIN43650 |
| Protection Class | IP65 |
| Operating Medium | Filtered compressed air ISO 8573-1 [7:-:-], water, lubricated or non-lubricated |
| Ambient & Medium Temp | -20 ℃ ~ +80 ℃ |
| Housing Material | Die-cast aluminium |
| Contact Material | Silver |
| Mounting | Through-hole mounting, any installation position |
| Net Weight | 194 g/pc |
| RoHS Compliance | Yes |
| Feature | Adjustable switching point, robust aluminium housing, IP65 protection |
| Application | Pneumatic system pressure monitoring, automation equipment pressure feedback, safety interlock |
