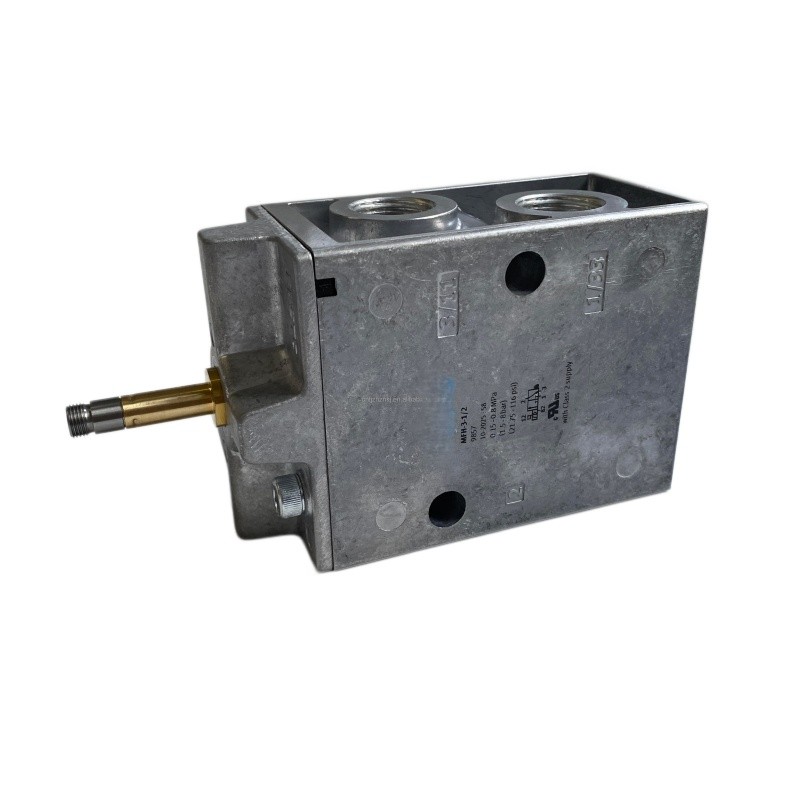

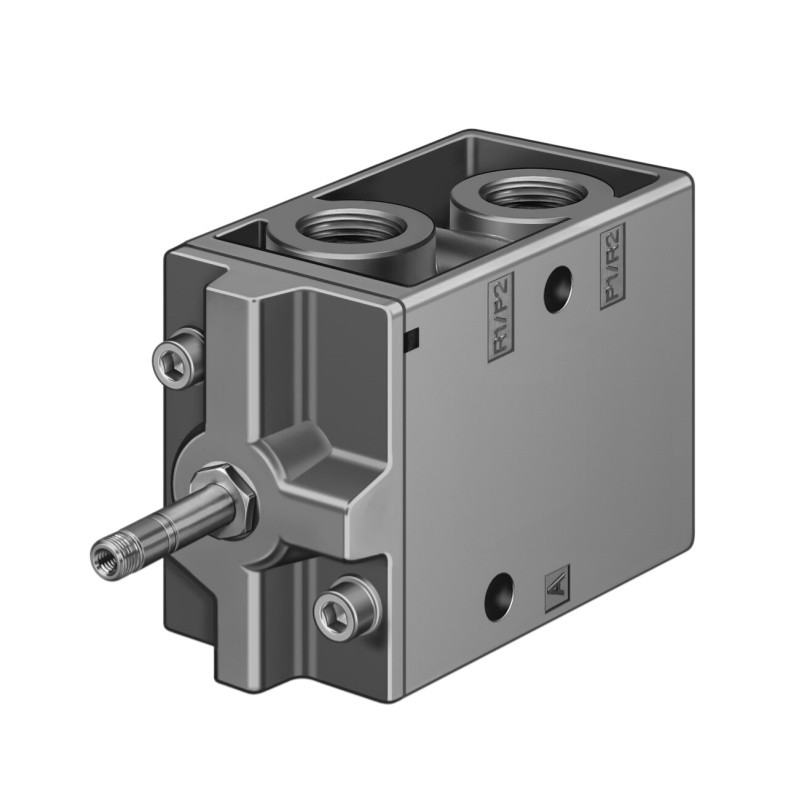

MFH-3-1/2
Product Overview
FESTO MFH-3-1/2 belongs to MFH Tiger Classic series, 3/2-way monostable poppet solenoid valve. Pilot operated with mechanical spring reset, G1/2 pneumatic port, nominal flow rate up to 3700 l/min. Soft NBR sealing, detenting manual override for commissioning test, exhaust port supports throttling adjustment. Solenoid coil needs separate ordering. IP65 protection after coil assembly, stable switching performance, fast response time, widely used for large-flow compressed air on-off control for pneumatic cylinders and automation equipment.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | MFH-3-1/2 |
| Order No. | 9857 |
| Product Series | MFH (Tiger Classic) |
| Product Type | 3/2-Way Poppet Pneumatic Solenoid Valve |
| Valve Function | 3/2-way, closed, monostable |
| Structure | Poppet seat valve, soft seal |
| Actuation | Pilot operated, mechanical spring reset |
| Pneumatic Port | G1/2 |
| Nominal Size | 14 mm |
| Nominal Flow Rate | 3700 l/min (DIN1343) |
| Operating Pressure | 1.5 ~ 8 bar |
| Switch-on Time | 18 ms |
| Switch-off Time | 90 ms |
| Manual Override | Detenting type |
| Exhaust Function | Throttleable exhaust |
| Coil | Solenoid coil sold separately |
| Protection Class | IP65 (with coil assembled) |
| Ambient Temperature | -5 ~ +40 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Housing Material | Die-cast aluminium |
| Seal Material | NBR soft seal |
| Feature | Tiger Classic large flow valve, detent manual override, high flow capacity |
| Mounting | Any mounting position |
| Construction Width | 52 mm |
| Grid Dimension | 69 mm |
| Certificate | CE, cULus Recognized, RoHS |
| Origin | Germany |
| Condition | New Original |
