6028357 DOS-1204-GN

属性名称	属性值
Brand	SICK
Model	DOS-1204-GN
Order No.	6028357
Product Type	Sensor Actuator Cable
Connector Type	M12 Female, Straight, A-coded
Pin	4 Pin
Core	4 Core
Conductor Cross Section	0.34 mm²
Cable Length	4 m
Cable Jacket Material	PUR, Halogen-free
Color	Gray
Locking Nut	Nickel-plated zinc die-cast
Shielding	Unshielded
Rated Voltage	≤60 V DC
Rated Current	4 A
IP Rating	IP65 / IP66K / IP67
Tightening Torque	0.6 Nm
Feature	Drag chain suitable, Oil resistant
Operating Temperature

INQUIRY

Product Details

Product Tags

Product Overview

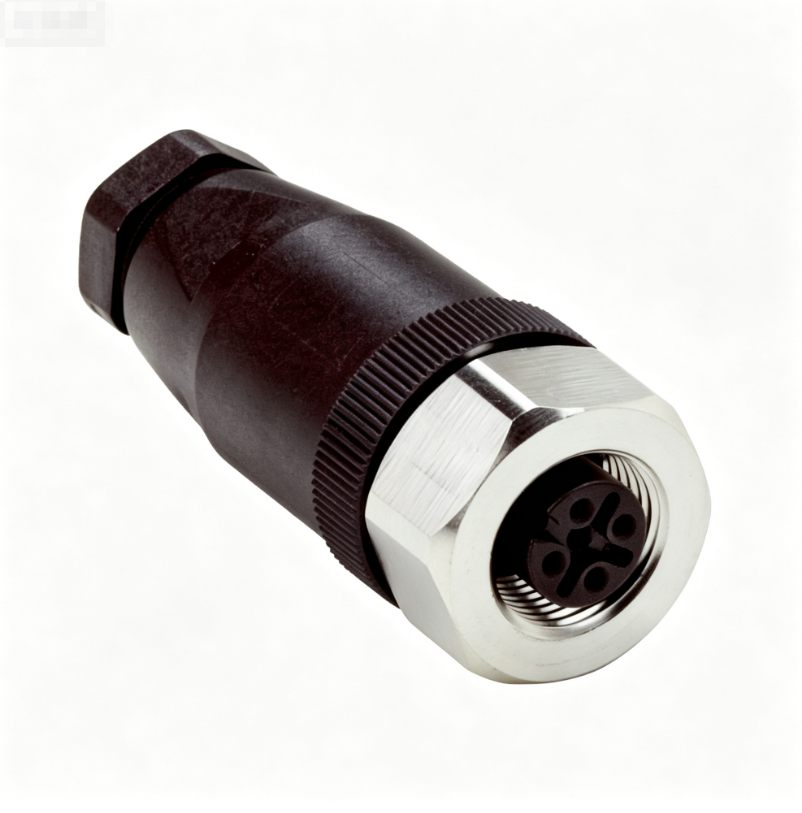

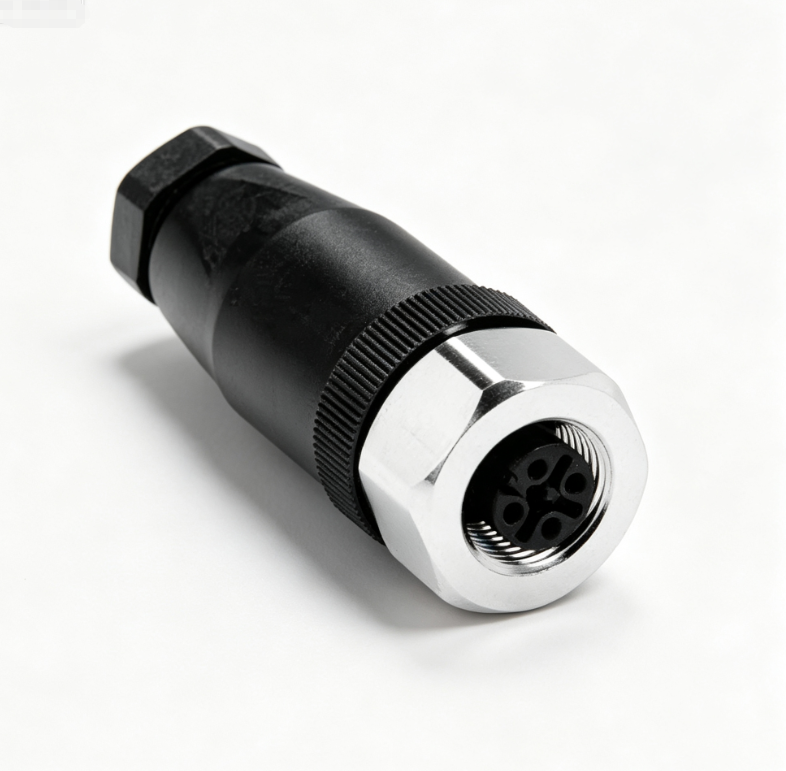

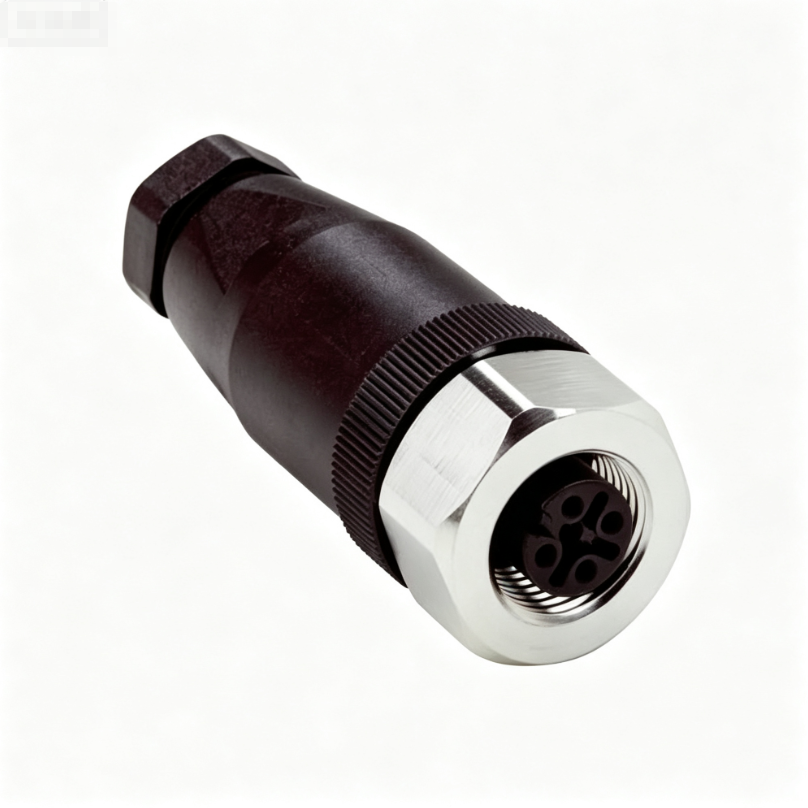

DOS-1204-GN (Part No.6028357) is SICK M12 sensor actuator cable. It is equipped with 4-pin A-coded straight female connector, cable length of 4 meters. This cable adopts halogen-free PUR jacket, unshielded structure, oil resistant and suitable for drag chain wiring. With IP67 protection, it delivers stable signal transmission for sensors and actuators in automated equipment and production systems.

属性名称	属性值
Brand	SICK
Model	DOS-1204-GN
Order No.	6028357
Product Type	Sensor Actuator Cable
Connector Type	M12 Female, Straight, A-coded
Pin	4 Pin
Core	4 Core
Conductor Cross Section	0.34 mm²
Cable Length	4 m
Cable Jacket Material	PUR, Halogen-free
Color	Gray
Locking Nut	Nickel-plated zinc die-cast
Shielding	Unshielded
Rated Voltage	≤60 V DC
Rated Current	4 A
IP Rating	IP65 / IP66K / IP67
Tightening Torque	0.6 Nm
Feature	Drag chain suitable, Oil resistant
Operating Temperature	Fixed: -40℃~+80℃, Drag chain: -25℃~+80℃, Connector: -25℃~+85℃
Certification	UL
Condition	New Original
MOQ	1 Piece
Gross Weight	0.10 KG
Net Weight	0.08 KG
Place of Origin	Germany
