574334 SMT-8M-A-PS-24V-E-0.3-M8D

属性名称	属性值
Brand	FESTO
Model	SMT-8M-A-PS-24V-E-0.3-M8D
MPN	574334
Product Type	Pneumatic Cylinder Magnetic Sensor, Proximity Switch
Series	SMT-8M Series
Material	Housing: Plastic; Actuator: Stainless steel
Cable Length	0.3 m
Connection	M8 3-pin male connector
Supply Voltage	24 V DC
Output Type	PNP, NO Normally Open
Feature	Magnetic reed sensor, for T-slot cylinder, easy sliding installation, short circuit protection, reverse polarity protection
Compliance	RoHS compliant, CE certified

INQUIRY

Product Details

Product Tags

Product Overview

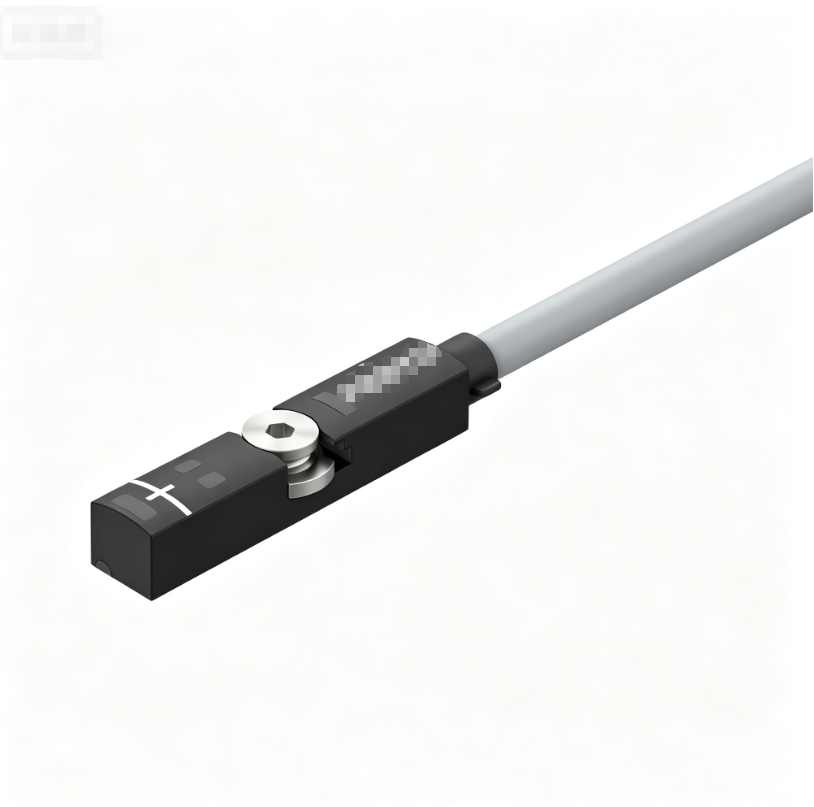

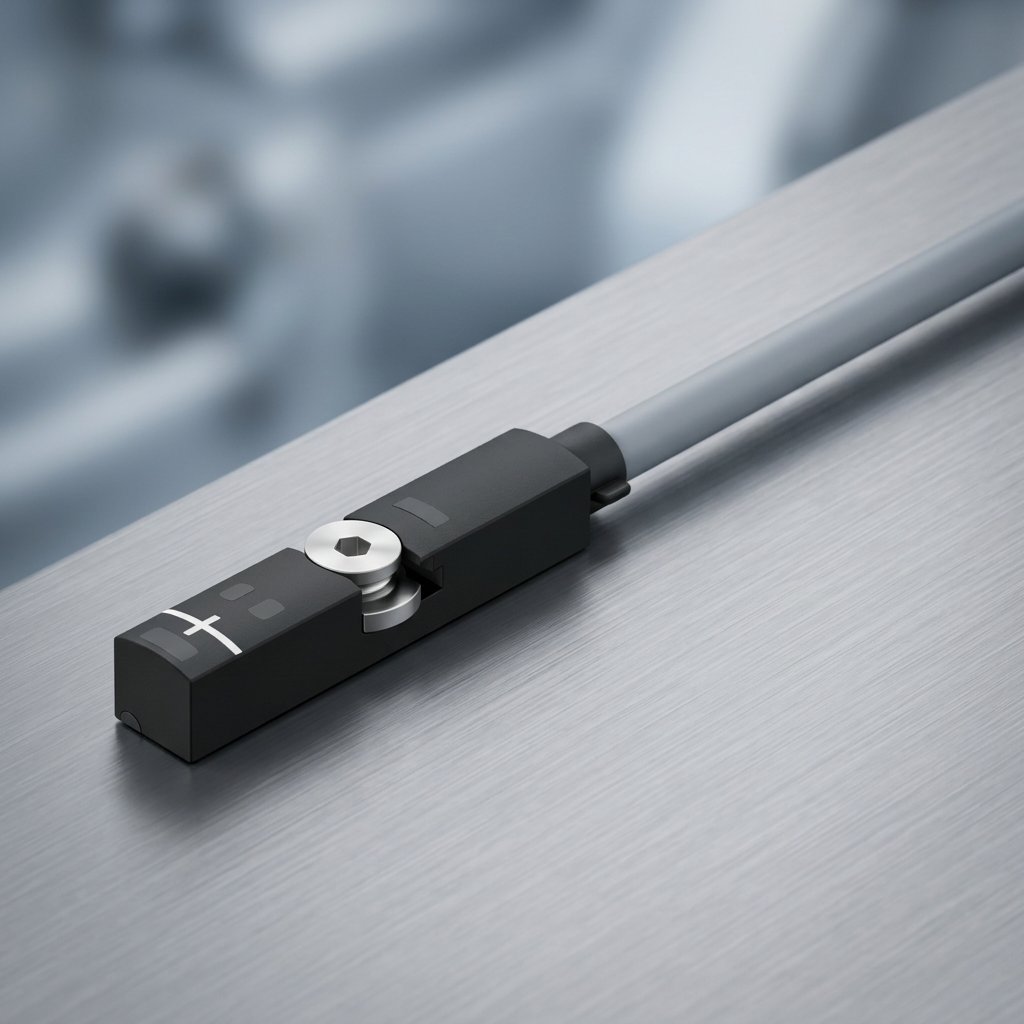

SMT-8M-A-PS-24V-E-0.3-M8D (Part No.574334) is Festo SMT-8M series magnetic proximity sensor for T-slot pneumatic cylinder. It adopts solid-state magnetic sensing principle, 24V DC power supply with PNP normally open output. Equipped with 0.3m cable and M8 3-pin male connector. The sensor can slide freely inside T-slot of cylinder profile for flexible position adjustment. Built-in short-circuit protection and reverse polarity protection. CE and RoHS compliant. Widely used for piston position signal feedback of pneumatic cylinders in industrial automation equipment.

属性名称	属性值
Brand	FESTO
Model	SMT-8M-A-PS-24V-E-0.3-M8D
MPN	574334
Product Type	Pneumatic Cylinder Magnetic Sensor, Proximity Switch
Series	SMT8-M Series
Material	Housing: Plastic; Actuator: Stainless steel
Cable Length	0.3 m
Connection	M8 3-pin male connector
Supply Voltage	24 V DC
Output Type	PNP, NO Normally Open
Feature	Magnetic sensor for T-slot cylinder, sliding installation, short circuit protection, reverse polarity protection
Compliance	RoHS compliant, CE certified
Application	Festo T-slot pneumatic cylinder piston position detection, automation signal feedback
