QS-1/4-6
Product Overview

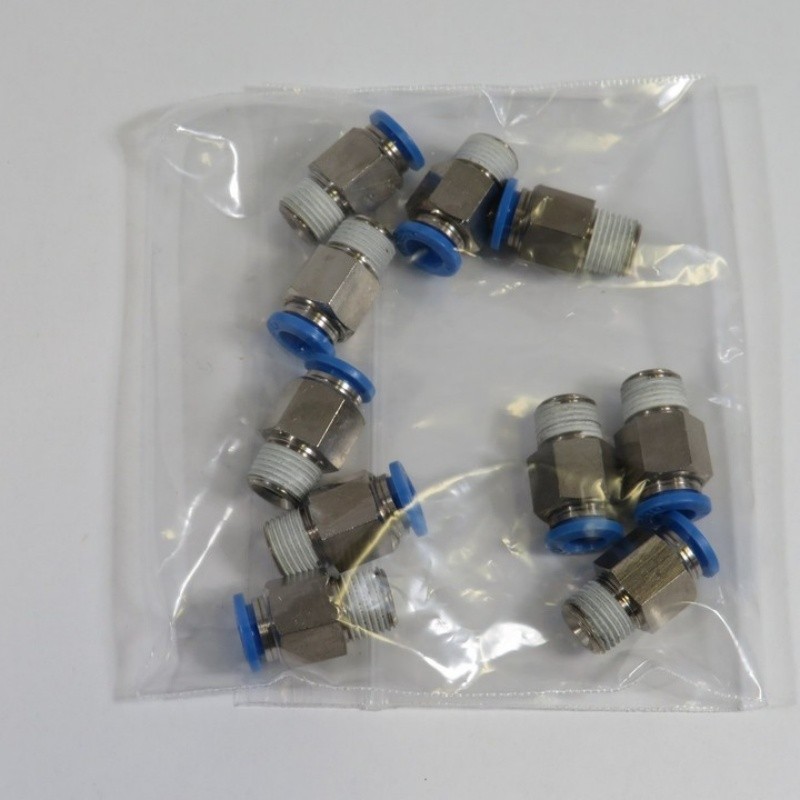

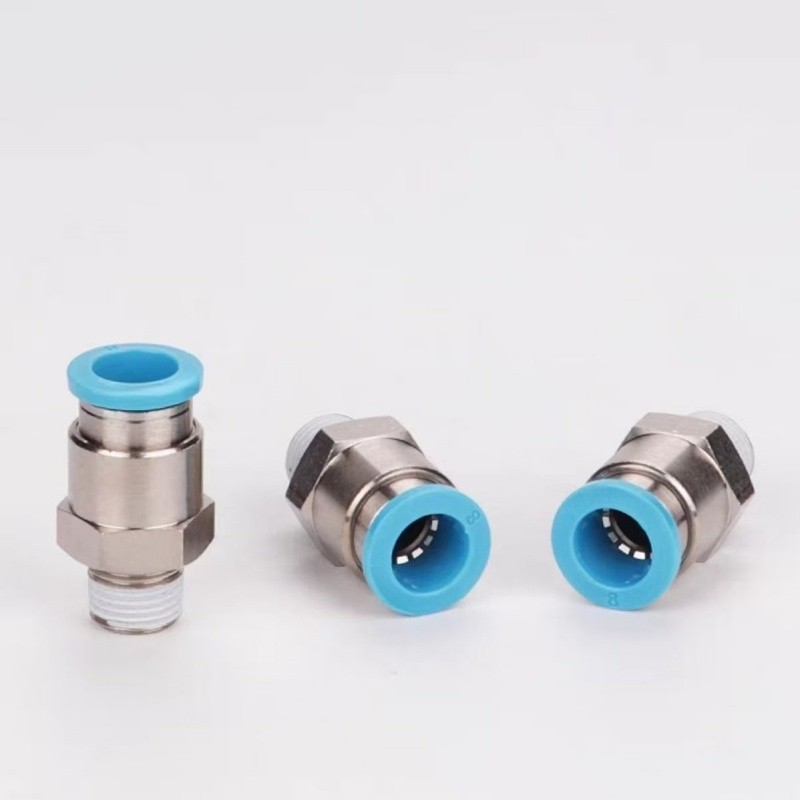

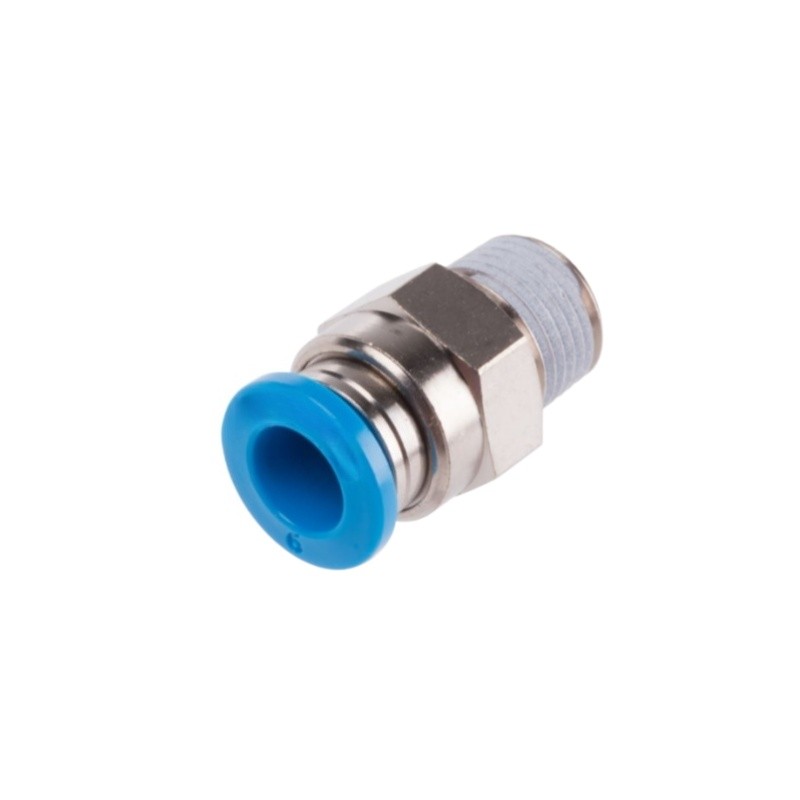

QS-1/4-6 (Part No.153036) is a straight push-in pneumatic fitting from Festo QS series. It adopts push-pull quick connection principle, one end with R1/4 male thread, the other end for 6mm OD pneumatic tube. Straight structure for simple inline pipeline connection. Constructed with PBT body, nickel-plated brass thread and NBR seal. Supports both compressed air and vacuum applications, LABS(PWIS) compliant, widely used for quick pipe connection in industrial pneumatic automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QS-1/4-6 |
| Part No. | 153036 |
| Product Type | Pneumatic Push-in Straight Fitting |
| Series | QS |
| Connection 1 | Male thread R1/4 |
| Connection 2 | Push-in for 6mm OD pneumatic tube |
| Shape | Straight |
| Nominal Width | 4.5 mm |
| Operating Pressure | -0.095 ~ 1.4 MPa |
| Operating Temperature | -10 ~ 80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 |
| Housing Material | PBT |
| Thread Material | Nickel-plated Brass |
| Release Ring | POM |
| Seal Material | NBR |
| Net Weight | 0.01 kg |
| Corrosion Resistance Class | CRC 1 |
| Feature | LABS(PWIS) compliant, push-pull quick connection |
| Application | Pneumatic pipeline connection, industrial automation |
| Certificate | RoHS Compliant |
