MF-L0608P141ZZZ
Product Details

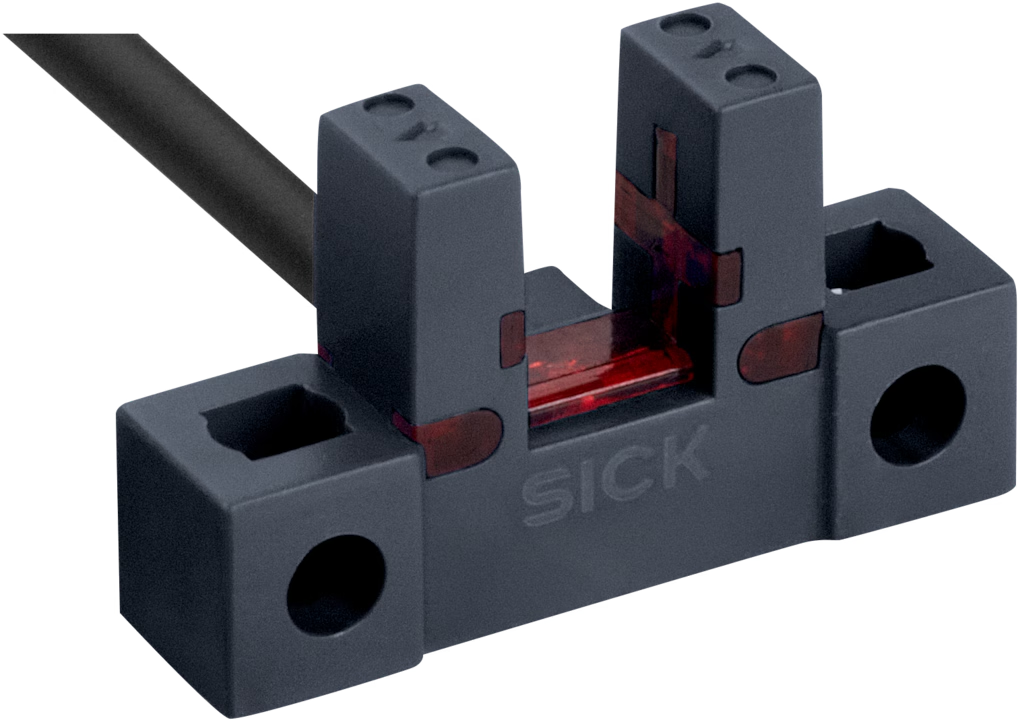

The SICK MF-L0608P141ZZZ is a brand-new original micro fork photoelectric sensor from the MF series. It is a compact through-beam slot sensor fitted with infrared LED light source. It comes with a 6 mm slot width and 8 mm fork depth, operating on 5–30 V DC power supply, and supports flexible detection modes with switchable Light-ON / Dark-ON PNP output. It achieves IP67 rating to protect against dust and moisture.
Made of high-performance ABS plastic housing, this small fork sensor is designed for installation in narrow spaces. It adopts a 2-meter 4-wire PVC cable for simple wiring and assembly. It features fast response speed for label edge recognition, high-speed counting and tiny object detection.
This sensor is widely deployed on packaging machinery and automated production lines. Every unit passes complete quality testing before shipment and holds CE certification. We supply genuine SICK sensors with MOQ of 1 piece and offer reliable global shipping services to meet your industrial automation needs.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | MF-L0608P141ZZZ |
| Product Name | Fork Photoelectric Sensor |
| Product Type | Micro Fork / Slot Photoelectric Sensor |
| Series | MF Series |
| Working Principle | Through-beam fork type |
| Light Source | Infrared LED |
| Housing Material | ABS Plastic |
| Shape | Fork / Slot type |
| Fork Size | Slot width 6 mm, Fork depth 8 mm |
| Dimension(W×H×D) | 26mm × 19.2mm ×13.65mm |
| Connection | 4-wire 2m PVC cable |
| Output Type | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | 5 … 30 V DC |
| IP Rating | IP67 |
| Ambient Temperature | -25℃ ~ +55℃ |
| Net Weight | 0.09 kg |
| Gross Weight | 0.14 kg |
| Origin | Germany |
| Condition | Brand New Original |
| Application | Label detection, high-speed counting, packaging machinery, tiny object detection |
| Certificate | CE |
| MOQ | 1 Piece |
