1463770 DSBC-50-300-E2-PPVA
Product Overview
Item No: 1463770 Model: DSBC-50-300-E2-PPVA Brand: Festo Type: ISO Standard Pneumatic Cylinder Standard: ISO 15552

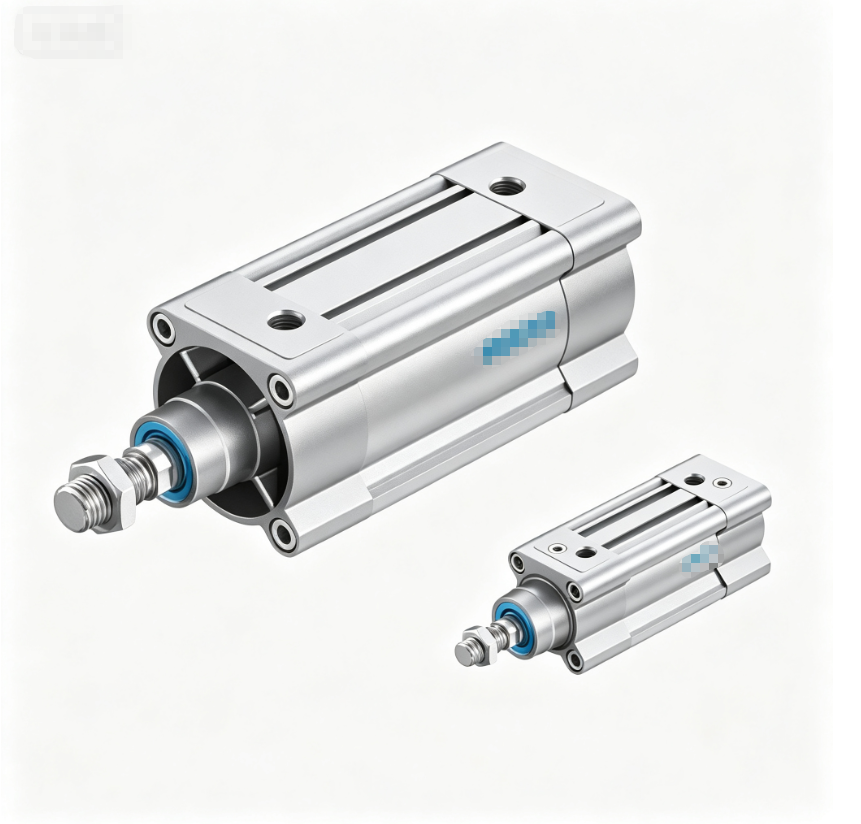

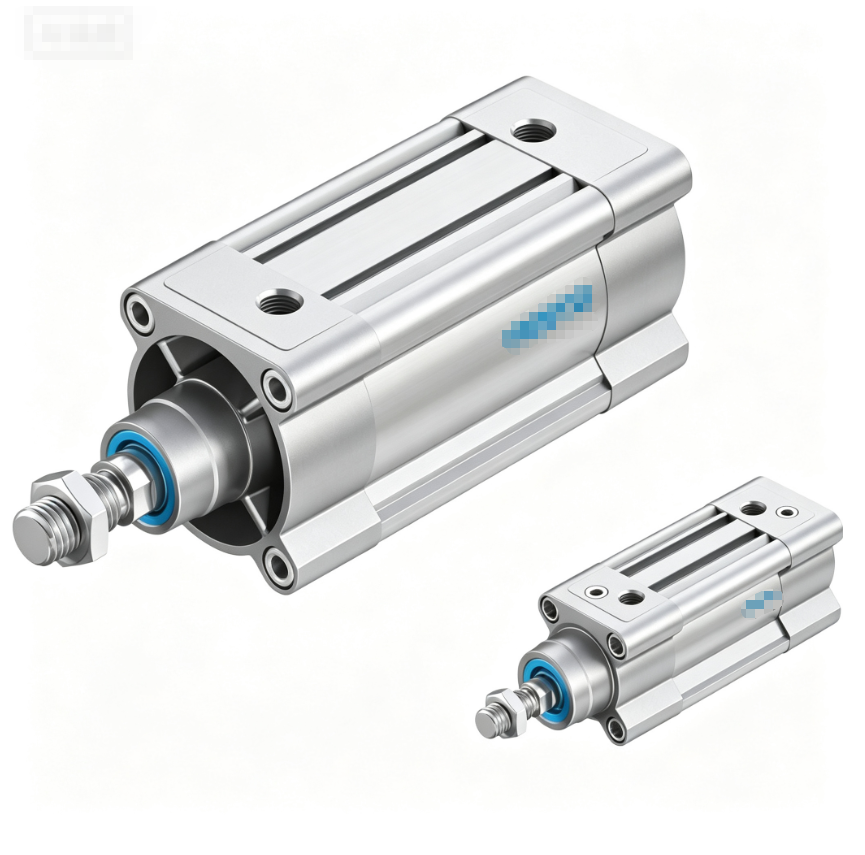

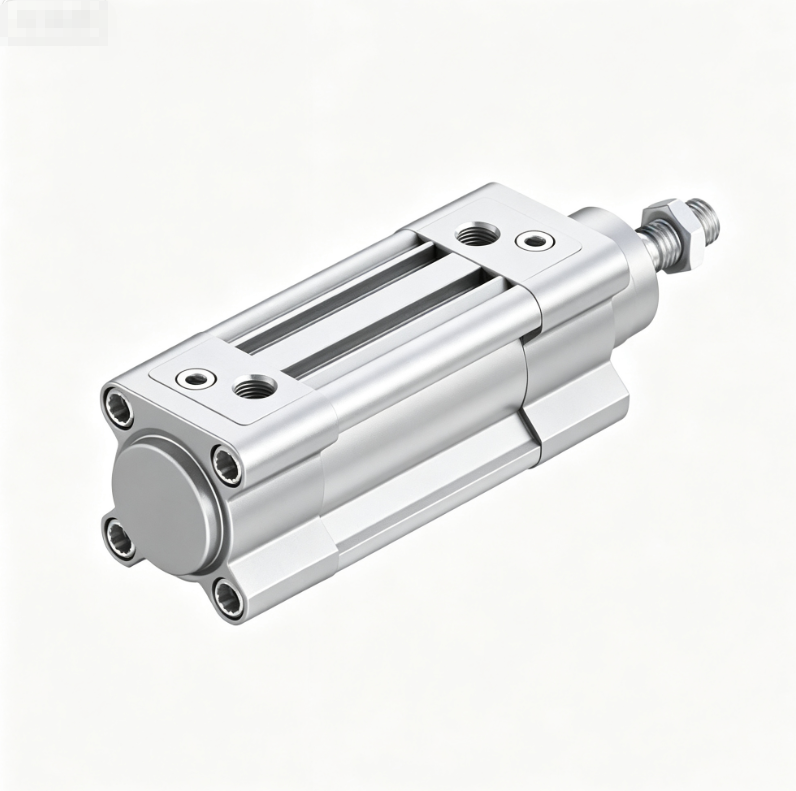

DSBC-50-300-E2-PPVA is a new original Festo DSBC series double acting standard cylinder, equipped with E2 end-position locking and PPVA adjustable pneumatic cushion at both ends. Bore 50mm, stroke 300mm. The locking function can keep the piston rod securely locked at end position to improve equipment safety. Profile aluminum barrel with sensor slots for proximity switch installation.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | DSBC-50-300-E2-PPVA |
| Part No. | 1463770 |
| Type | ISO Standard Pneumatic Cylinder |
| Bore | 50 mm |
| Stroke | 300 mm |
| Action | Double acting |
| Cushion | PPVA, adjustable pneumatic cushion at both ends |
| Feature | E2 End-position locking |
| Port Size | G1/4 |
| Piston Rod Thread | M16×1.5 |
| Working Pressure | 0.04 ~ 1.2 MPa (0.4 ~ 12 bar) |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -20 ~ +80 ℃ |
| Material | Aluminum alloy barrel, stainless steel piston rod, PUR seal |
| Standard | ISO 15552 |
| Mounting | Optional accessories, any mounting position |
| Condition | New Original |
