552792 CRDSNU-40-420-PPV
Product Overview
Item No: 552792 Model: CRDSNU-40-420-PPV Brand: Festo Type: Stainless Steel Round Cylinder Standard: ISO 6432

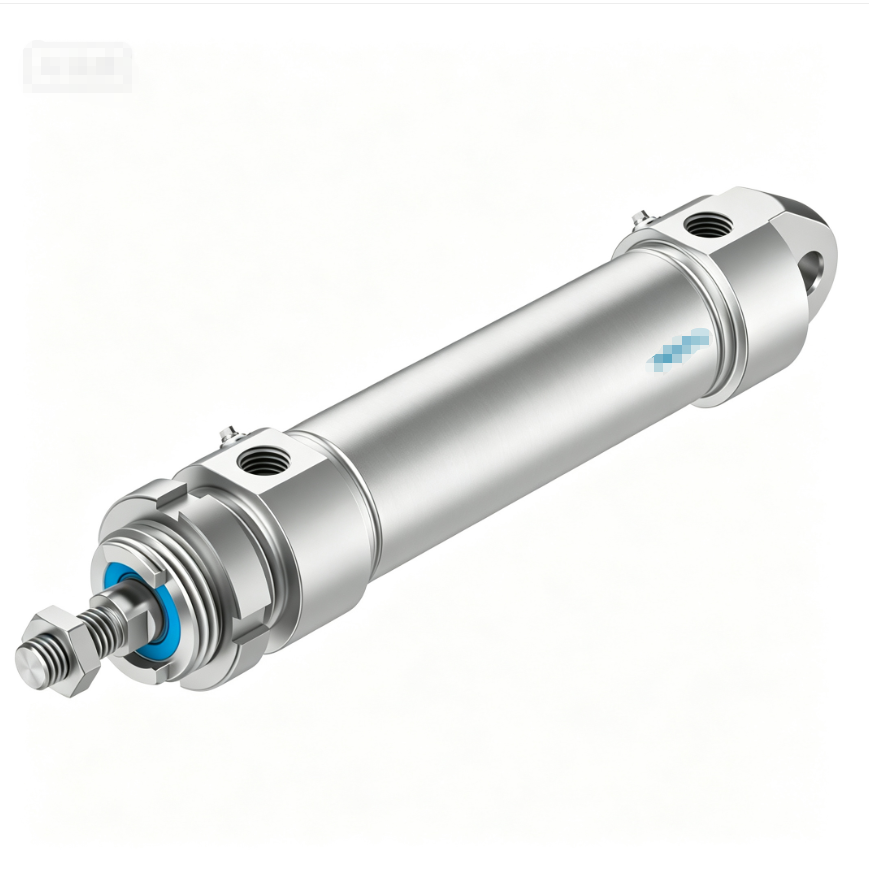

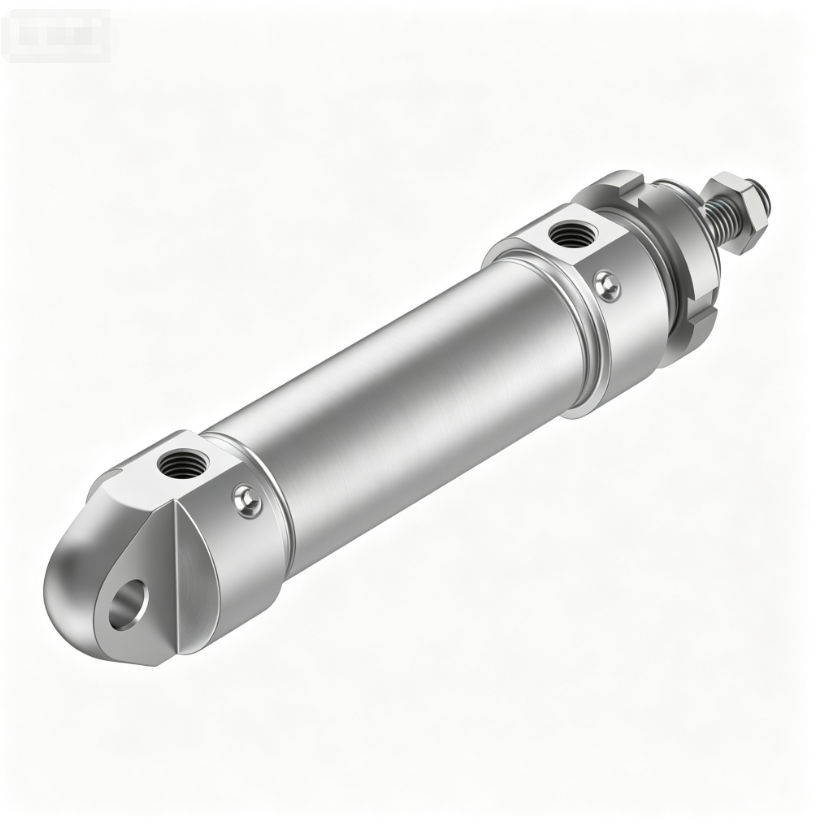

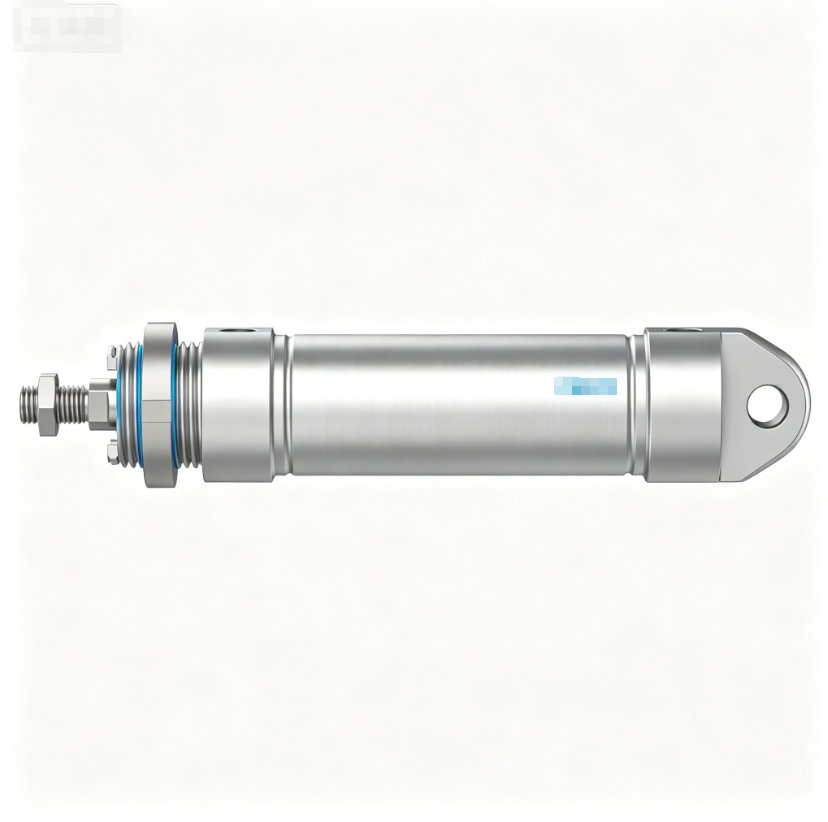

CRDSNU-40-420-PPV is a new original Festo double acting round cylinder with PPV adjustable pneumatic cushion on both ends. Bore 40mm, stroke 420mm, port size G1/4. The cylinder barrel and piston rod adopt high alloy stainless steel, featuring excellent corrosion resistance and easy-clean structure, which is ideal for hygienic working environments such as food and beverage industry.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | CRDSNU-40-420-PPV |
| Part No. | 552792 |
| Type | Round Cylinder / Stainless Steel Cylinder |
| Bore | 40 mm |
| Stroke | 420 mm |
| Action | Double acting |
| Cushion | PPV, adjustable pneumatic cushion at both ends |
| Port Size | G1/4 |
| Piston Rod Thread | M12×1.25 |
| Working Pressure | 0.1 ~ 1 MPa (1 ~ 10 bar) |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -20 ~ +80 ℃ |
| Material | High alloy stainless steel barrel & rod, PUR seal |
| Standard | ISO 6432 |
| Mounting | Optional accessories, any mounting position |
| Feature | Corrosion resistant, easy-clean design |
| Condition | New Original |
