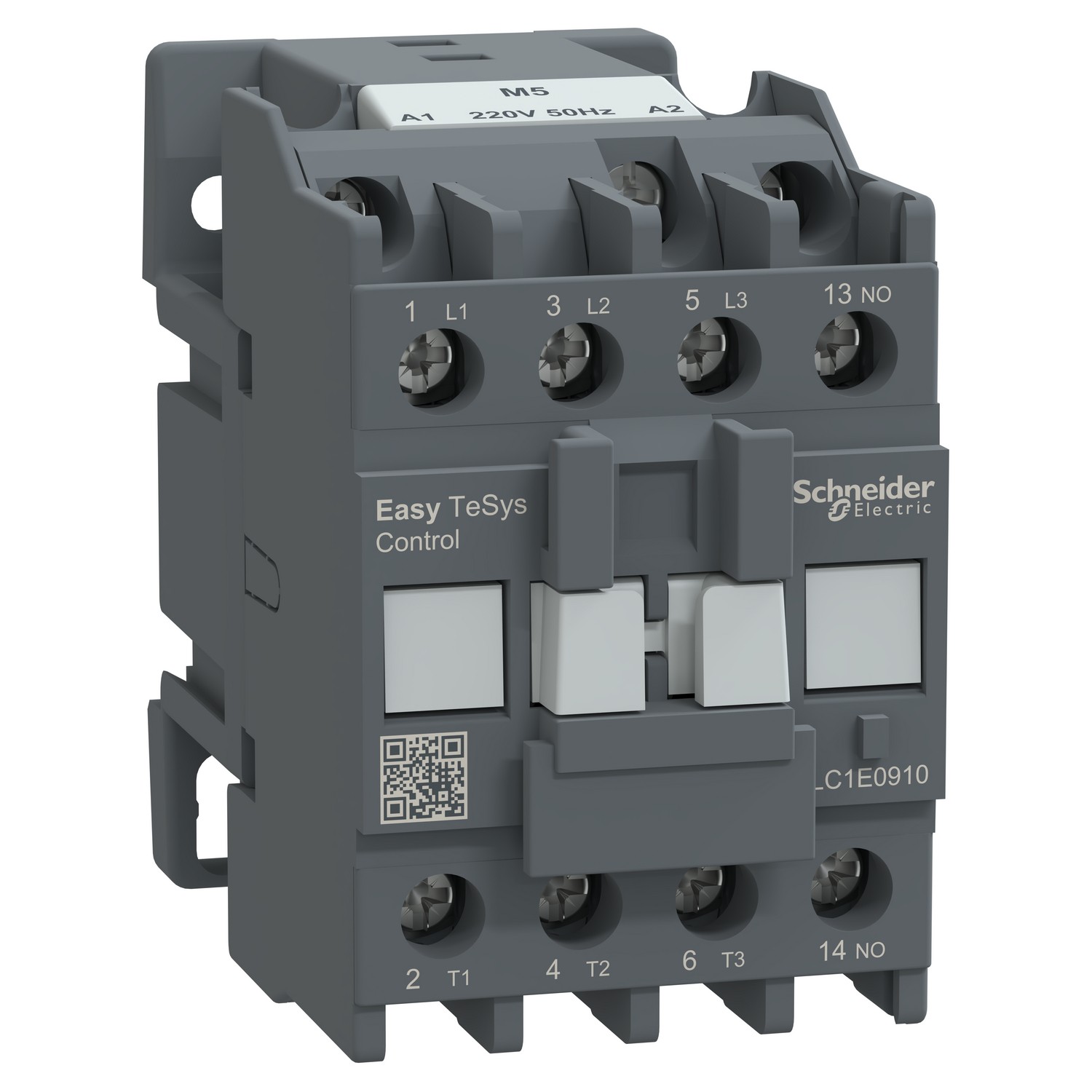

LC1N0910M5N
| Range | Easy TeSys |
|---|---|
| Range of product | Easy TeSys Control |
| Product or component type | Contactor |
| Device short name | LC1E |
| Contactor application | Motor control Resistive load |
| Utilisation category | AC-3 AC-3e AC-1 |
| Poles description | 3P |
| [Ue] rated operational voltage | Power circuit: <= 690 V AC 50/60 Hz |
| [Ie] rated operational current | 9 A (at <55 °C) at <= 440 V AC AC-3 for power circuit 9 A (at <55 °C) at <= 440 V AC AC-3e for power circuit 25 A (at <55 °C) at <= 440 V AC AC-1 for power circuit |
| [Uc] control circuit voltage | 220 V AC 50 Hz |
Motor power kW 2.2 kW at 220/230 V AC 50/60 Hz
4 kW at 380/400 V AC 50/60 Hz
4 kW at 415/440 V AC 50/60 Hz
4 kW at 500 V AC 50/60 Hz
4 kW at 660/690 V AC 50/60 Hz
5.5 kW at 660...690 V AC 50/60 HzPole contact composition 3 NO [Ith] conventional free air thermal current 25 A (at 55 °C) for power circuit Irms rated making capacity 117 A at 440 V AC for power circuit conforming to IEC 60947-4-1 Rated breaking capacity 76.5 A at 440 V for power circuit conforming to IEC 60947 [Icw] rated short-time withstand current 105 A 40 °C - 10 s for power circuit
61 A 40 °C - 60 s for power circuit
30 A 40 °C - 600 s for power circuitAssociated fuse rating 10 A gG at <= 690 V coordination type 1 for control circuit conforming to IEC 60947-5-1
20 A gG at <= 690 V coordination type 1 for power circuitAverage impedance 2.5 mOhm - Ith 25 A 50 Hz for power circuit Power dissipation per pole 0.2 W AC-3
1.6 W AC-1[Ui] rated insulation voltage 690 V conforming to IEC 60947-4-1 Overvoltage category III Pollution degree 3 [Uimp] rated impulse withstand voltage 6 kV coil not connected to the power circuit conforming to IEC 60947 Mechanical durability 10000000 cycles Electrical durability 1400000 cycles AC-3
150000 cycles AC-1Control circuit type AC at 50 Hz Control circuit voltage limits 0.85...1.1 Uc (-5…55 °C):operational 50 Hz
0.3...0.6 Uc (-5…55 °C):drop-out 50 HzInrush power in VA 95 VA 50 Hz cos phi 0.75 (at 20 °C)
95 VA 60 Hz cos phi 0.75 (at 20 °C)Hold-in power consumption in VA 8.3 VA 50 Hz cos phi 0.3 (at 20 °C)
8.5 VA 60 Hz cos phi 0.3 (at 20 °C)Heat dissipation 2…3 W for control circuit Operating time 12...22 ms on closing
4...19 ms on openingMaximum operating rate 1800 cyc/h 60 °C Connections - terminals Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end
Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible without cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end
Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end
Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable endTightening torque Power circuit: 1.2 N.m
Control circuit: 1.2 N.mAuxiliary contact composition 1 NO Minimum switching voltage 17 V for control circuit Minimum switching current 5 mA for control circuit Insulation resistance > 10 MOhm for control circuit Non-overlap time 1.5 ms on energisation guaranteed between NC and NO contact
1.5 ms on de-energisation guaranteed between NC and NO contactMounting support Plate
DIN rail
