KTM-LP557A2P 1109745
Product Overview

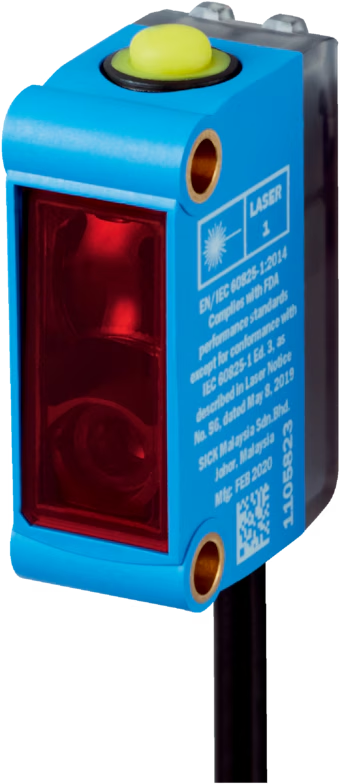

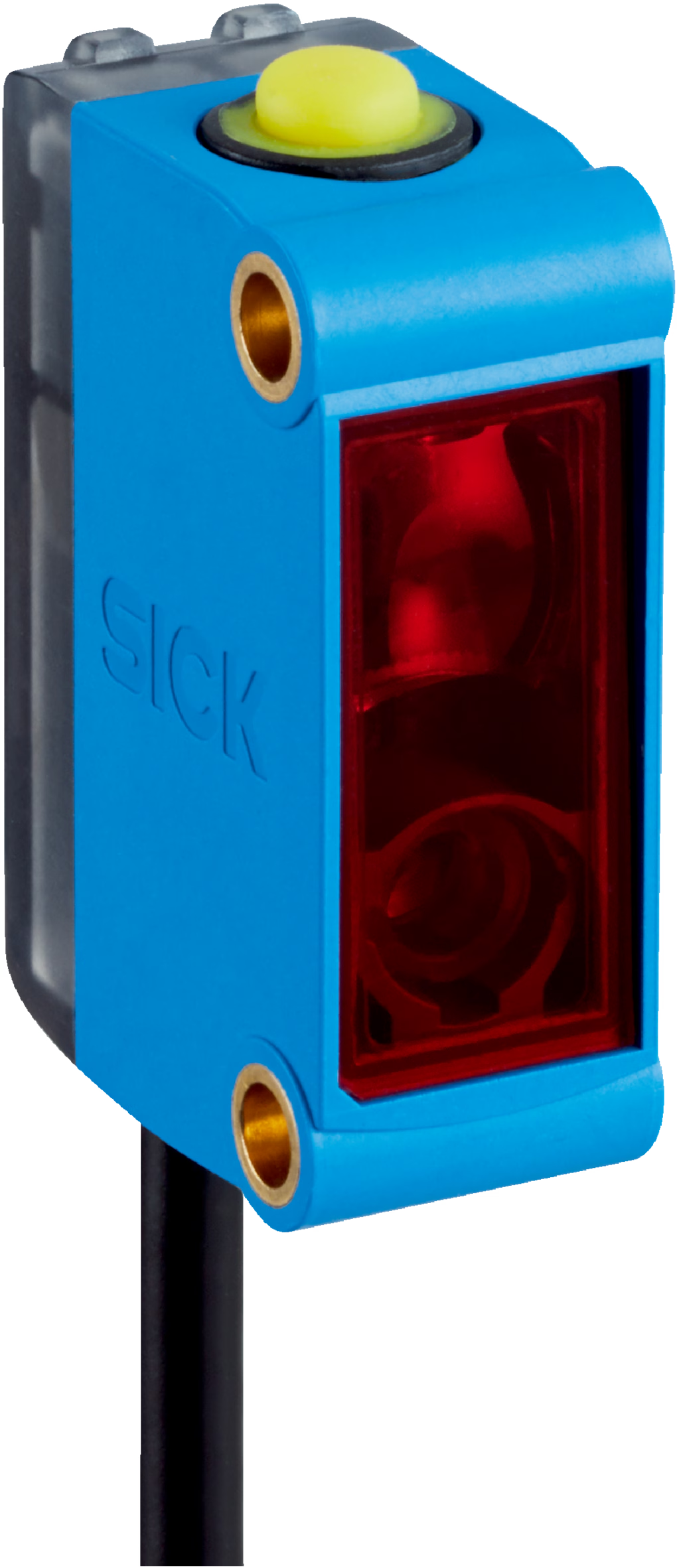

KTM-LP557A2P (1109745) is SICK KTM laser contrast sensor with IO-Link. Max sensing distance 250 mm, round laser spot Ø1.8 mm, single PNP output. It supports static & dynamic two-point teach-in. Compact plastic housing, IP67 protection, cable with M12 4-pin connector. Max web speed up to 10 m/s, suitable for detecting tiny contrast marks, glossy films and low-contrast print marks on packaging, printing and labeling machines. New original genuine.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Part No. | KTM-LP557A2P |
| SICK ID | 1109745 |
| Product Series | KTM |
| Product Type | Contrast Sensor / Register Sensor |
| Sensing Distance | ≤250 mm |
| Sensing Tolerance | ±30 mm |
| Light Source | Red Laser, 680 nm, Laser Class 1 |
| Spot Size | Ø 1.8 mm @ 250 mm |
| Dimension | 12 mm × 31.5 mm × 21 mm |
| Switching Frequency | 1.5 kHz |
| Max Web Speed | 10 m/s |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Output Type | PNP |
| Output Channel | 1 |
| Interface | IO-Link |
| Protection Class | IP67 |
| Connection | Cable with M12, 4-pin male connector |
| Housing Material | Plastic |
| Teach Mode | Static / Dynamic 2-point teach-in |
| Operating Temp | -10 ℃ ~ +55 ℃ |
| Origin | Germany |
| Warranty | 1 Year |
| Certificate | RoHS, UL |
| Net Weight | 0.06 kg |
| Gross Weight | 0.08 kg |
