RS10-M111 1060116
Product Overview

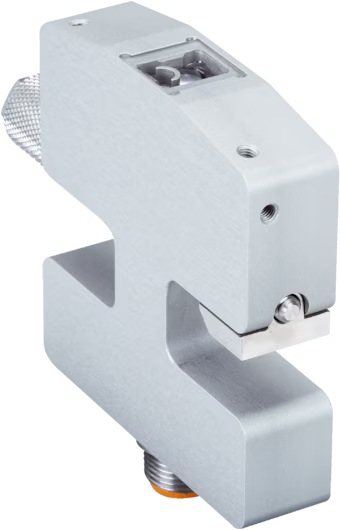

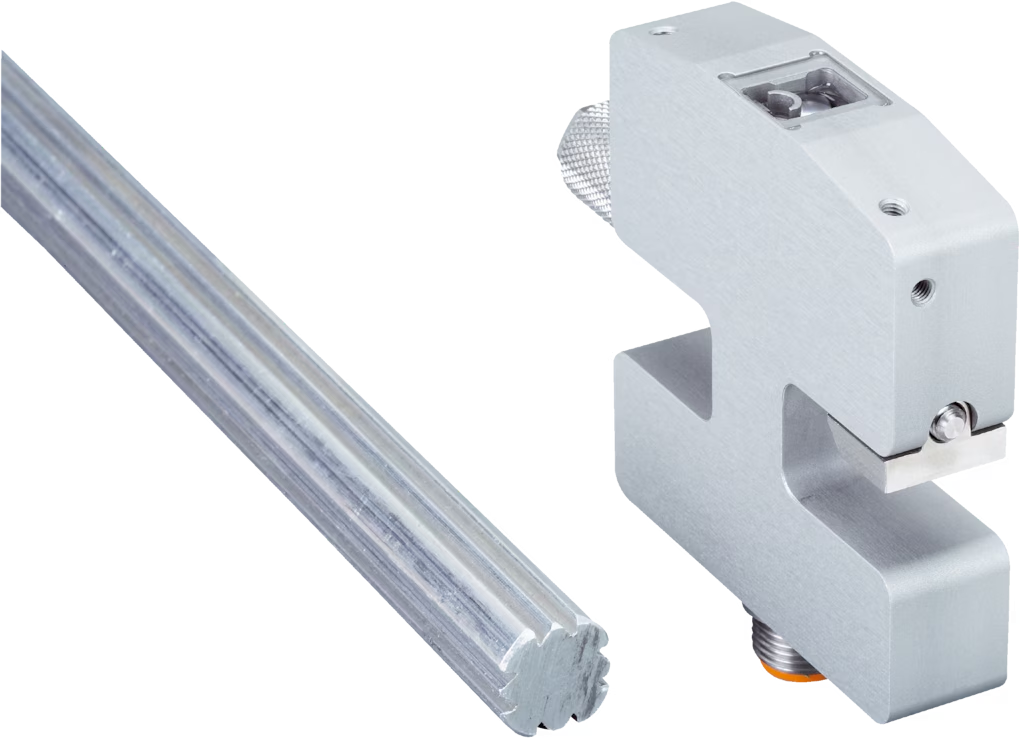

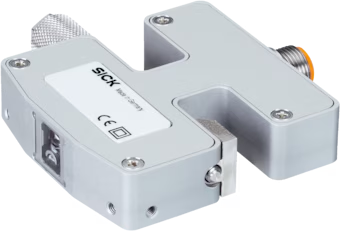

RS10-M111 (1060116) is SICK RS10 high-precision white light contrast register sensor. 13 mm sensing distance, light spot 0.8×3 mm, single push-pull PNP/NPN output. It supports individual threshold setting for up to 18 different color marks, easy teach-in via button. Anodized aluminum housing, IP67 protection, M12 8-pin connector. Ultra-fast response time 20 µs, ideal for low-contrast print mark and register control on high-speed printing, packaging and labeling machines. New original genuine.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Part No. | RS10-M111 |
| SICK ID | 1060116 |
| Product Series | RS10 |
| Product Type | Contrast Sensor / Register Sensor |
| Sensing Distance | 13 mm |
| Sensing Tolerance | ±1 mm |
| Light Source | White LED |
| Spot Size | 0.8 mm × 3 mm |
| Dimension | 15 mm × 62 mm × 60 mm |
| Response Time | 20 µs |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Output Type | Push-pull, PNP/NPN |
| Output Channel | 1 |
| Interface | No IO-Link |
| Protection Class | IP67 |
| Connection | M12, 8-pin male connector |
| Housing Material | Anodized aluminum |
| Teach Mode | Button teach-in |
| Operating Temp | -10 ℃ ~ +60 ℃ |
| Origin | Germany |
| Warranty | 1 Year |
| Certificate | RoHS, UL |
| Net Weight | 0.40 kg |
| Gross Weight | 0.45 kg |
