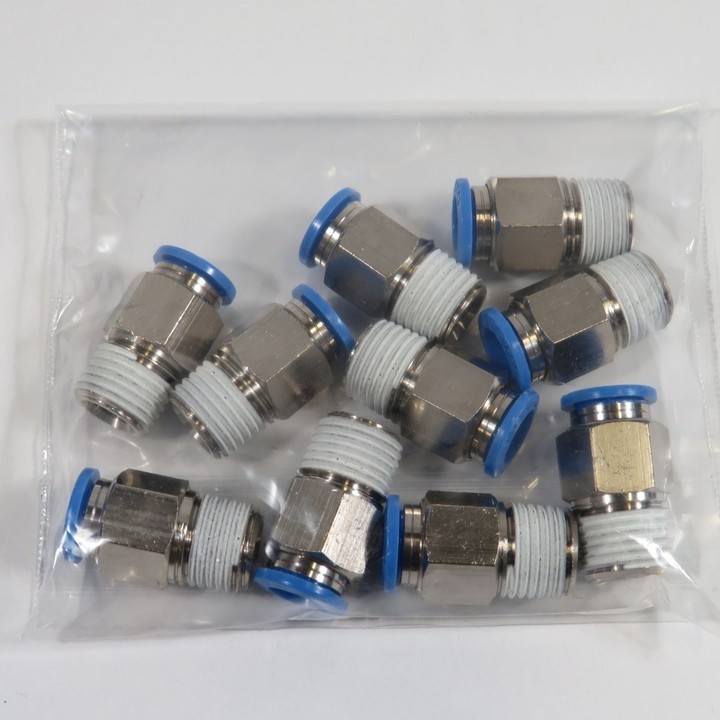

QS-1/4-8
Product Description
Festo QS-1/4-8 (PN:153053) is QS series male thread straight push-in fitting. One side is G1/4 male thread to screw onto valve, cylinder or manifold; the other side is push-in port for 8mm OD plastic air tube.
No tools required for tube insertion and removal. Suitable for both compressed air and vacuum circuits. Compact lightweight PA body with NBR sealing ring ensures reliable air tightness. Commonly used for connecting tubing to directional valves, cylinders and air service units in automation equipment.
| Item | Specification |
|---|---|
| Brand | Festo |
| Model | QS-1/4-8 |
| Part Number | 153053 |
| Type | Push-in Straight Connector |
| Series | QS |
| Connection | G1/4 male thread, push-in for 8mm OD tube |
| Operating Pressure | -0.95 ~1.0 MPa |
| Medium | Compressed air, vacuum, inert gas |
| Ambient Temp | -10 ~ +60 ℃ |
| Weight | 4.30 g |
| Material | PA housing, NBR seal |
| Corrosion Class | CRC1 |
| Standard | LABS, RoHS |
