QSF-3/8-10-B
Product Overview

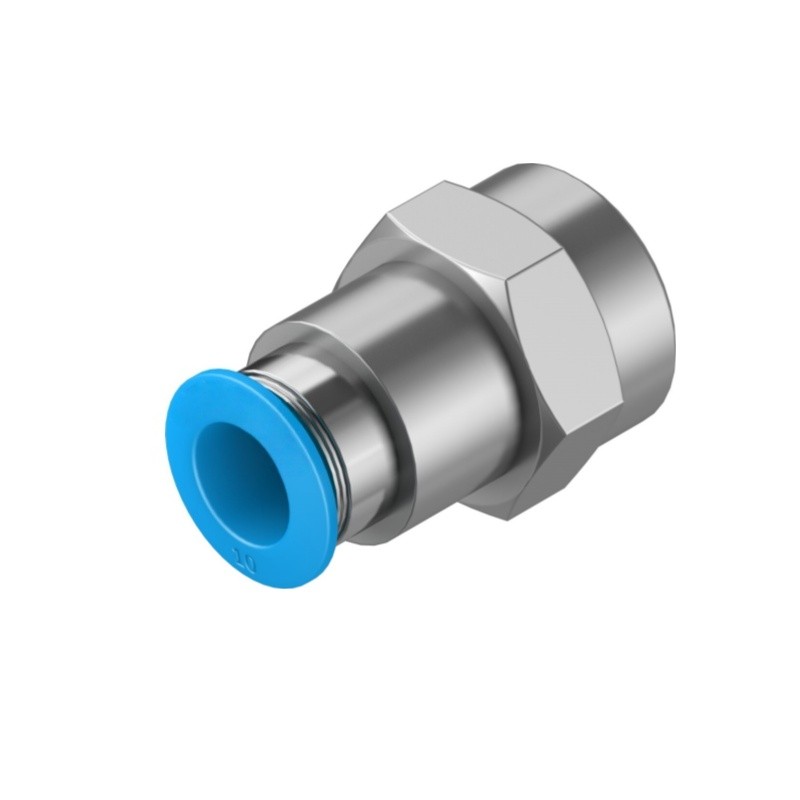

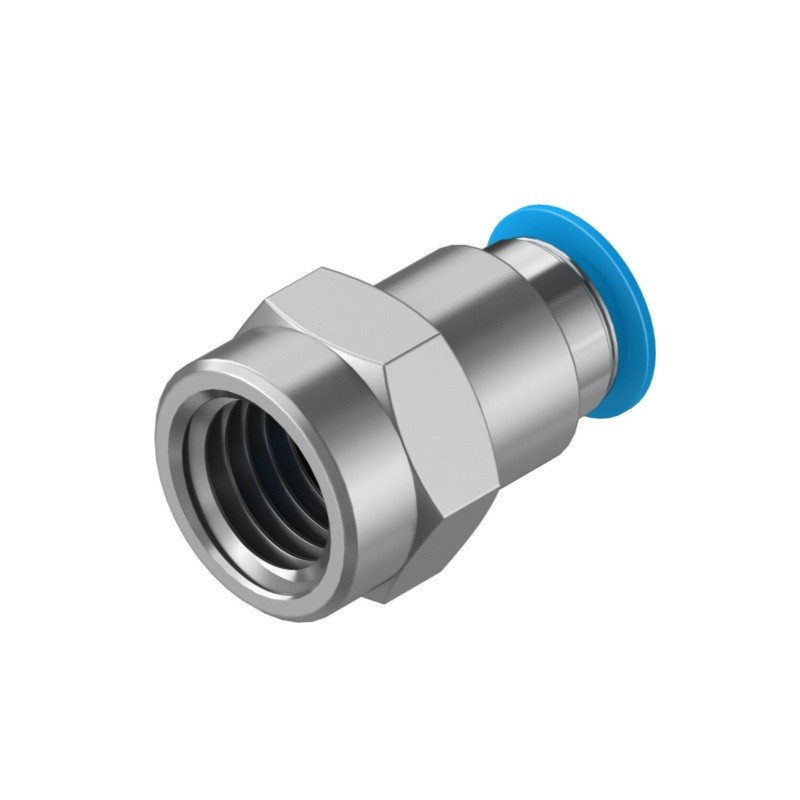

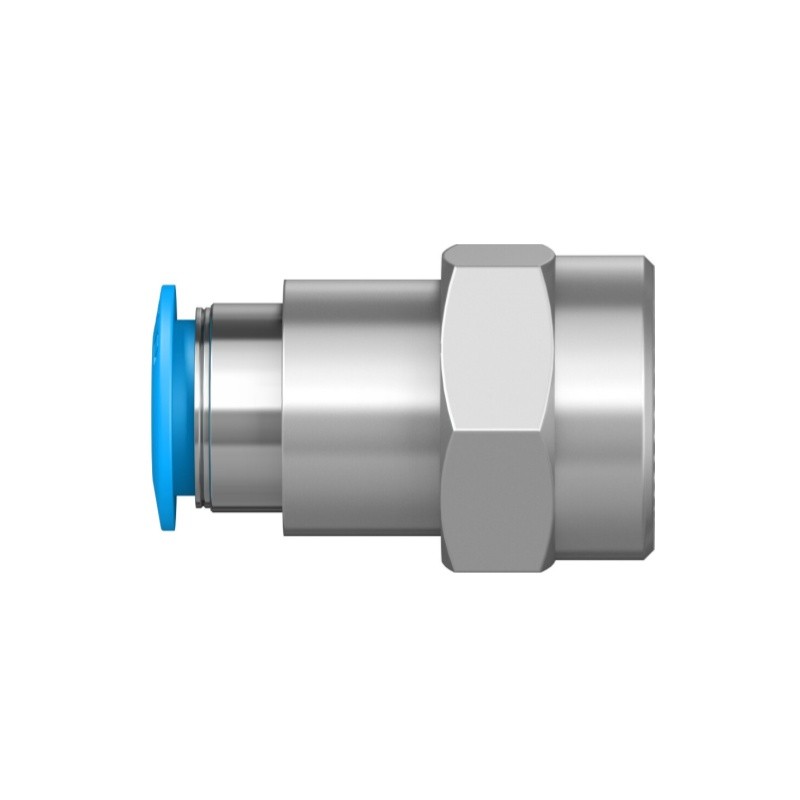

QSF-3/8-10-B, Part No.153090, belongs to Festo QS series push-in fitting. One side is G3/8 internal parallel thread, the other side is quick insert port for 10mm outer diameter pneumatic tube. With blue release ring design, tube can be inserted directly and pulled out by pressing the release ring without tools. It is used to connect pneumatic components with external thread ports and pneumatic tubes, widely used in medium flow pneumatic circuits of automation equipment.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSF-3/8-10-B |
| Part No. | 153090 |
| Type | Straight push-in fitting, female thread |
| Thread | G3/8 internal parallel thread |
| Tube OD | 10 mm |
| Nominal bore | 7.5 mm |
| Working medium | Compressed air |
| Working pressure | -0.95 ~14 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Body:PBT,Stud:Nickel-plated brass,Release ring:POM,Seal:NBR,Tube retainer:High-alloy stainless steel |
| Weight | 17.00 g |
| Package | 10 pcs/pack |
| Feature | Push-pull quick connection, straight female thread type, tool-free tube assembly and removal, blue release ring |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
