6ES7361-3CA01-0AA0

Attribute Name	Value
Brand	Siemens
Model	6ES7361-3CA01-0AA0
Series	SIMATIC S7-300, IM361 Interface Module
Type	PLC Interface Module
Function	Receiver module for S7-300 expansion rack, receive signal from IM360
Rack	S7-300 slave expansion rack
Max. Extension Distance	5m (with IM360)
Power Supply	DC24V
Backplane Bus Current Consumption	Max 0.8A
Mounting	DIN rail, S7-300 backplane
Origin	Germany
Warranty	1 year
Condition	New Original
Net Weight	0.28kg
Gross Weight	0.45kg

INQUIRY

Product Details

Product Tags

Product Overview

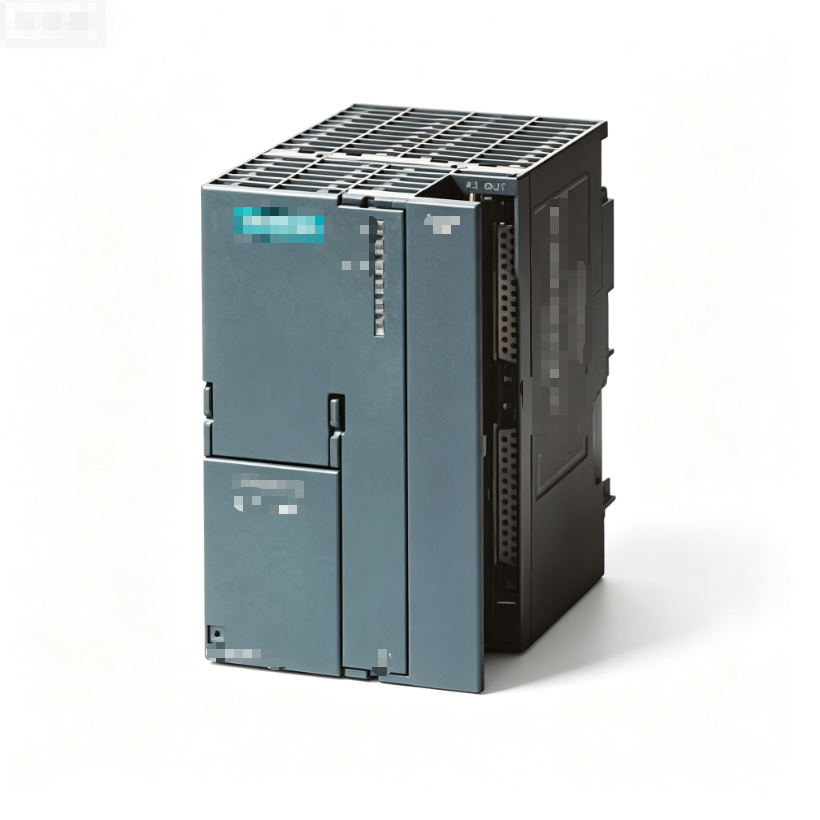

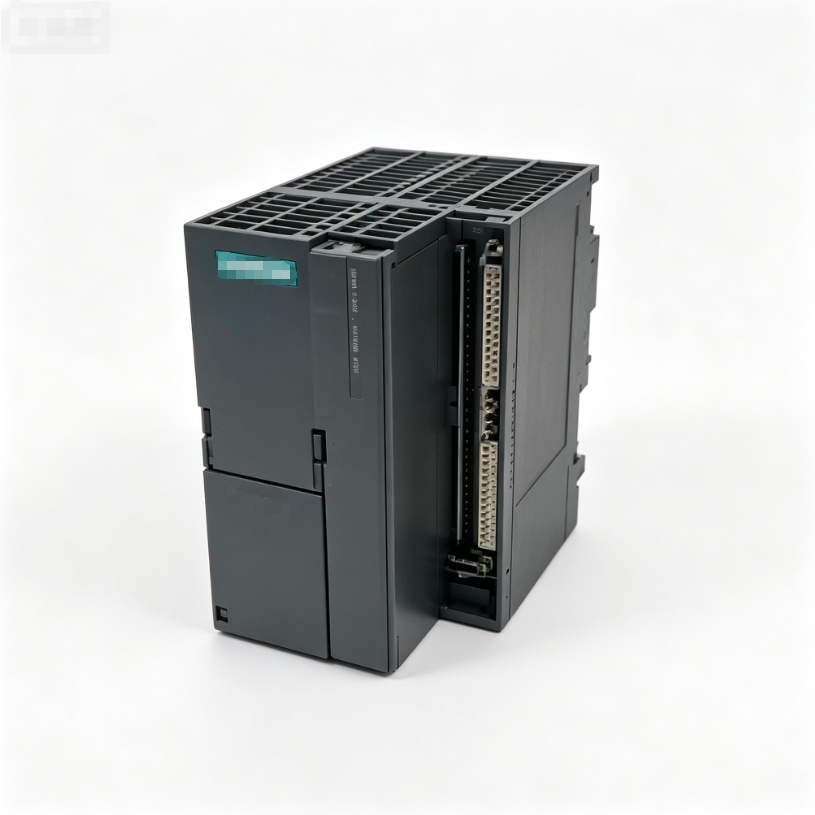

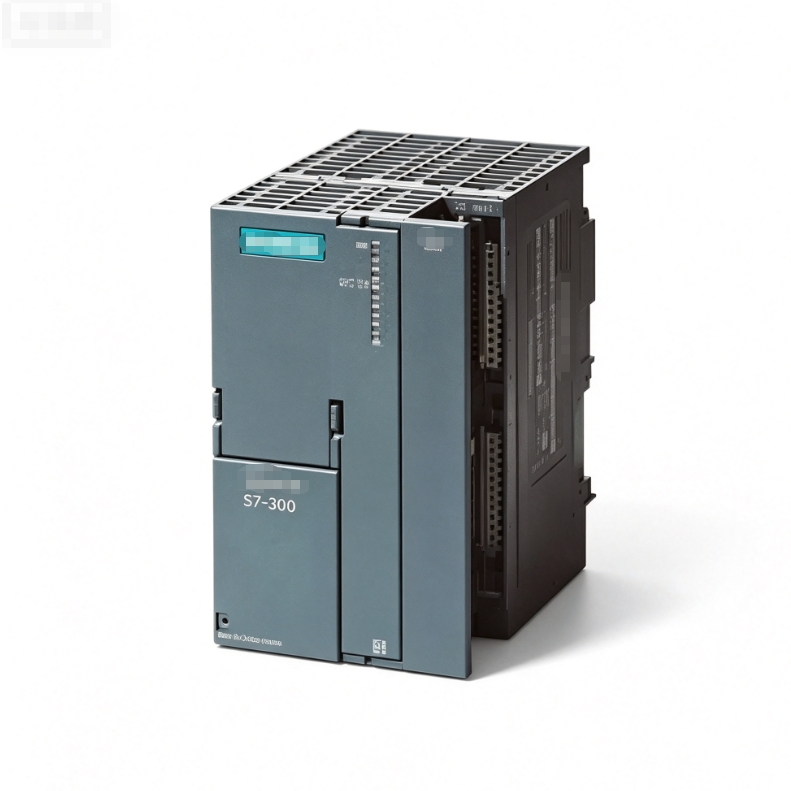

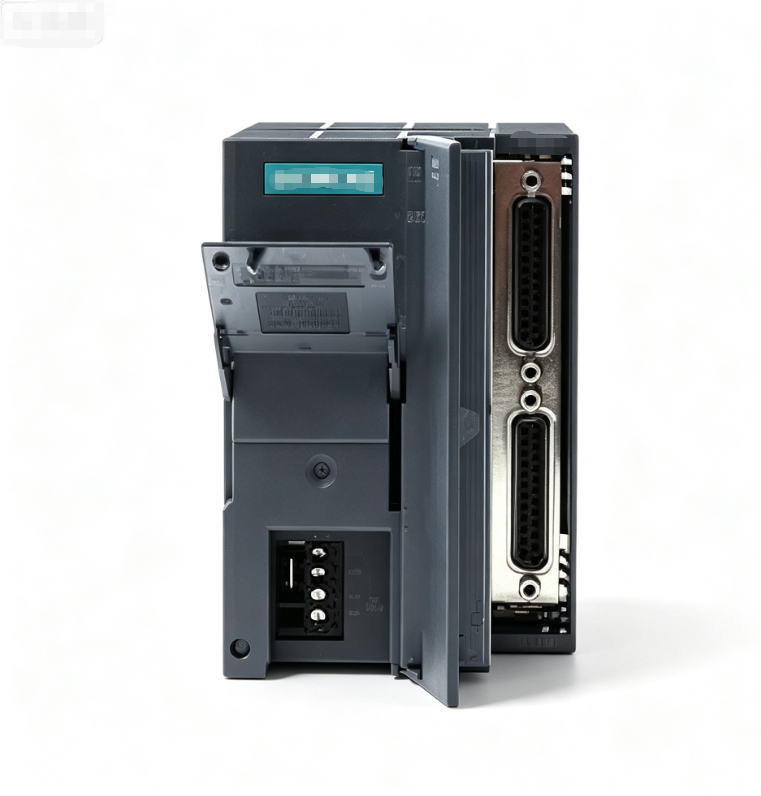

Siemens 6ES7361-3CA01-0AA0 is IM361 interface module for SIMATIC S7-300 PLC system. It serves as the receiving module for S7-300 slave expansion rack, matched with IM360 transmitting module. The maximum expansion distance reaches 5 meters. Powered by DC24V, max backplane bus current consumption 0.8A, installed on standard S7-300 DIN rail rack. It enables S7-300 PLC system to expand more IO modules via multi-rack structure, widely used for automation project PLC capacity expansion.

Attribute Name	Value
Brand	Siemens
Model	6ES7361-3CA01-0AA0
Series	SIMATIC S7-300, IM361 Interface Module
Type	PLC Interface Module
Function	Receiver module for S7-300 expansion rack, receive signal from IM360
Rack	S7-300 slave expansion rack
Max. Extension Distance	5m (with IM360)
Power Supply	DC24V
Backplane Bus Current Consumption	Max 0.8A
Mounting	DIN rail, S7-300 backplane
Origin	Germany
Warranty	1 year
Condition	New Original
Net Weight	0.28kg
Gross Weight	0.45kg
