6ES7332-5NF0-0AB0

Attribute Name	Value
Brand	Siemens
Model	6ES7332-5HF00-0AB0
Series	SIMATIC S7-300, SM332 Analog Output Module
Type	PLC Analog Output Module
I/O Spec	8AO, 12bit Resolution, Isolated
Output Signal	Voltage: ±10V,0~10V,1~5V; Current: ±20mA,0~20mA,4~20mA
Settling Time	0.5~3.3ms
Connector	40-pole Front Connector
Power Supply	DC24V
Mounting	DIN rail, S7-300 backplane
Origin	Germany
Warranty	1 year
Condition	New Original
Net Weight	0.30kg
Gross Weight	0.50kg

INQUIRY

Product Details

Product Tags

Product Overview

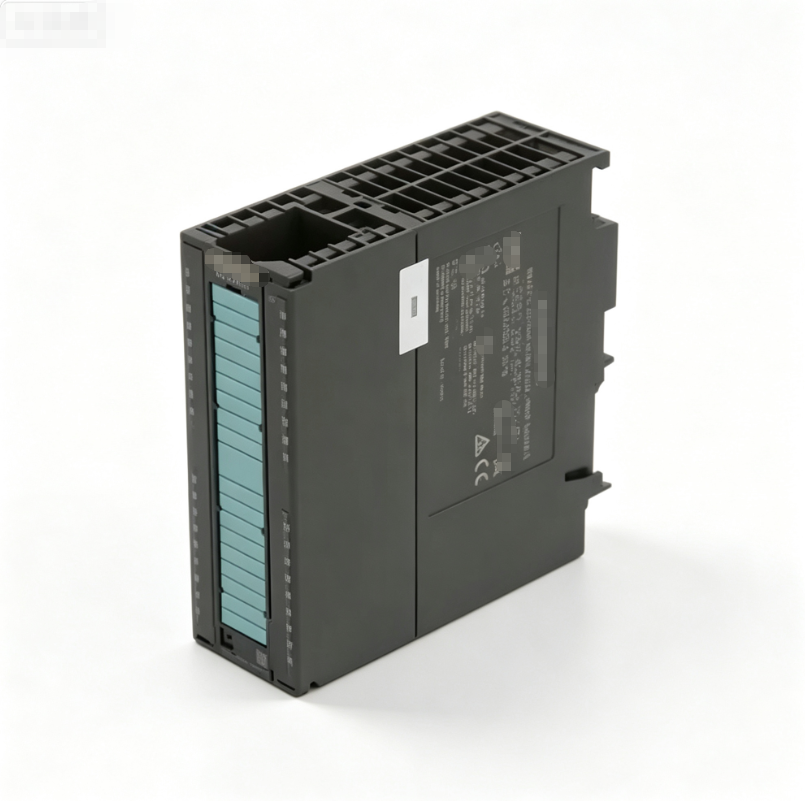

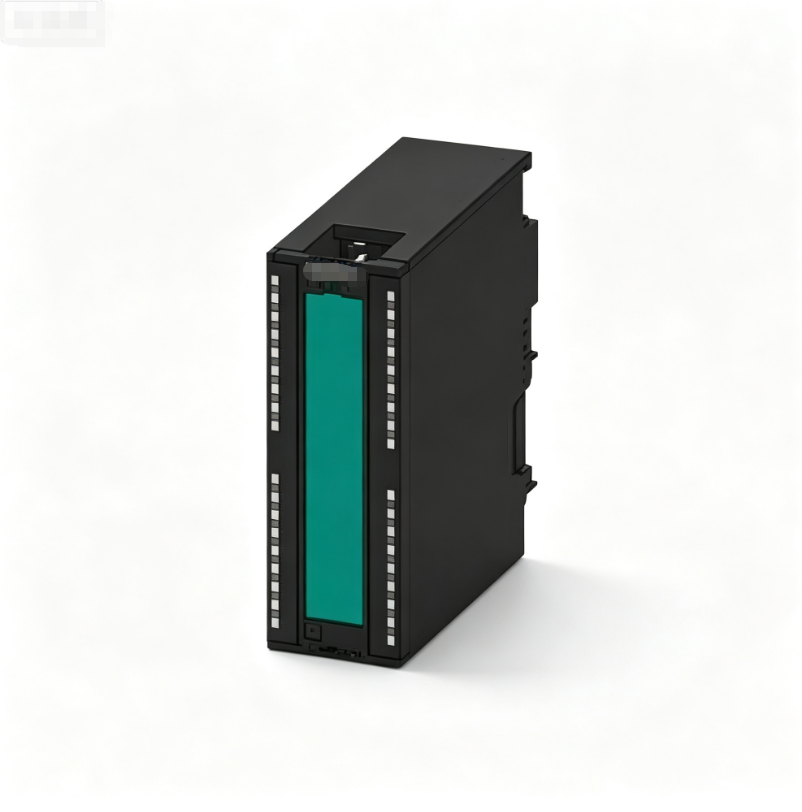

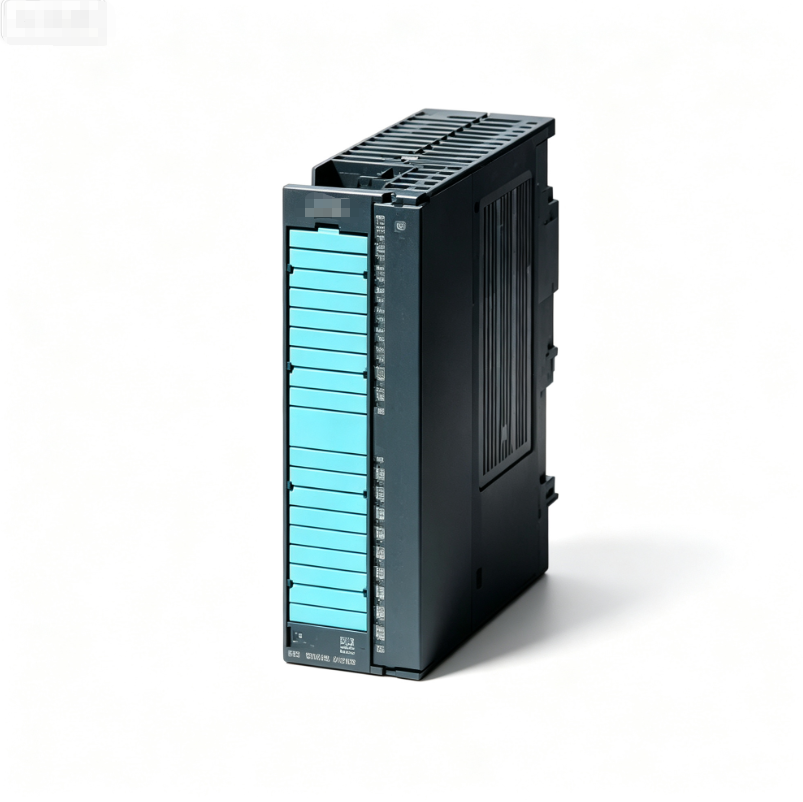

Siemens 6ES7332-5HF00-0AB0 is SM332 analog output module for SIMATIC S7-300 PLC system. It is an isolated 8-channel analog output module with 12-bit resolution. This module supports multiple output signal ranges including voltage and 4~20mA current for actuators and control valves. Settling time 0.5~3.3ms, equipped with 40-pole front connector, powered by DC24V, mounted on S7-300 backplane DIN rail. Widely used for control valve, inverter and actuator analog signal output in factory automation.

Attribute Name	Value
Brand	Siemens
Model	6ES7332-5HF00-0AB0
Series	SIMATIC S7-300, SM332 Analog Output Module
Type	PLC Analog Output Module
I/O Spec	8AO, 12bit Resolution, Isolated
Output Signal	Voltage: ±10V,0~10V,1~5V; Current: ±20mA,0~20mA,4~20mA
Settling Time	0.5~3.3ms
Connector	40-pole Front Connector
Power Supply	DC24V
Mounting	DIN rail, S7-300 backplane
Origin	Germany
Warranty	1 year
Condition	New Original
Net Weight	0.30kg
Gross Weight	0.50kg
