MS6-EM1-1/2-S

属性 Key	属性 Value
Brand	Festo
Model	MS6-EM1-1/2-S
Part No.	541268
Product Type	Manual On-off Valve
Series	MS Series
Valve Function	3/2 Way Bistable
Port Size	G1/2
Operating Pressure	0 ~ 18 bar
Nominal Flow	8700 L/min
Medium	Compressed Air / Inert Gas
Housing Material	Die-cast Aluminium
Seal Material	TPE-U(PU)
Ambient Temperature	-10 ~ +60℃
Weight	0.66 kg
Feature	With integrated silencer
Condition	New Original
Application	Pneumatic service unit, air preparation system

Product Details

Product Tags

Product Overview

Item No: 541268 Model: MS6-EM1-1/2-S Brand: Festo Type: 3/2-Way Bistable Manual On-off Valve, MS6 Service Unit Series

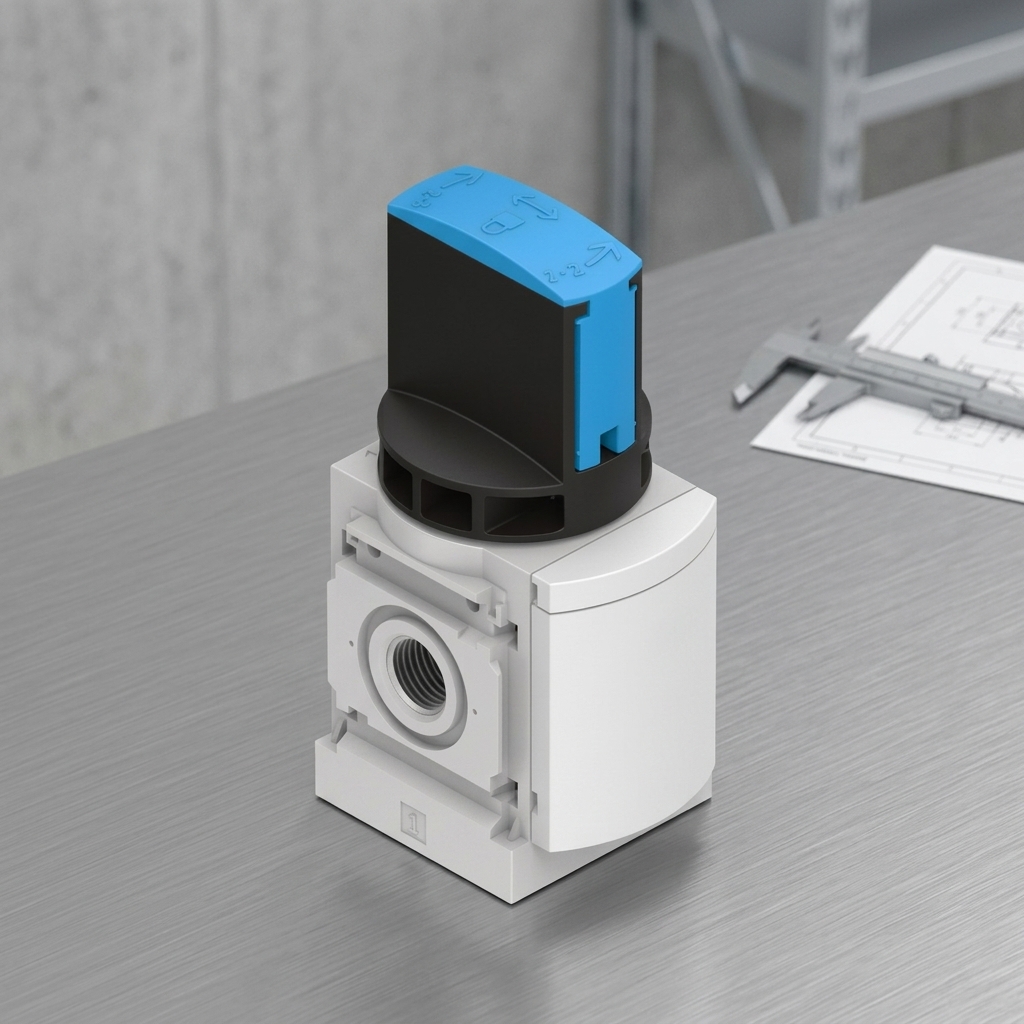

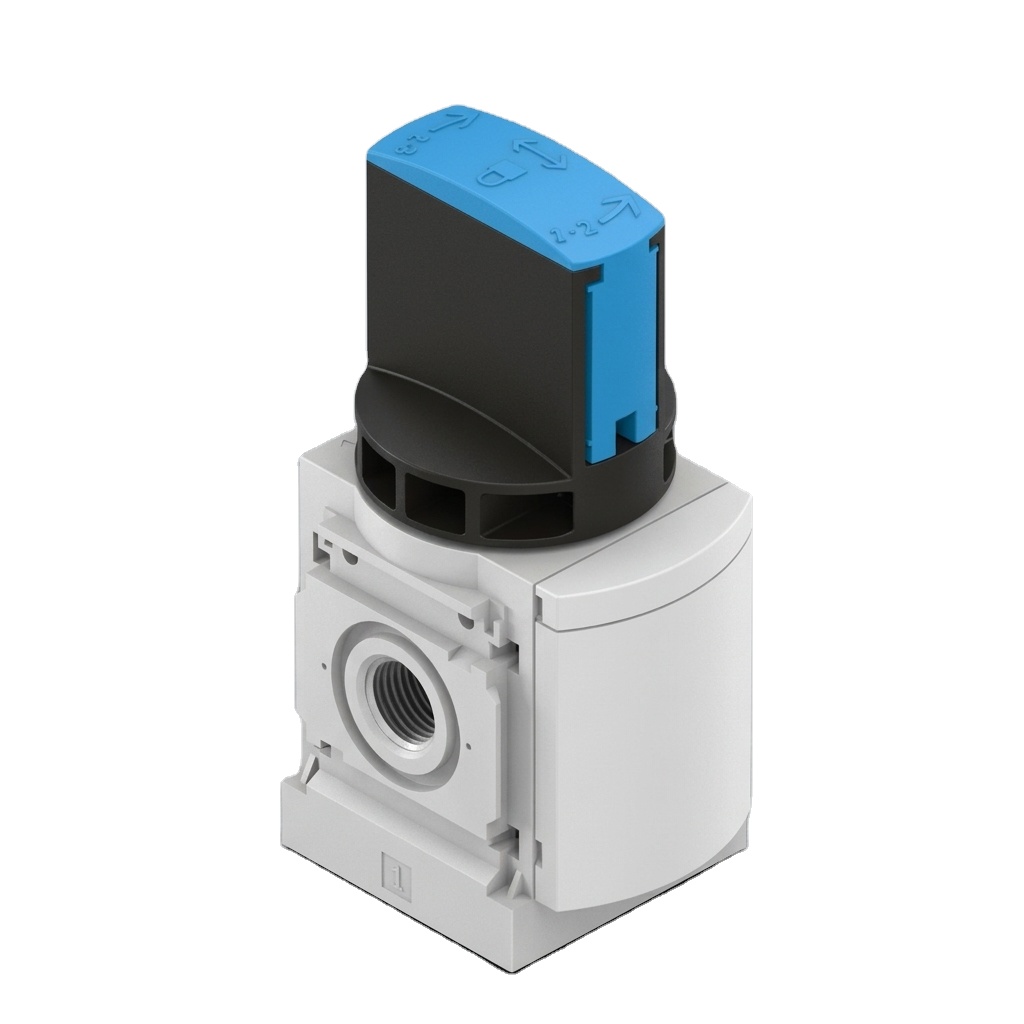

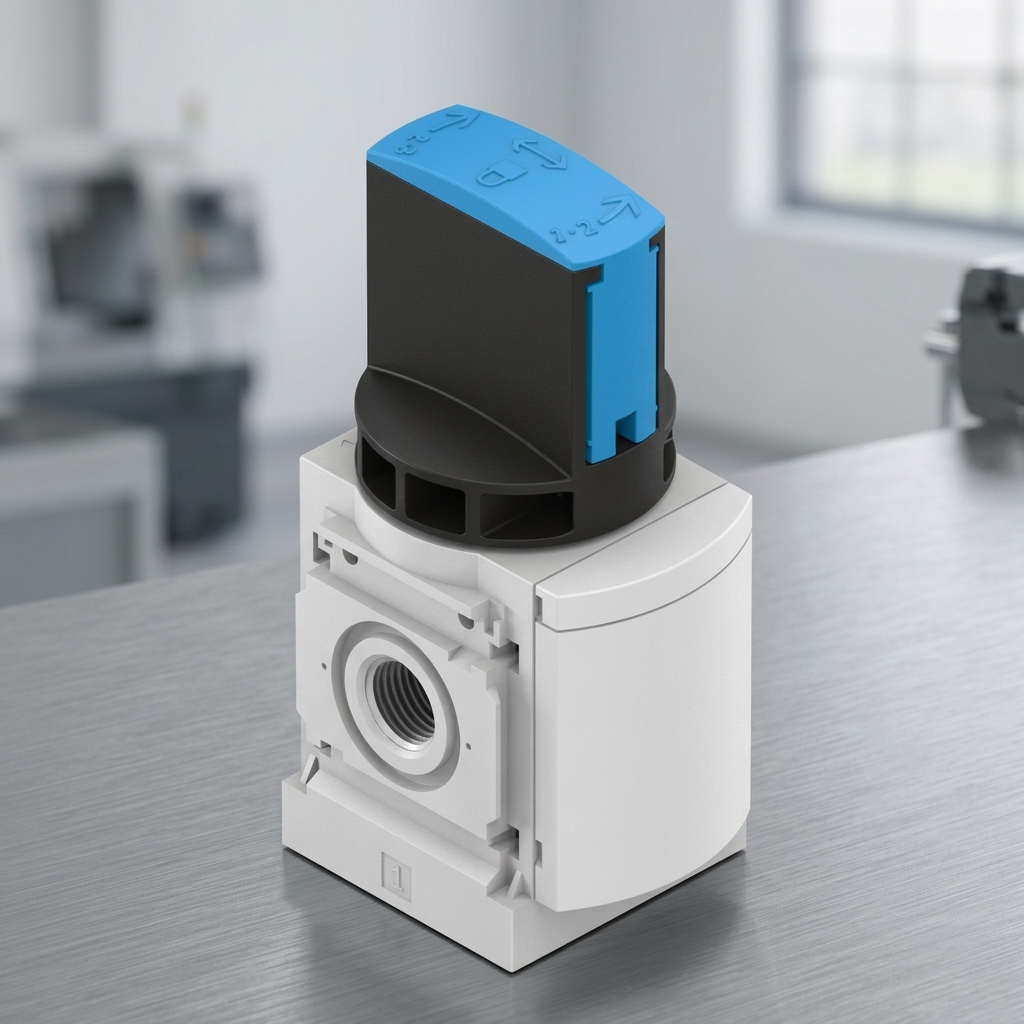

Festo MS6-EM1-1/2-S manual shut-off valve, part number 541268, is a high-performance rotary slide valve designed for MS6 modular air service units. Featuring 3/2-way bistable functional design, it enables stable manual switch and air circuit isolation for pneumatic systems. Equipped with standard G1/2 pneumatic port, the valve delivers an impressive nominal flow rate of 8700 l/min, meeting high-flow pneumatic system operation demands. The integrated silencer realizes silent exhaust without additional ducting, optimizing on-site working environment. Made of robust die-cast aluminium housing and wear-resistant TPE-U(PU) sealing materials, it ensures excellent durability and tight sealing. It works stably within 0~18 bar pressure range, compatible with standard filtered compressed air and inert gas. Supporting flexible inline installation and optional mounting positions, it is an essential safety and control component for industrial automation air preparation systems, used for equipment maintenance isolation and emergency air source cut-off.

属性 Key属性 Value
BrandFesto
ModelMS6-EM1-1/2-S
Part No.541268
Product TypeManual On-off Valve
SeriesMS Series
Valve Function3/2 Way Bistable
Port SizeG1/2
Operating Pressure0 ~ 18 bar
Nominal Flow8700 L/min
MediumCompressed Air / Inert Gas
Housing MaterialDie-cast Aluminium
Seal MaterialTPE-U(PU)
Ambient Temperature-10 ~ +60℃
Weight0.66 kg
FeatureWith integrated silencer
ConditionNew Original
ApplicationPneumatic service unit, air preparation system
