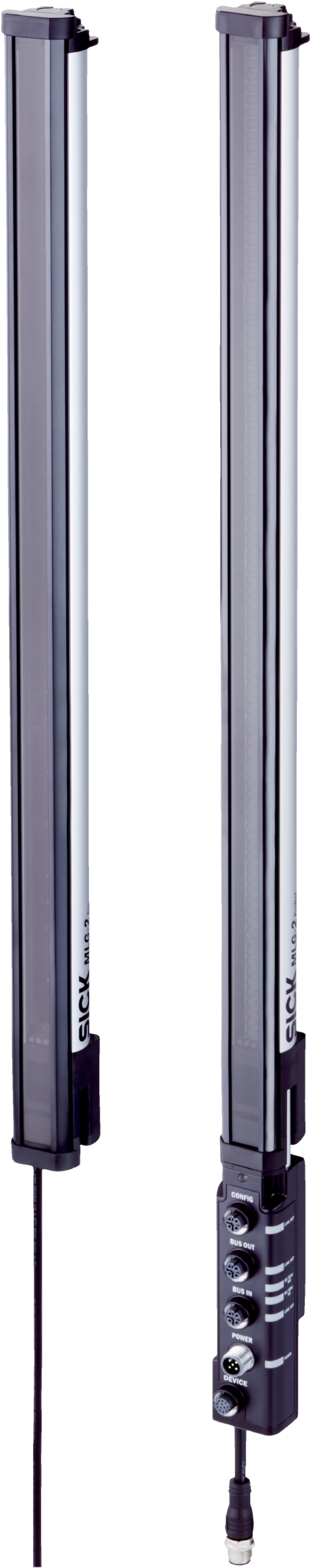

MLG05W-0400H12503 1129338

属性名	属性值
Brand	SICK
Model	MLG05W-0400H12503
Part No.	1129338
Series	MLG-2 WebChecker
Product Name	Measuring Automation Light Grid
Beam Spacing	5 mm
Measuring Width	595 mm
Resolution	0.1 mm
Accuracy	±0.3 mm
Interface	EtherNet/IP
Connection	M12 5-pin, M12 12-pin
Protection Class	IP65,IP67
Operating Voltage	DC 19.2 V ~ 28.8 V
Housing Material	Aluminum
Front Window	PMMA
Light Source	Infrared LED, 850 nm
Operating Temp	-25℃ ~ +55℃
Dimension(W×D×H)	34 mm × 30.6 mm × 679.4 mm
Net Weig

INQUIRY

Product Details

Product Tags

Product Overview

New Original SICK MLG05W-0400H12503 Measuring Light Grid, Part No.1129338. This MLG-2 WebChecker series light grid adopts infrared optical measurement principle, 5mm beam separation, 595mm measuring width, 0.1mm high resolution with EtherNet/IP fieldbus signal. Equipped with aluminum housing and separate sender & receiver, protection grade IP65/IP67. Wide temperature range -30~+55℃, anti-vibration and shock resistance. It is widely used for web edge detection, web width measurement and contour inspection in automation equipment.

属性名	属性值
Brand	SICK
Model	MLG05W-0400H12503
Part No.	1129338
Series	MLG-2 WebChecker
Product Type	Measuring Automation Light Grid
Beam Separation	5 mm
Measuring Width	595 mm
Resolution	0.1 mm
Repeat Accuracy	6 µm
Accuracy	±0.3 mm
Communication Interface	EtherNet/IP
Sensing Range	0.2 ~ 2.5 m（Max 3.5 m）
Light Source	Infrared LED
Protection Class	IP65 / IP67
Housing Material	Aluminum Alloy
Operating Temperature	-30 ℃ ~ +55 ℃
Connector	M12 5-pin / M12 12-pin
Number of Beams	120
Minimum Object Length	4 mm
Condition	New Original
Application	Web Edge Detection, Web Width Measurement, Contour Inspection
