CPV10-GE-FB-8
Product Overview

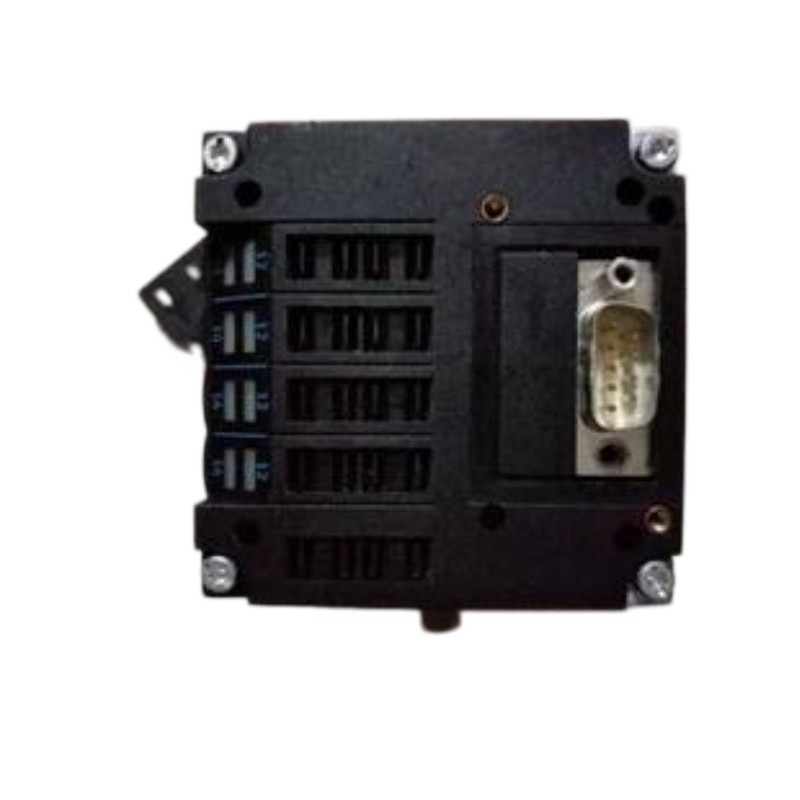

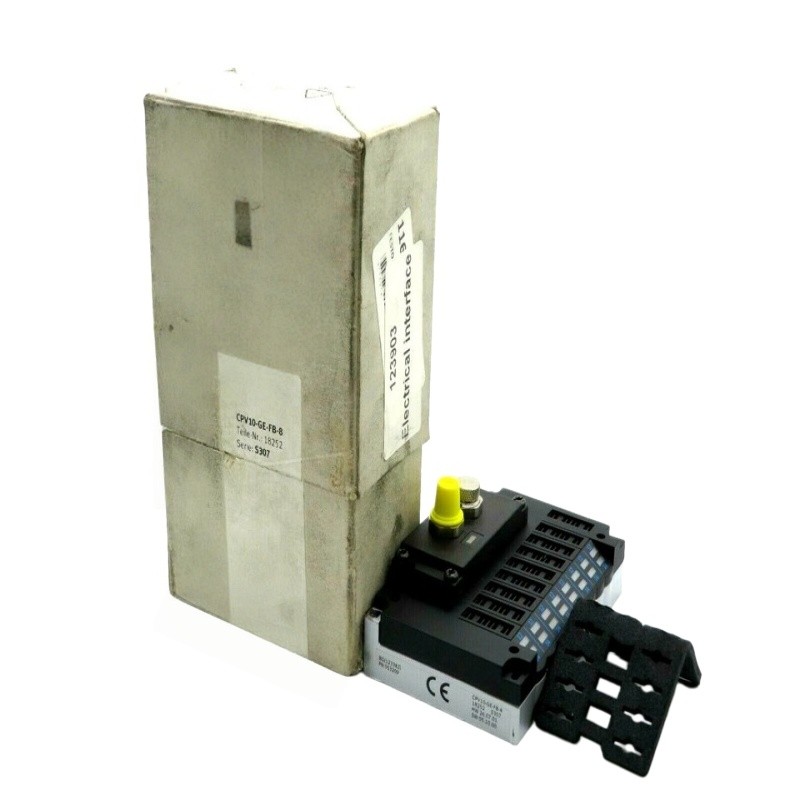

CPV10-GE-FB-8 (Part No.18255) is Festo CPV10 compact valve terminal fieldbus node, supports up to 8 valve positions. FB fieldbus interface enables direct communication with PLC system, 24VDC power supply, IP65 protection rating. Modular design, easy to add or replace individual valve slices, DIN 35mm rail mounting or wall mounting. Integrated air supply and exhaust channels, compact structure, widely used for fieldbus-based pneumatic automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | CPV10-GE-FB-8 |
| Part No. | 18255 |
| Product Type | Pneumatic Valve Terminal Fieldbus Node / Bus Interface Module |
| Series | CPV10 |
| Valve Positions | 8 valve positions |
| Communication Type | Fieldbus FB |
| Supply Voltage | 24 V DC |
| Pneumatic Operating Pressure | -0.9 ~ 10 bar |
| Piloting Pressure | 3 ~ 8 bar |
| Protection Class | IP65 |
| Mounting | DIN rail 35mm / wall mounting |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -5 ~ +50 ℃ |
| Housing Material | Reinforced PBT plastic, aluminium manifold |
| Seal Material | NBR |
| CRC Corrosion Class | CRC1 |
| LABS Compliance | VDMA24364-B1/B2-L |
| Net Weight | 0.140 kg |
| Gross Weight | 0.20 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Modular valve terminal, fieldbus pneumatic control, automation assembly, handling equipment |
