CRDNGS-63-PPV-A
Product Overview

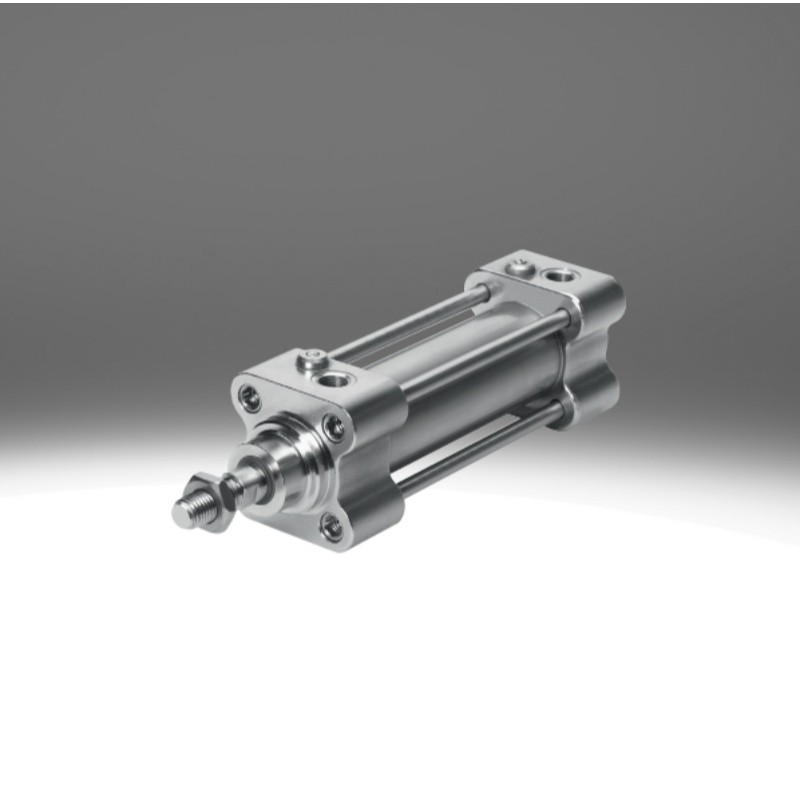

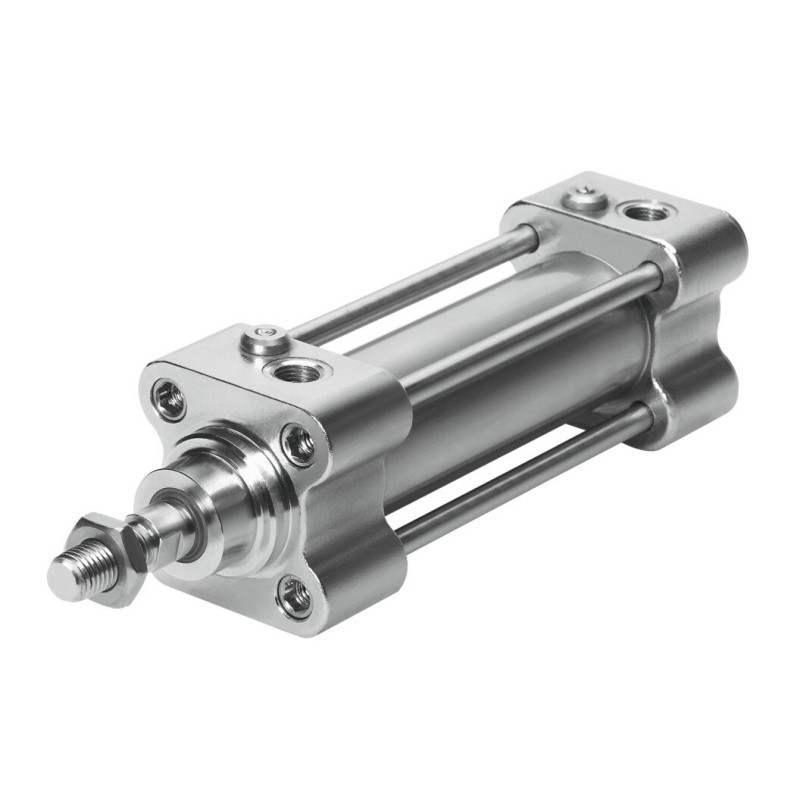

New Original FESTO CRDNGS-63-PPV-A belongs to CRDNGS series ISO15552 stainless steel pneumatic cylinder. Double acting design, piston bore 63mm, M16×1.5 piston rod thread, stroke range 10~2000mm. Equipped with swivel flange for flexible installation. PPV adjustable pneumatic cushion at both ends to achieve smooth movement, pneumatic port G3/8. Full stainless steel cylinder body and piston rod with NBR seal, corrosion resistance class CRC4 for humid and corrosive environment. LABS(PWIS) compliant VDMA24364-B1/B2-L, suitable for lithium battery, food, packaging and paint workshop automation. It can be fitted with magnetic proximity sensors for position feedback, widely used for linear pushing, lifting and clamping tasks
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | CRDNGS-63-PPV-A |
| Order No. | 160891 |
| Product Series | CRDNGS |
| Product Type | Double-acting ISO standard cylinder with swivel flange, stainless steel |
| Standard | ISO 15552 |
| Piston diameter | 63 mm |
| Piston rod thread | M16×1.5 |
| Stroke range | 10 ~ 2000 mm |
| Cushioning | PPV, pneumatic cushioning adjustable at both ends |
| Theoretical force @6bar | Advance stroke:1870 N |
| Pneumatic port | G3/8 |
| Operating pressure | 0.6 ~10 bar |
| Ambient Temperature | -20 ~ +80 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Body & piston rod material | Stainless steel |
| Seal material | NBR |
| Feature | LABS(PWIS) compliant VDMA24364-B1/B2-L；Swivel flange mounting, double acting, adjustable pneumatic cushion at both ends, high corrosion resistance, suitable for wet and corrosive working environment, compatible with magnetic proximity sensor |
| Mounting | Any mounting position, swivel flange installation |
| Corrosion Resistance Class | CRC4 |
| Certificate | RoHS |
| Origin | Germany |
| Condition | New Original |
