QS-12-8
Product Overview

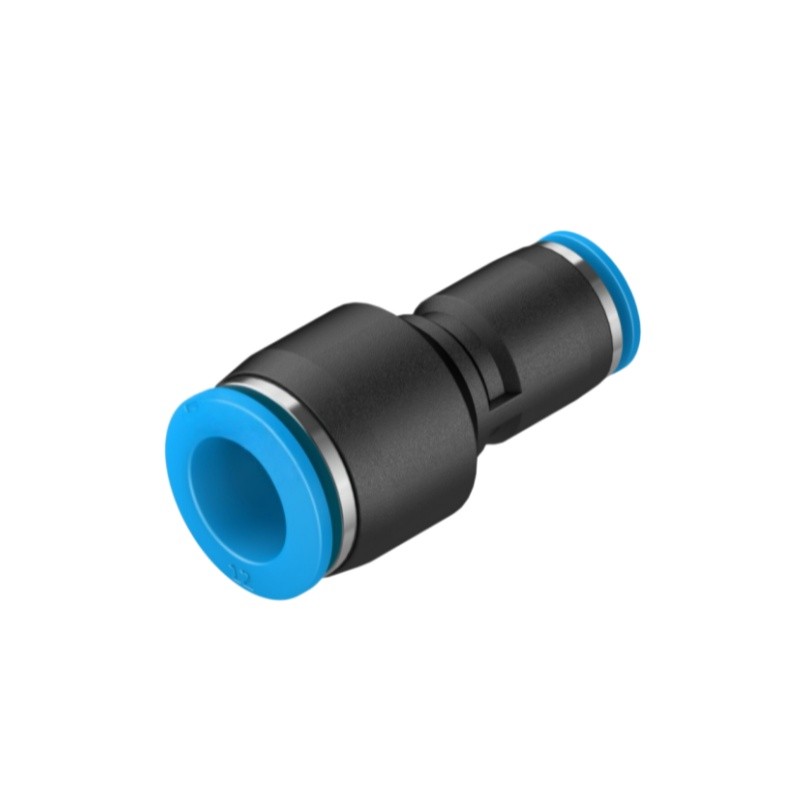

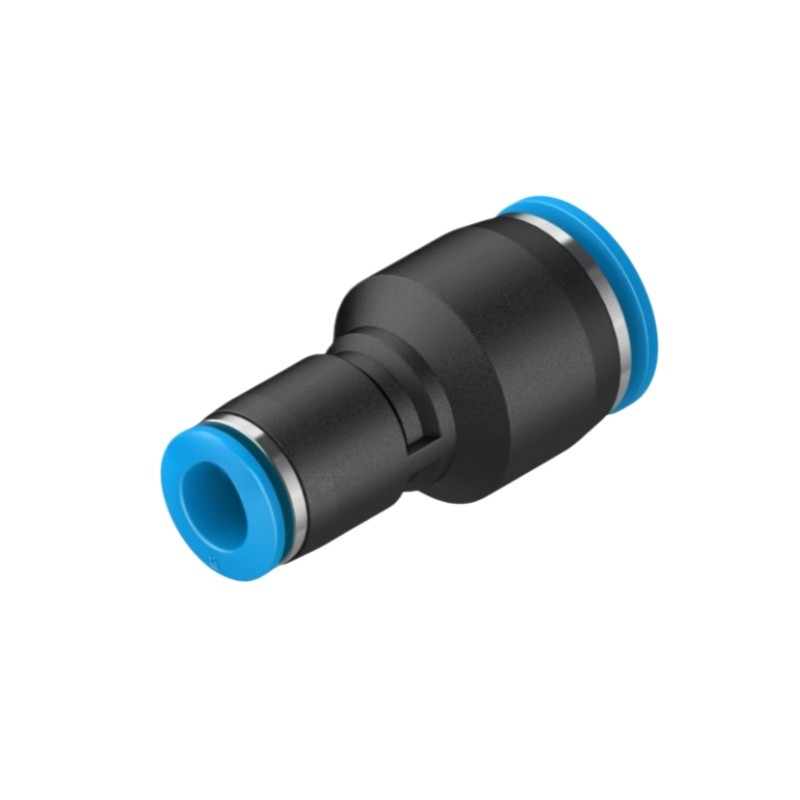

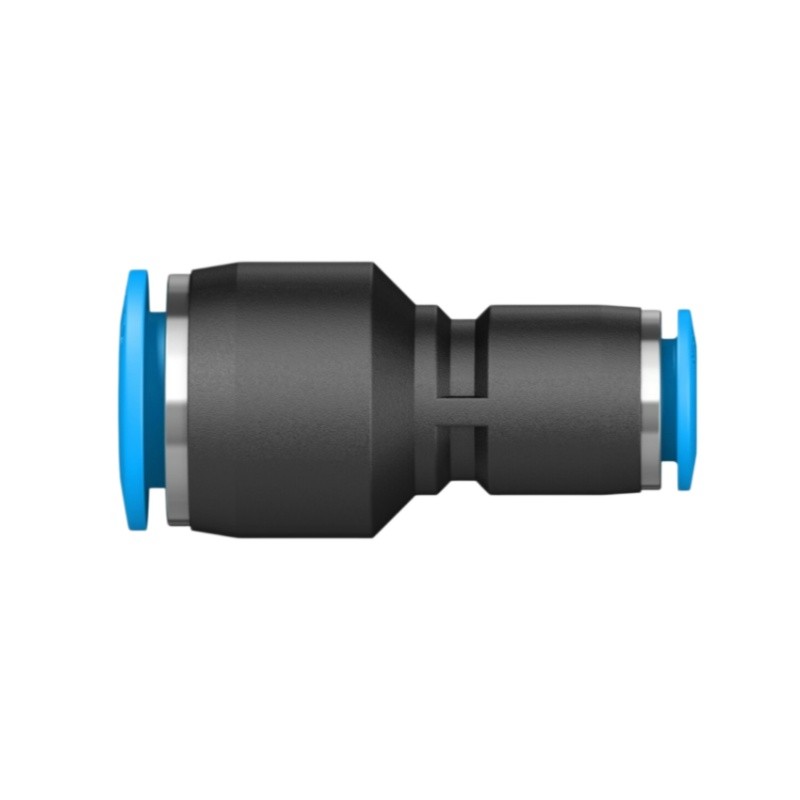

QS-12-8, Part No.130608, is Festo QS series straight reducer push-in fitting. Adopts push-pull connection principle, connects 12mm OD pneumatic tube to 8mm OD pneumatic tube. Original Festo pneumatic fitting, reliable sealing, easy tube insertion and removal, widely used for switching different tube diameters in automation compressed air circuits.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QS-12-8 |
| Part No. | 130608 |
| Type | Reducer straight push-in fitting |
| Tube OD 1 | 12 mm |
| Tube OD 2 | 8 mm |
| Nominal bore | 6.2 mm |
| Working medium | Compressed air |
| Working pressure | -0.95 ~14 bar |
| Temperature range | -10 ~ 80 ℃ |
| Material | Body:PBT,Release ring:POM,Seal:NBR,Tube retainer:High-alloy stainless steel |
| Weight | 16.00 g |
| Package | 10 pcs/pack |
| Feature | Push-pull principle, reducer connector for different tube sizes |
| RoHS | Compliant |
| Corrosion resistance class | CRC1 |
