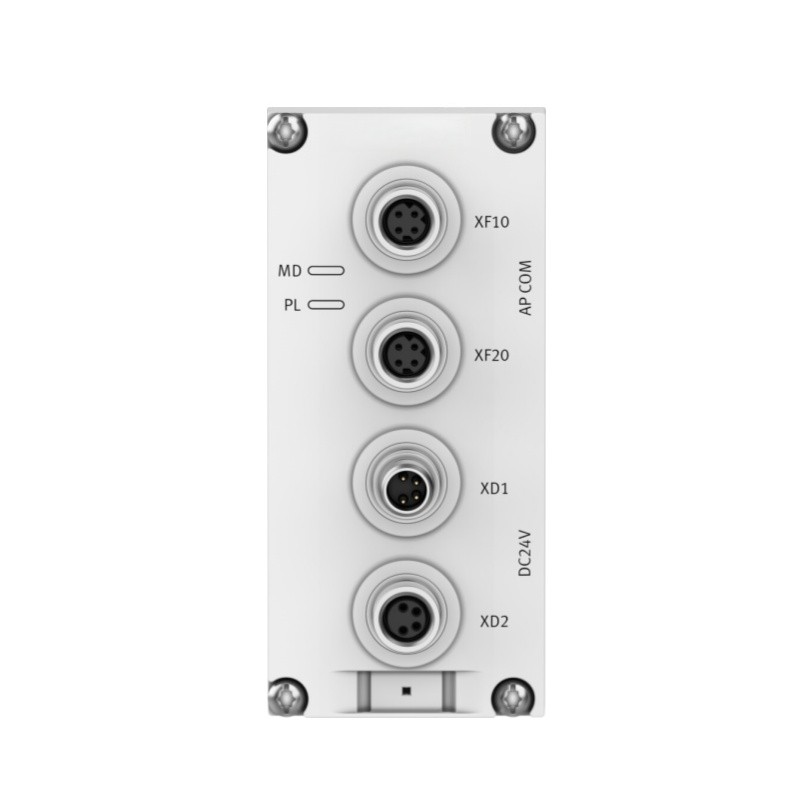

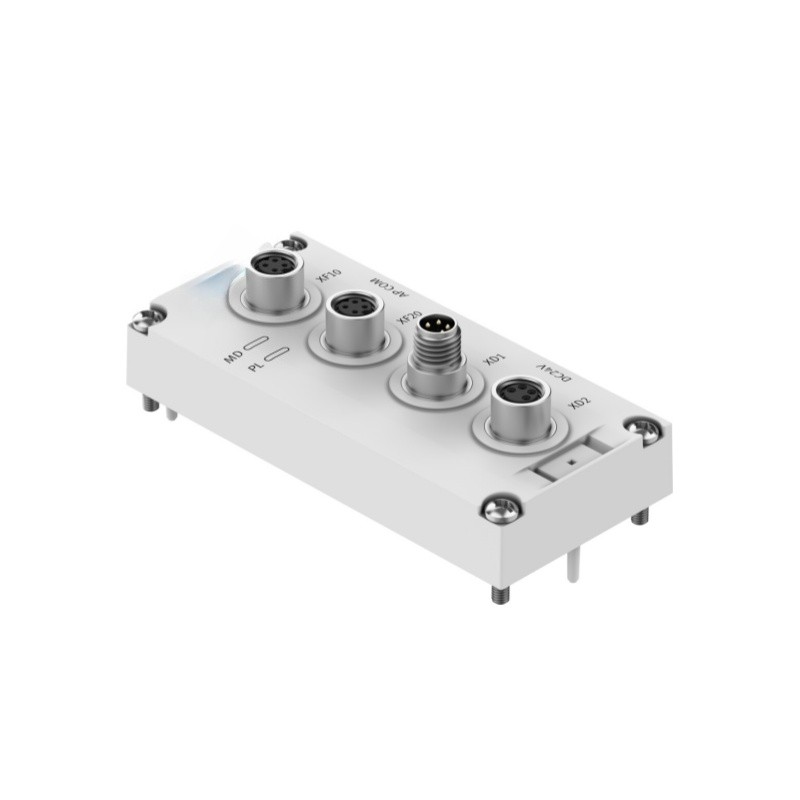

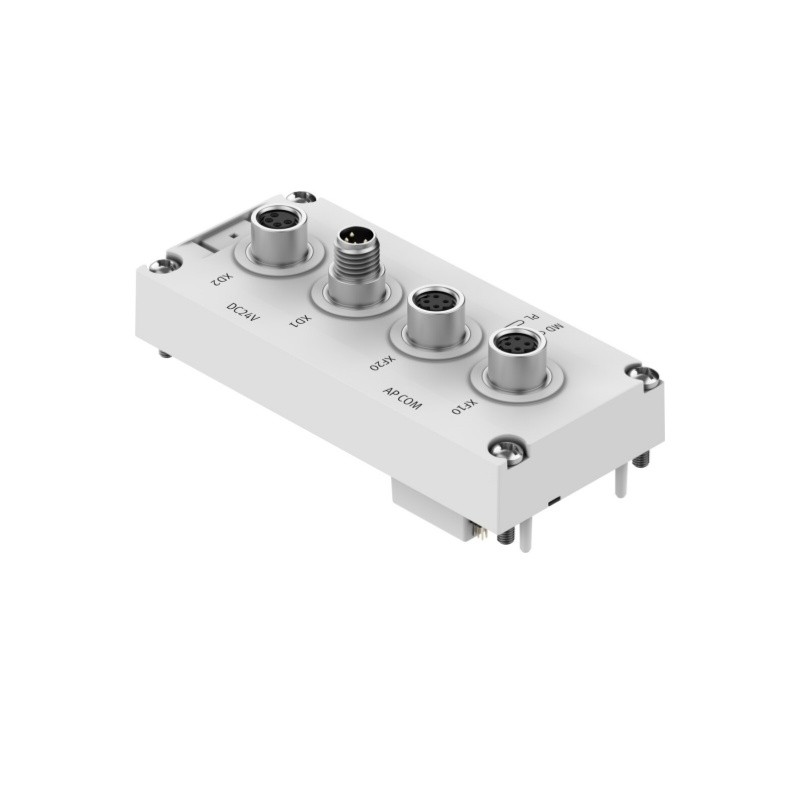

VAEM-L1-S-24-AP
Product Overview
VAEM-L1-S-24-AP, Part No.8081923, is Festo valve terminal electrical interface module. It can support up to 24 valve positions and 48 valve coils. IP67 protection grade, equipped with LED status diagnosis, reverse polarity protection and per-channel electronic short-circuit fuse. Compact structure, stable performance, widely used for CPX-AP valve terminal connection in industrial automation.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VAEM-L1-S-24-AP |
| Part No. | 8081923 |
| Type | Valve terminal electrical interface module |
| Max. valve positions | 24 |
| Max. valve coils | 48 |
| Nominal voltage | 24 VDC |
| Ambient temperature | -5 ~ 60 ℃ |
| Storage temperature | -20 ~ 60 ℃ |
| Protection class | IP67 |
| Dimension(W×L×H) | 42 × 91 × 30 mm |
| Weight | 76.00 g |
| Feature | Reverse polarity protection, LED diagnosis, internal electronic short circuit fuse |
| Corrosion resistance class | CRC2 |
| RoHS | Compliant |
| Certification | c UL us Recognized |
