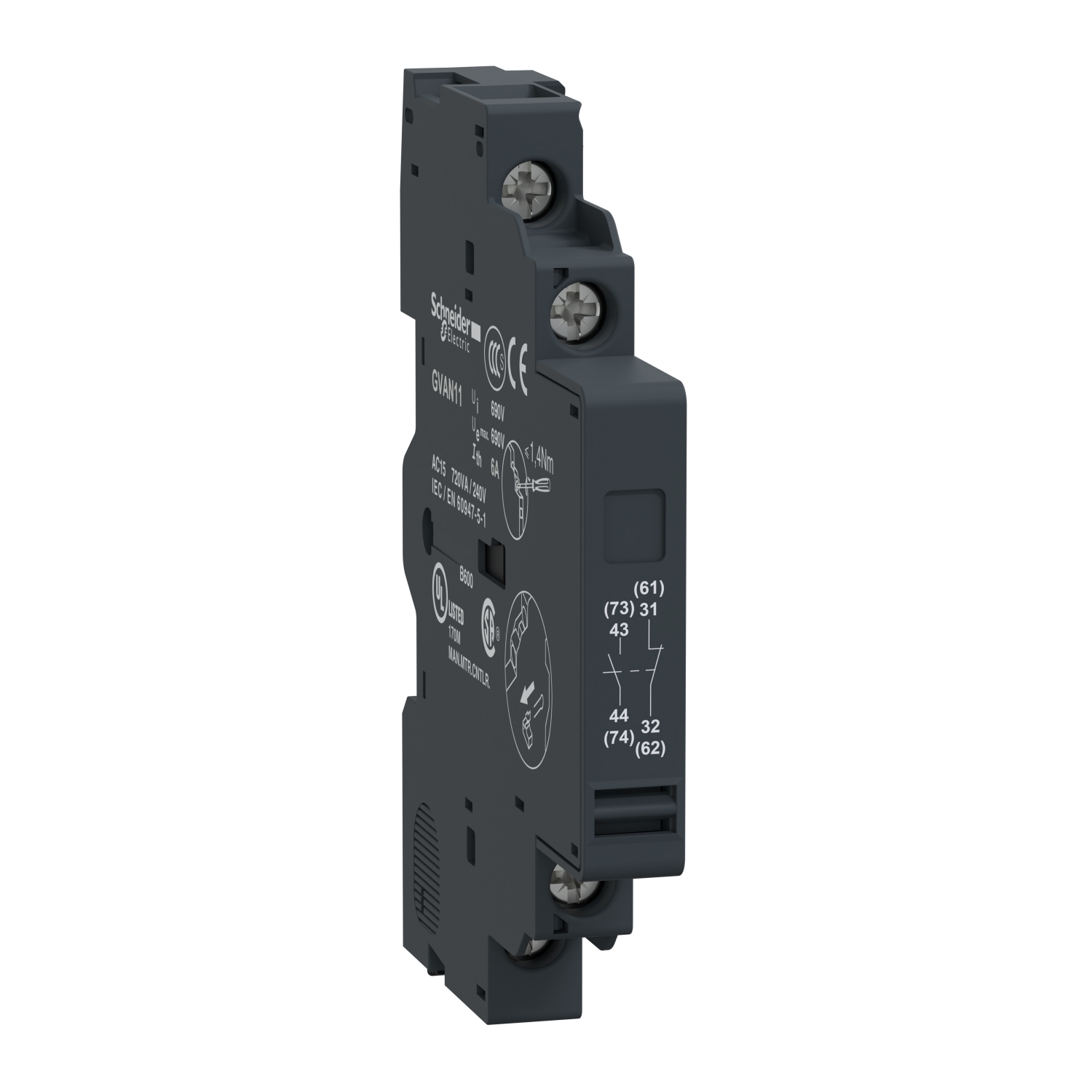

GVAN11
| Range | TeSys TeSys Deca |
|---|---|
| Device short name | GVAN |
| Product or component type | Auxiliary contact block |
| Product compatibility | GV2ME GV2RT GV2L GV3P GV3L GV2LE GV2P |
| Mounting location | Left side |
| Pole contact composition | 1 NO + 1 NC |
[Ui] rated insulation voltage 600 V conforming to UL 508
690 V conforming to IEC 60947-1
600 V conforming to CSA C22.2 No 14[Ue] rated operational voltage 48...690 V AC
24...240 V DC[Ith] conventional free air thermal current 6 A Mechanical durability 100000 cycles Minimum switching current 5 mA Minimum switching voltage 17 V Protection type GB2CB... circuit breaker
GG fuse 10 ARated operational power in VA 300 VA at 48 V AC-15 - electrical durability: 100000 cycles
414 VA at 690 V AC-15 - electrical durability: 100000 cycles
500 VA at 110…127 V AC-15 - electrical durability: 100000 cycles
500 VA at 500 V AC-15 - electrical durability: 100000 cycles
650 VA at 440 V AC-15 - electrical durability: 100000 cycles
720 VA at 230…240 V AC-15 - electrical durability: 100000 cycles
850 VA at 380…415 V AC-15 - electrical durability: 100000 cyclesRated operational power in W 120 W at 240 V DC-13 - electrical durability: 100000 cycles
140 W at 110 V DC-13 - electrical durability: 100000 cycles
140 W at 24 V DC-13 - electrical durability: 100000 cycles
180 W at 60 V DC-13 - electrical durability: 100000 cycles
240 W at 48 V DC-13 - electrical durability: 100000 cyclesHeight 89 mm Width 9.3 mm Depth 66 mm Net weight 0.05 kg Colour Dark grey
