1076675 IMF12-08NPSNC0S
Product Overview

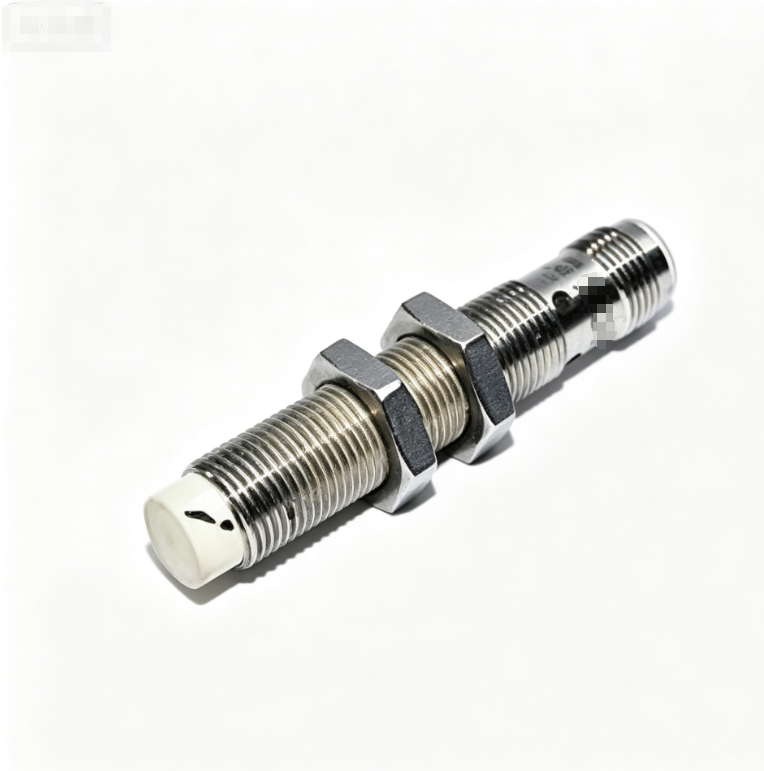

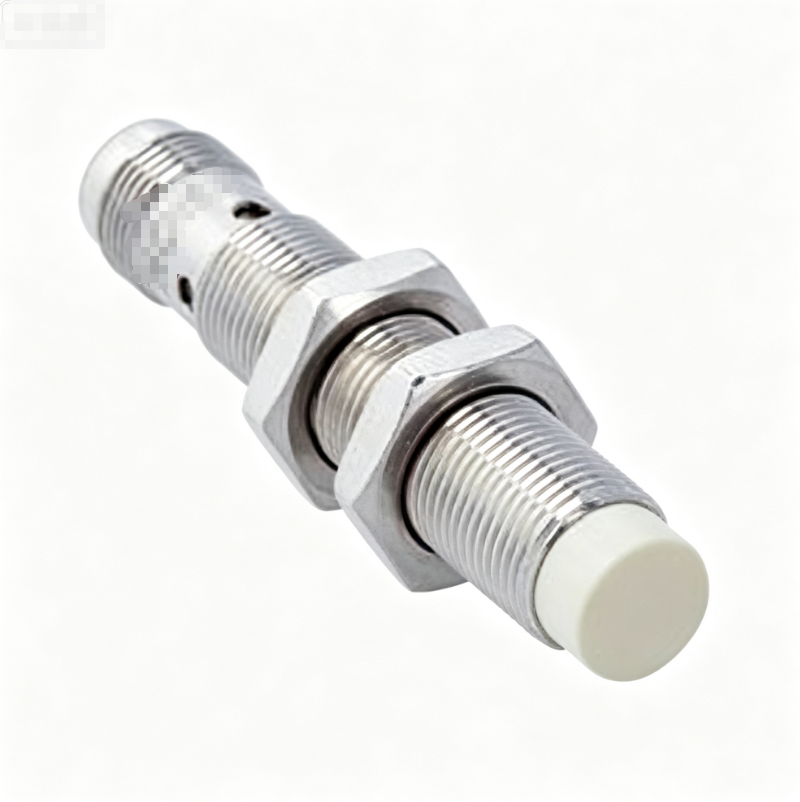

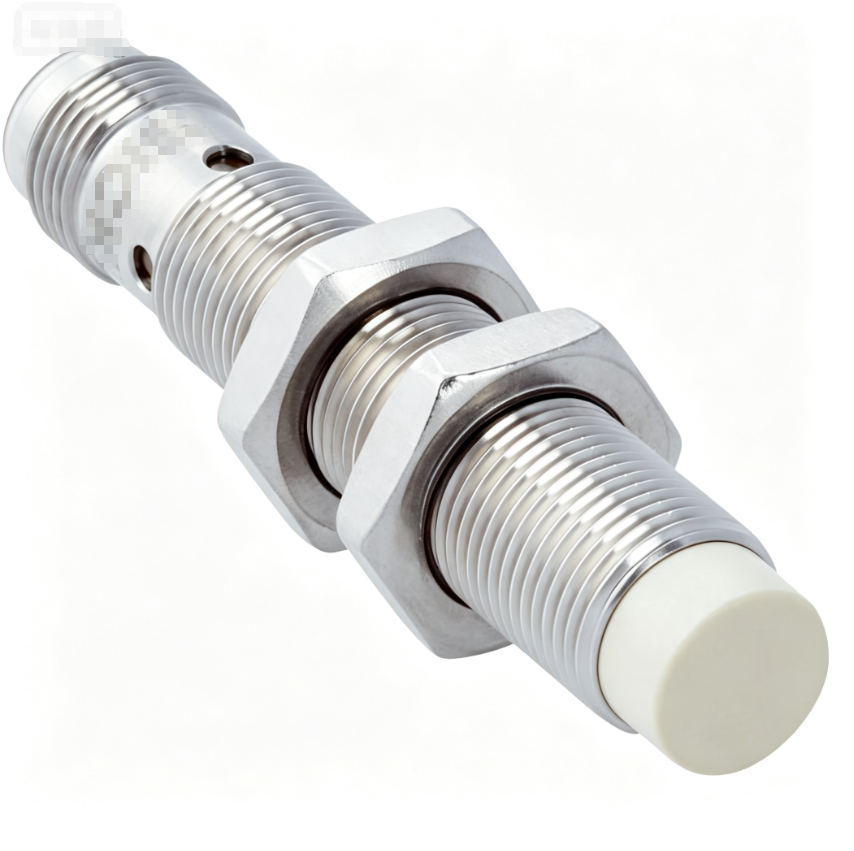

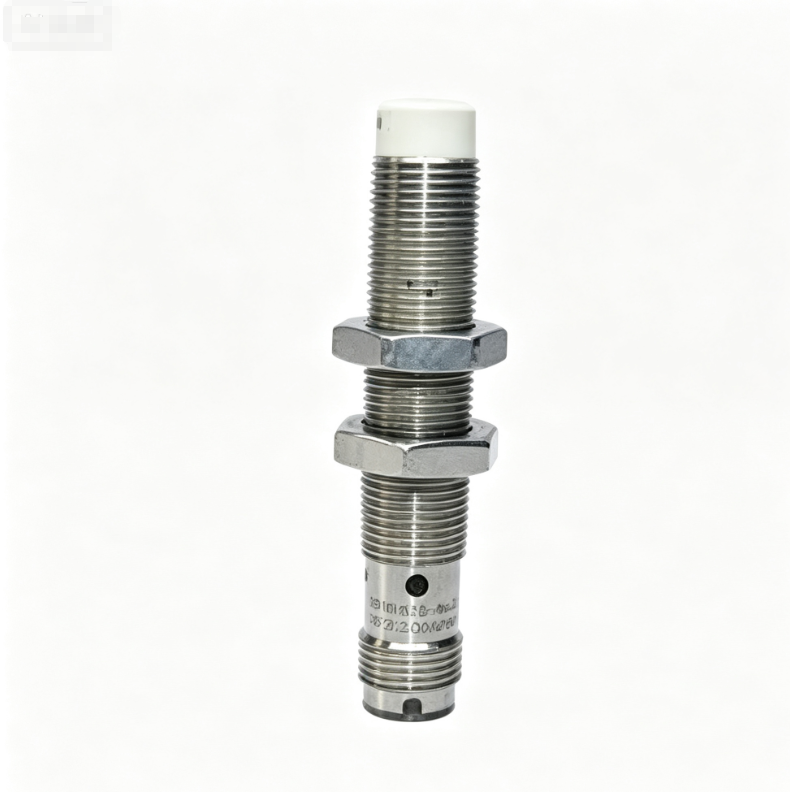

IMF12-08NPSNC0S (Part No.1076675) is a hygienic inductive proximity sensor from SICK IMF12 series. It adopts non-flush mounting with 8 mm sensing distance. It features PNP normally open 3-wire DC output and IO-Link communication interface. M12×1 threaded housing constructed from AISI316L (1.4404) V4A stainless steel, protection class IP68 / IP69K, operating voltage DC10~30V. Specially designed for washdown and hygienic environments, applied for metal object detection in food and beverage industry. Brand new original SICK sensor.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | IMF12-08NPSNC0S |
| Part No. | 1076675 |
| Product Type | Inductive Proximity Sensor |
| Series | IMF12 |
| Principle | Inductive metal detection |
| Sensing Distance | 8 mm (Non-flush mounting) |
| Output Type | PNP NO (Normally Open), DC 3-wire |
| Interface | IO-Link |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Thread Size | M12×1 |
| Housing Material | V4A Stainless Steel (AISI316L /1.4404) |
| Protection Class | IP68, IP69K |
| Switching Frequency | 2000 Hz |
| Connector | M12 4-pin male connector |
| Condition | New Original |
| Application | Food & beverage industry, Hygienic washdown area, metal object detection, packaging machine |
| Weight | 0.045 KG |
| Gross Weight | 0.07 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
