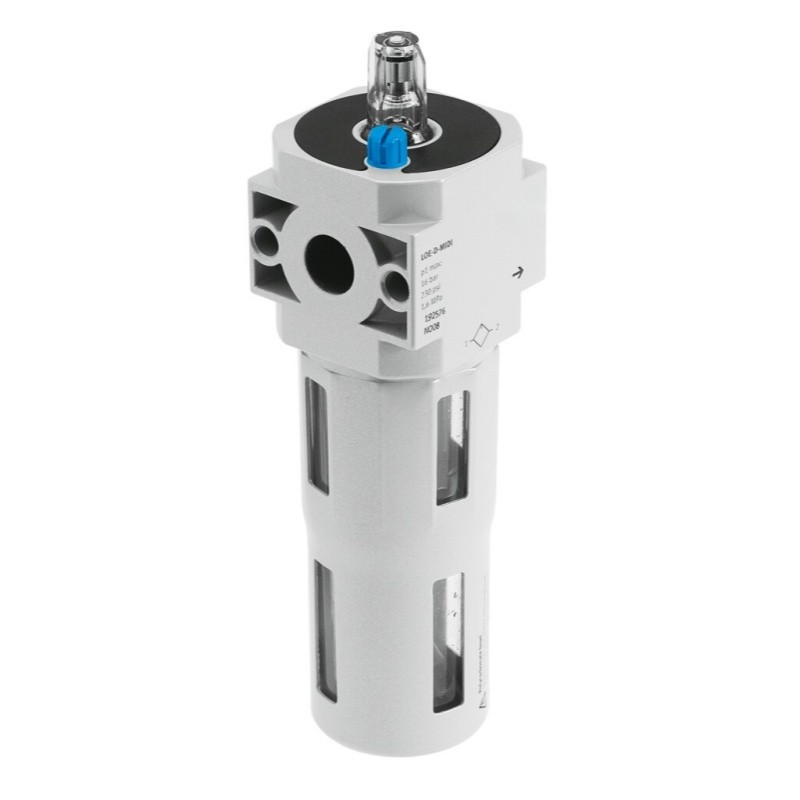

LOE-D-MIDI
Product Overview
FESTO LOE-D-MIDI belongs to D-series air line lubricator, MIDI size proportional oil mist unit. It supplies proportional oil mist into compressed air to lubricate downstream pneumatic actuators. Max oil reservoir capacity 110 cm³; lubrication starts when air flow ≥8 l/min. Metal bowl guard protects polycarbonate sight glass for oil level observation. Vertical installation ±5°, compatible with D-series filter / regulator for modular air service combination. LABS(PWIS) compliant for paint workshop. This model is phase-out product, stock available only, not recommended for new equipment design. Widely used in pneumatic automation air preparation circuits.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | LOE-D-MIDI |
| Order No. | 192576 |
| Product Series | LOE D series |
| Product Type | Air Line Lubricator / Pneumatic Lubrication Unit |
| Size | MIDI |
| Structure | Proportional oil mist lubricator |
| Max Oil Reservoir Volume | 110 cm³ |
| Min Flow for Lubrication | 8 l/min |
| Operating Pressure | 0 ~ 16 bar |
| Ambient Temperature | -10 ~ +60 ℃ |
| Medium Temperature | -10 ~ +60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], inert gas |
| Installation Position | Vertical ±5° |
| Housing Material | Aluminium alloy |
| Bowl Guard | Metal protective cover |
| Sight Glass | Makrolon® polycarbonate |
| Seal | NBR |
| Feature | LABS(PWIS) compliant VDMA24364-B1/B2-L, modular D-series service unit, proportional oil supply, phase-out product, not recommended for new machine design |
| Mounting | Combined with service unit accessories |
| Corrosion Resistance Class | CRC2 |
| Weight | 630 g |
| Certificate | RoHS |
| Origin | Germany |
| Condition | New Original |
