CRSMT-8M-PS-24V-K-5,0-OE-EX2
Product Overview

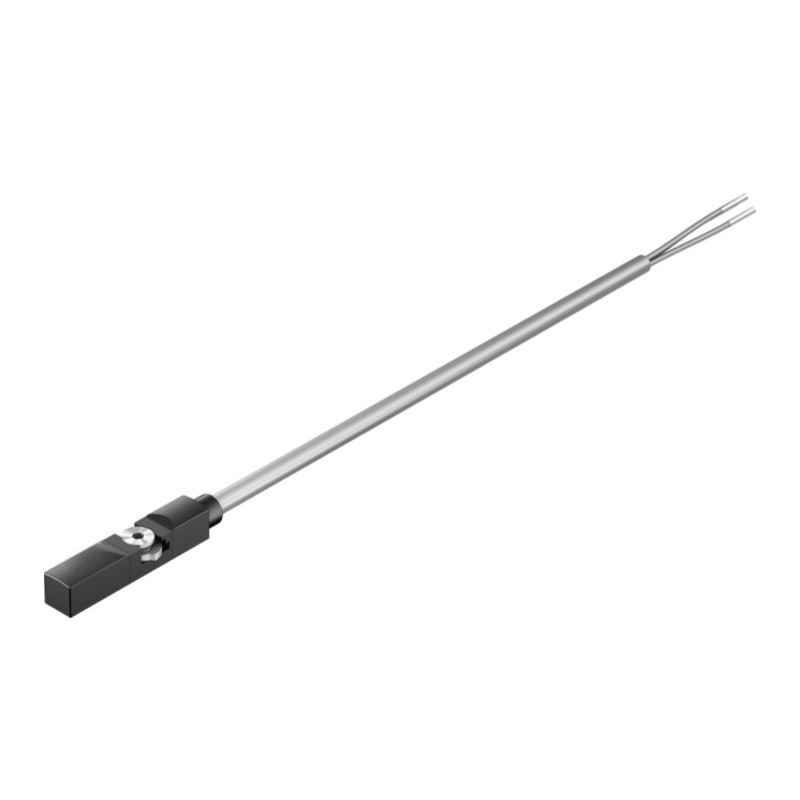

FESTO CRSMT-8M-PS-24V-K-5,0-OE-EX2 belongs to CRSMT T-slot magneto-resistive cylinder sensor series. It is inserted into cylinder T-slot to detect piston magnet position. PS = PNP normally open output; K-5,0 means 5m cable; OE open wire end; EX2 ATEX explosion-proof version for gas zone2 and dust zone22. Built-in reverse polarity & short-circuit protection, LED status display. IP68/IP69K high protection, resistant to acid, alkali and coolant. TPE-O cable suitable for drag chain, LABS(PWIS) compliant, widely used for cylinder position signal feedback in hazardous industrial environments.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | CRSMT-8M-PS-24V-K-5,0-OE-EX2 |
| Order No. | 574380 |
| Product Series | CRSMT |
| Product Type | Magneto-resistive T-slot Proximity Sensor / Cylinder Position Sensor |
| Measuring Principle | Magneto-resistive |
| Mounting | T-slot insert mounting, screw clamping |
| Switch Output | PNP Normally Open (PS) |
| Rated Voltage | DC24V |
| Operating Voltage Range | DC5 ~ 30V |
| Max Output Current | 100 mA |
| Max Switching Power | 2.8 W |
| Max Switching Frequency | 180 Hz |
| Response Time | ≤1 ms |
| Repeat Accuracy | 0.2 mm |
| Electrical Connection | 3-core cable, open end OE, cable length 5m |
| Indication | LED status indicator |
| Protection Class | IP65, IP68, IP69K |
| Ambient Temperature | -40 ~ +85℃ |
| Cable Ambient Temp(non-fixed) | -20 ~ +85℃ |
| Feature | EX2: ATEX explosion-proof certification, suitable for gas zone2 / dust zone22; anti-short circuit, reverse polarity protection, acid & coolant resistant, LABS(PWIS) compliant VDMA24364-B2-L, suitable for drag chain |
| Housing Material | PP, high-alloy stainless steel, PA |
| Cable Sheath | TPE-O |
| Corrosion Resistance Class | CRC2 |
| Certificate | CE, RoHS, RCM, ATEX UKEX |
| Origin | Bulgaria |
| Condition | New Original |
