CSS-WBF114118RZZZZ 1115223
Product Overview

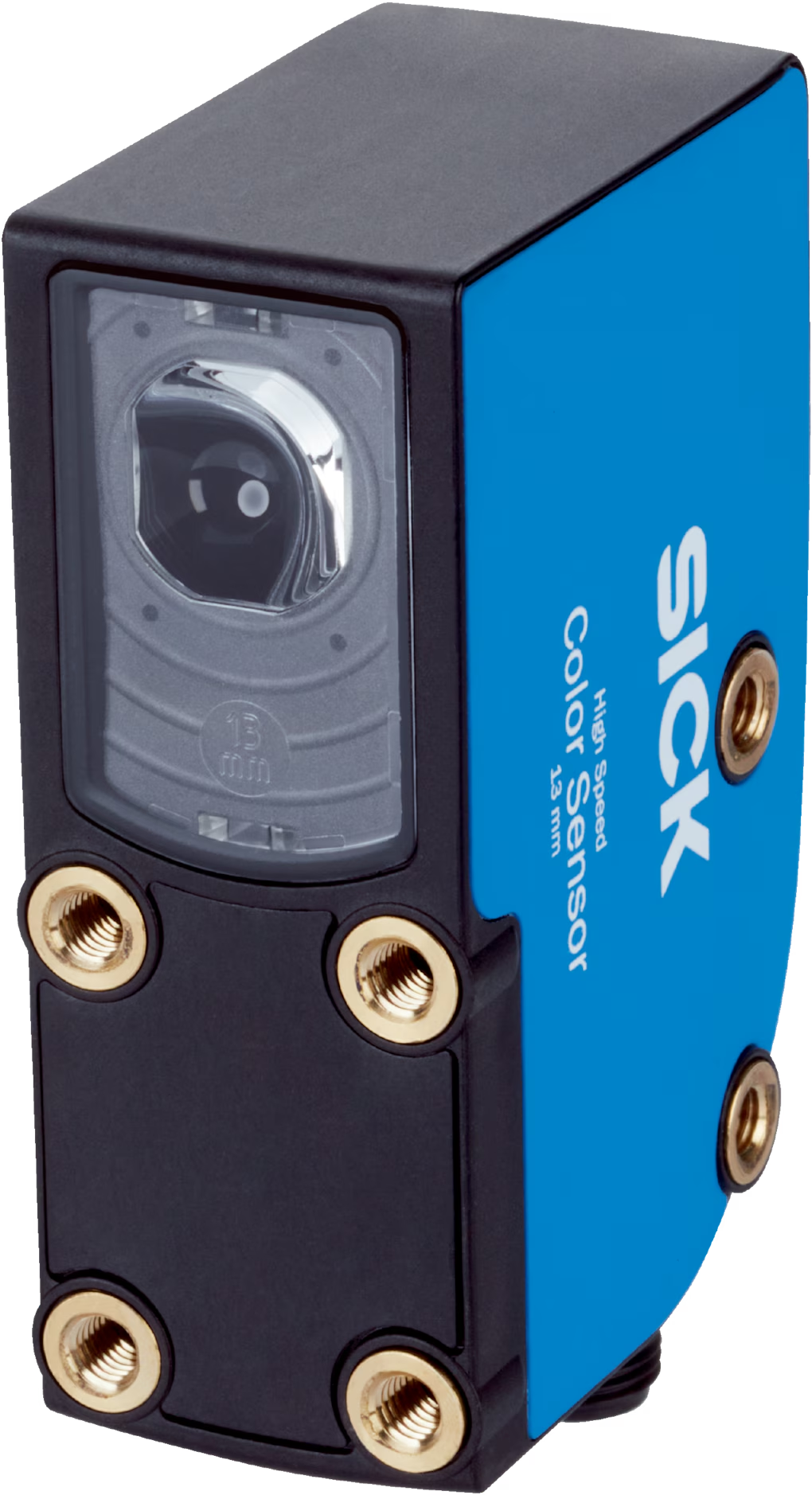

CSS-WBF114118RZZZZ, Order No. 1115223, belongs to SICK CSS High Speed color sensor series. It adopts RGB LED light source with 2 mm × 4 mm rectangular light spot, suitable for small and narrow target detection. Rated sensing distance is 13 mm and tolerance ±5 mm. It supports single-value and multi-value teach-in, two color working modes: Color mode and Color + Illumination mode. It has 4 NPN hardware switching outputs; it can recognize 4 colors under standard mode and up to 15 colors under coded mode. 4 local job banks are available for saving different color recipes. The switching frequency reaches 13.8 kHz, ideal for high-speed automation processes. Compatible with SOPAS software for parameter setup. M12 8-pin A-coded male connector, IP67 protection, reverse polarity and short-circuit protection. New and original genuine SICK color sensor.
| Attribute | Value |
|---|---|
| Brand | SICK |
| Model | CSS-WBF114118RZZZZ |
| Order No. | 1115223 |
| Series | CSS High Speed |
| Product Type | Color Sensor |
| Sensing Distance | 13 mm |
| Distance Tolerance | ±5 mm |
| Light Source | RGB LED (460 nm, 530 nm, 625 nm) |
| Spot Size | 2 mm × 4 mm rectangular spot |
| Connection | M12 8-pin male connector, A-coded |
| Output Type | 4 × NPN hardware switching outputs |
| Switching Frequency | 13.8 kHz |
| Response Time | 36 µs |
| Supply Voltage | 10.8 ~ 28.8 V DC |
| Housing Protection | IP67 |
| Operating Temperature | -20°C ~ +60 °C |
| Dimension | 30 mm × 53 mm × 78.5 mm |
| Net Weight | 94.00 g |
| Housing Material | VISTAL plastic, COP optics |
| Condition | New Original |
