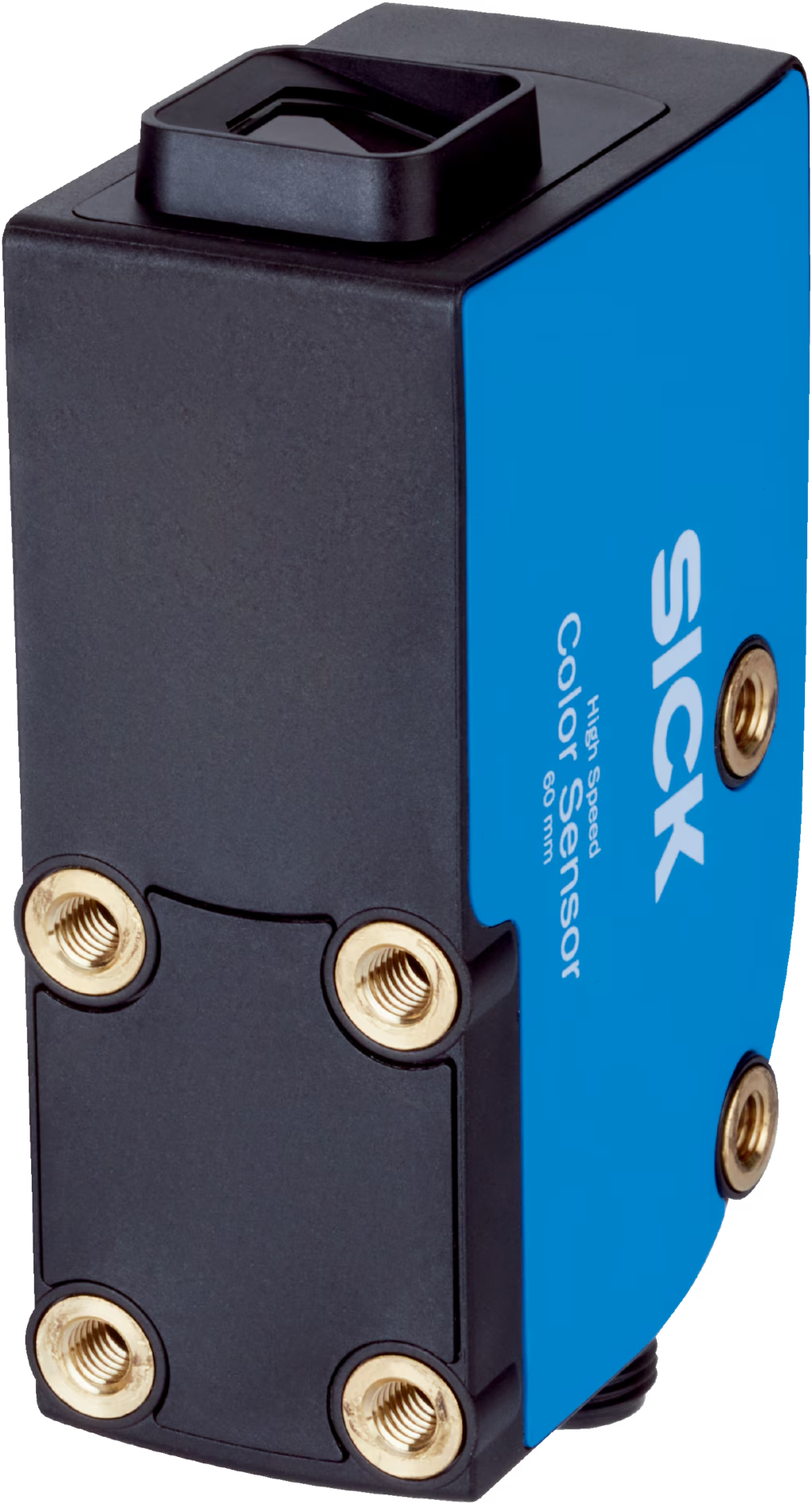

CSX-WBFA54228AA10Z 1120193
Product Overview
CSX-WBFA54228AA10Z, Order No. 1120193, belongs to SICK CSX High Speed color sensor series. It adopts RGB LED light source with large circular light spot Ø12 mm, suitable for detecting larger target areas. Rated sensing distance is 60 mm and tolerance ±9 mm. It supports single-value and multi-value teach-in, two color working modes: Color mode and Color + Illumination mode. It has 4 NPN hardware switching outputs; it can recognize 4 colors under standard mode and up to 15 colors under coded mode. 4 local job banks are available for saving different color recipes. The switching frequency reaches 13.8 kHz, suitable for high-speed automation processes. Compatible with SOPAS software for parameter setup. M12 8-pin A-coded male connector, IP67 protection, reverse polarity and short-circuit protection. New and original genuine SICK color sensor.
| Attribute | Value |
|---|---|
| Brand | SICK |
| Model | CSX-WBFA54228AA10Z |
| Order No. | 1120193 |
| Series | CSX High Speed |
| Product Type | Color Sensor |
| Sensing Distance | 60 mm |
| Distance Tolerance | ±9 mm |
| Light Source | RGB LED (460 nm, 530 nm, 625 nm) |
| Spot Size | Ø12 mm round spot |
| Connection | M12 8-pin male connector, A-coded |
| Output Type | 4 × NPN hardware switching outputs |
| Switching Frequency | 13.8 kHz |
| Response Time | 36 µs |
| Supply Voltage | 10.8 ~ 28.8 V DC |
| Housing Protection | IP67 |
| Operating Temperature | -20°C ~ +60 °C |
| Dimension | 30 mm × 53 mm × 78.5 mm |
| Net Weight | 94.00 g |
| Housing Material | VISTAL plastic, COP optics |
| Condition | New Original |
