CQ4-08EPOKP1 6051001
Product Overview

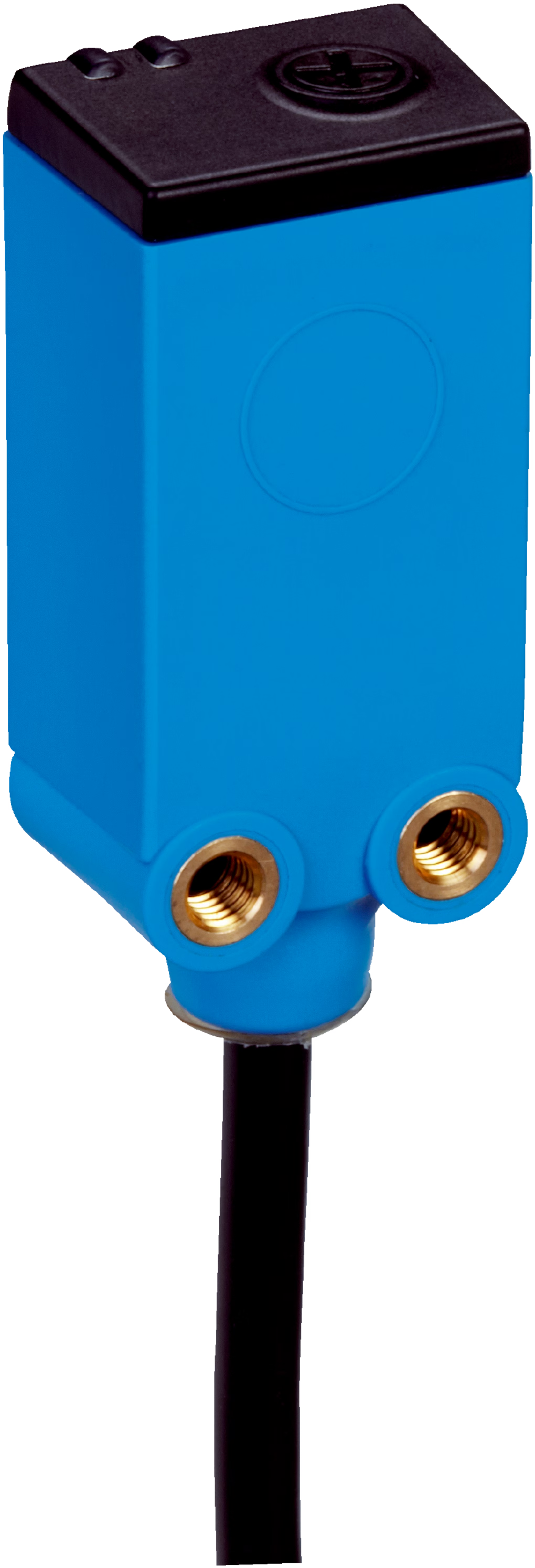

New original SICK CQ4-08EPOKP1 capacitive proximity sensor, PN 6051001, compact rectangular CQ4 series sensor. Sensing range 1~8mm, PNP NC output, 10-30VDC power supply. It comes with 0.3m cable and M8 3-pin male connector, IP67 protection grade. PBT plastic housing with 5-turn potentiometer for sensitivity adjustment. Working temperature -20℃ ~ +75℃. Miniature compact design, perfect for narrow installation space for level detection and object sensing on packaging and conveyor automation lines. We supply genuine SICK sensors with fast delivery and professional after-sales support.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Model | CQ4-08EPOKP1 |
| Part No. | 6051001 |
| Series | CQ4 |
| Sensor type | Capacitive proximity sensor |
| Sensing distance | 1 ~ 8 mm |
| Installation | Flush / Non-flush mount |
| Output type | PNP, NC |
| Wiring | DC 3-wire |
| Connection | M8 male, 3-pin, 0.3m cable |
| Supply voltage | 10–30 V DC |
| Max switching current | 100 mA |
| Switching frequency | 100 Hz |
| IP rating | IP67 |
| Housing material | PBT plastic |
| Operating temperature | -20 ℃ ~ +75 ℃ |
| Feature | 5-turn potentiometer for sensitivity adjustment, compact miniature design |
| Weight(net) | 0.05 kg |
| Weight(gross) | 0.10 kg |
| Certificate | RoHS |
