6030709

属性项	参数
Brand	SICK
Model	WL100L-F2131
Order No.	6030709
Product Type	Retro-reflective Laser Photoelectric Sensor
Sensing Principle	Retro-reflective, polarizing filter, laser light
Sensing Range	0.05 ~ 6 m (with PL80A reflector)
Output Type	PNP
Supply Voltage	10~30V DC
Connection	M8 3-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP67
Light Source	Red Laser, 650nm
Size	23.5 × 74.5 × 63 mm
Response Time	≤0.5ms
Max Output Current	100mA
Operating Temp	-25℃ ~ +55℃
N

INQUIRY

Product Details

Product Tags

Product Overview

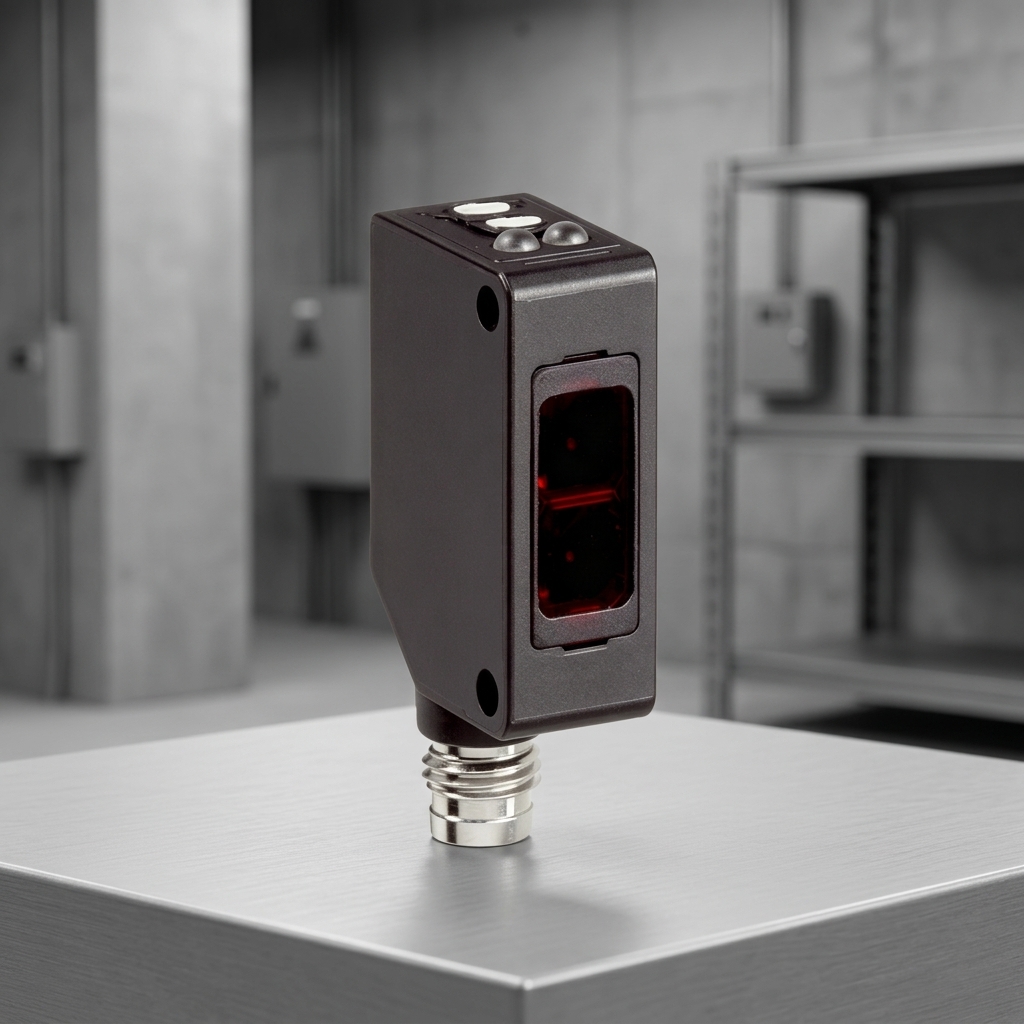

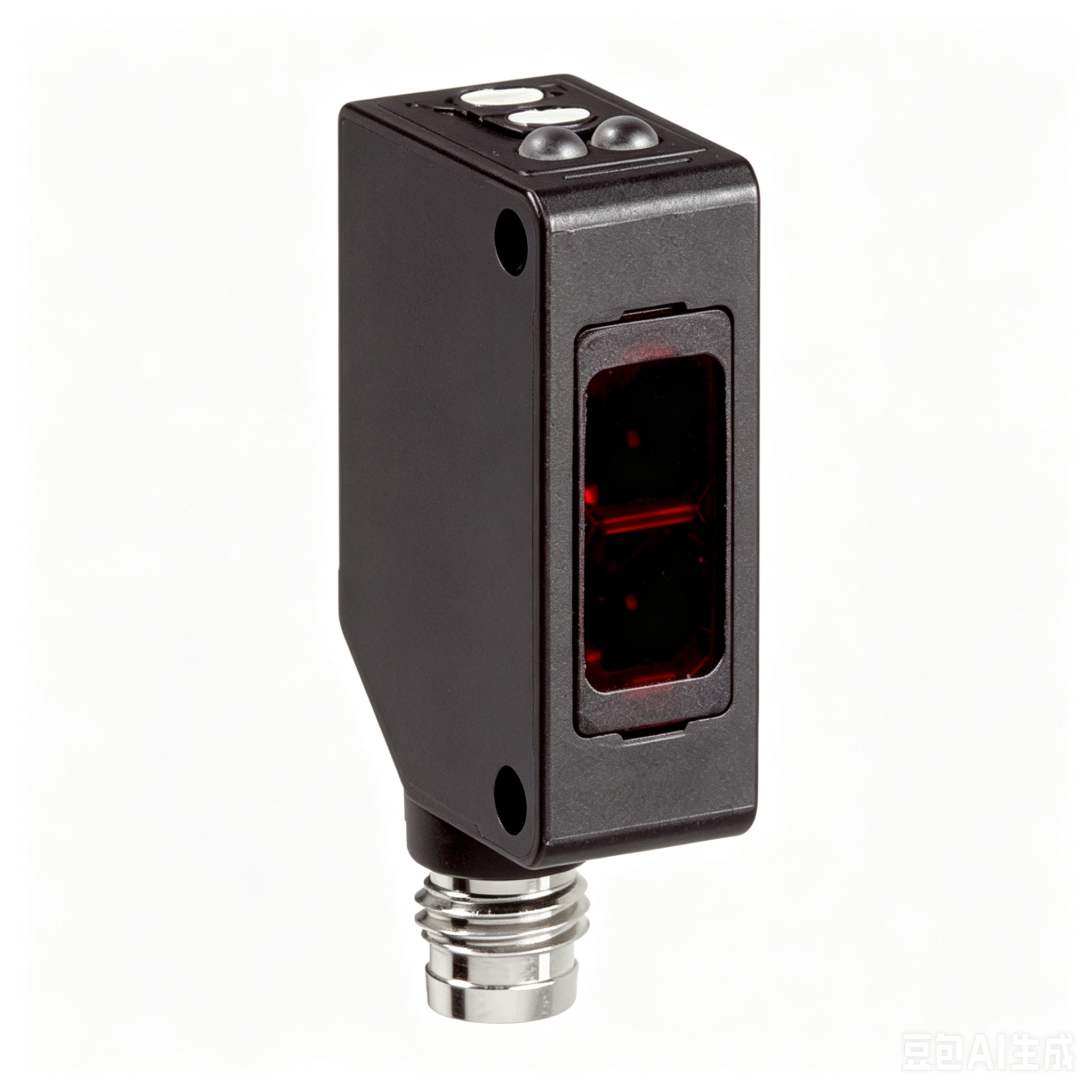

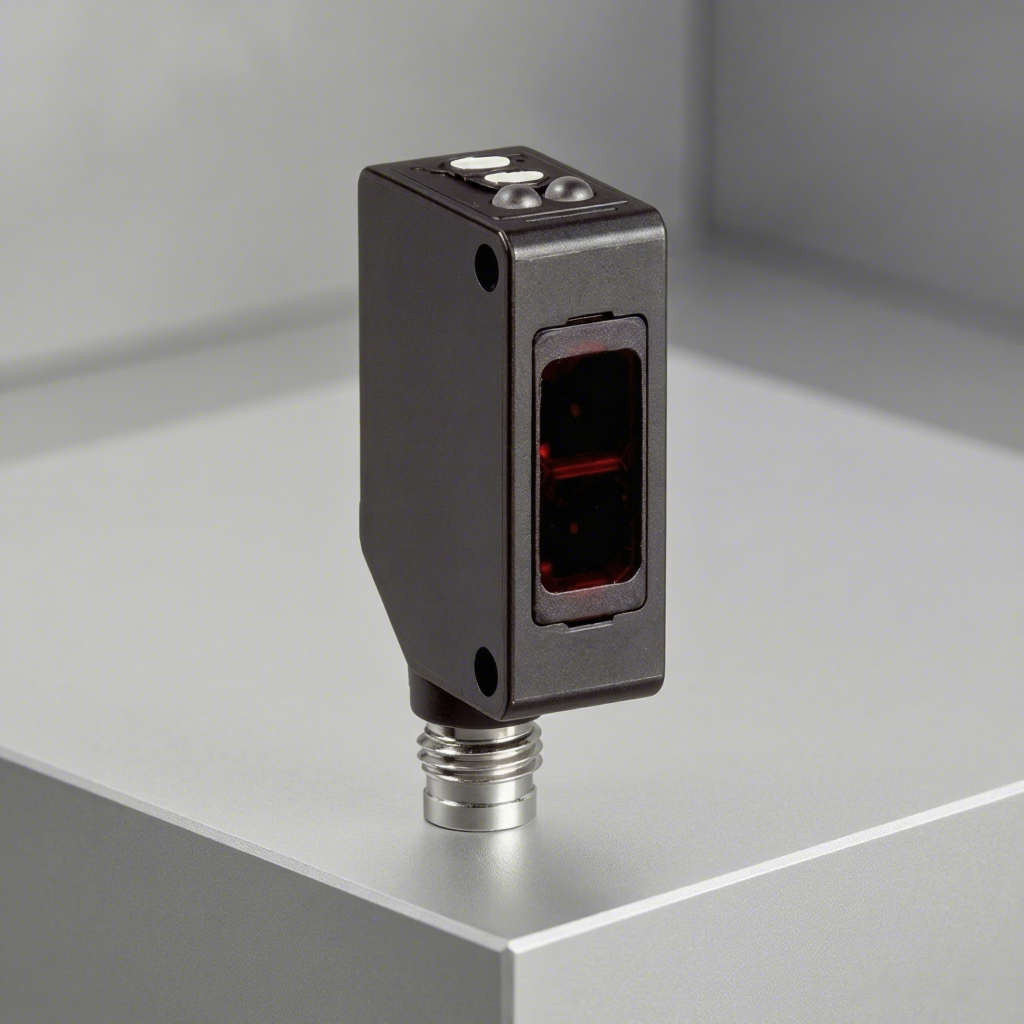

SICK WL100L-F2131, Order No.6030709 is a retro-reflective laser photoelectric sensor with polarizing filter. Adopted red laser light source, it creates tiny light spot for precise positioning. The polarizing filter suppresses false triggering caused by shiny or glossy object surfaces, offering reliable detection performance in various industrial scenarios.

属性项	参数
Brand	SICK
Model	WL100L-F2131
Order No.	6030709
Product Type	Retro-reflective Laser Photoelectric Sensor
Sensing Principle	Retro-reflective, polarizing filter, laser light
Sensing Range	0.05 ~ 6 m (with PL80A reflector)
Output Type	PNP
Supply Voltage	10~30V DC
Connection	M8 3-pin male connector
Housing Material	ABS Plastic
Protection Grade	IP67
Light Source	Red Laser, 650nm
Size	23.5 × 74.5 × 63 mm
Response Time	≤0.5ms
Max Output Current	100mA
Operating Temp	-25℃ ~ +55℃
Net Weight	0.12kg
Gross Weight	0.16kg
Certification	CE
Condition	New Original
Application	Factory Automation, Conveyor, Packaging Machine, Shiny object detection
