2095869 YM2A18-050UA5XLEAX

属性名称	属性值
Brand	SICK
Model	YM2A18-050UA5XLEAX
Order No.	2095869
Product Type	Sensor Actuator Cable
Connector Type	M12 Male, Straight, A-coded
Pin	8 Pin
Cable Length	5 m
Core	8 Core
Conductor Cross Section	0.25 mm²
Cable Jacket Material	PUR, Halogen-free
Color	Gray
Locking Nut	Nickel-plated zinc die-cast
Shielding	Unshielded
Rated Voltage	≤60 V DC
Rated Current	4 A
IP Rating	IP65 / IP66K / IP67
Tightening Torque	0.6 Nm
Feature	Drag chain suitable, Oil resistant
Operating Tempera

INQUIRY

Product Details

Product Tags

Product Overview

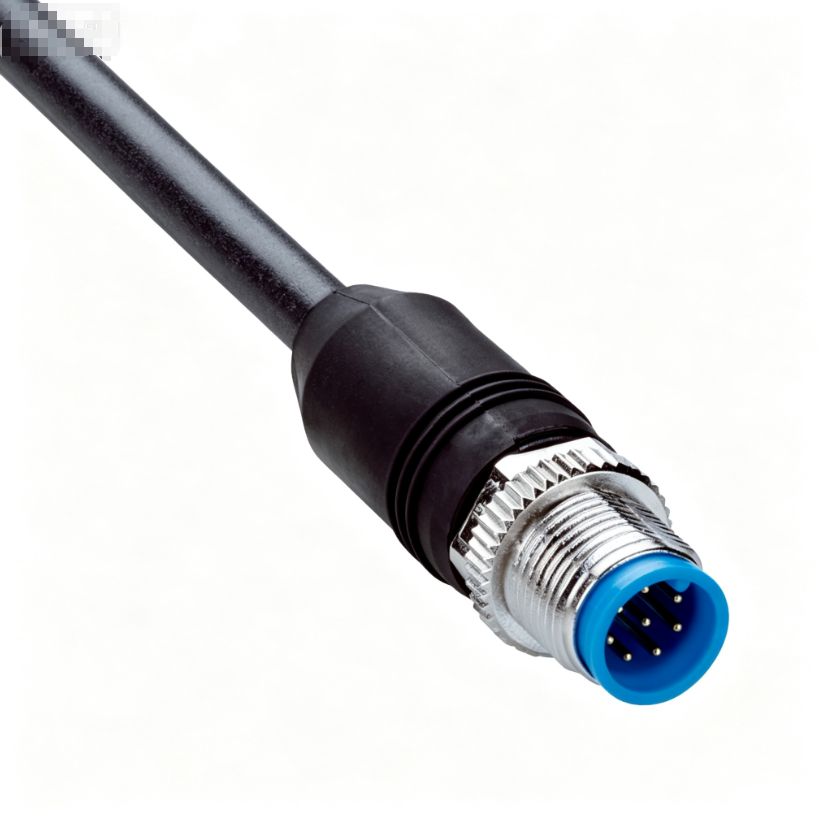

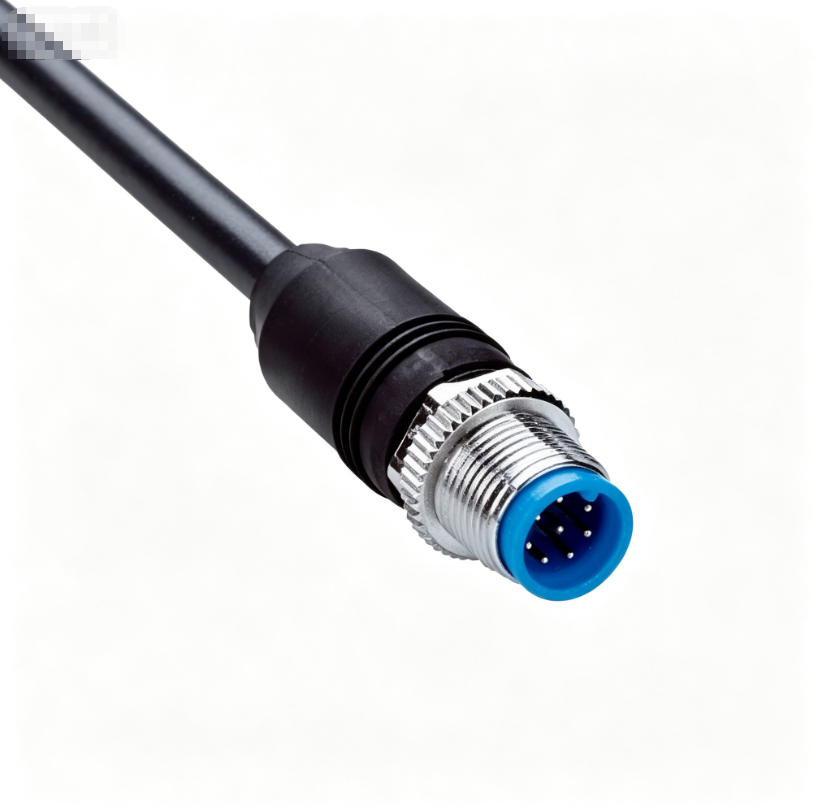

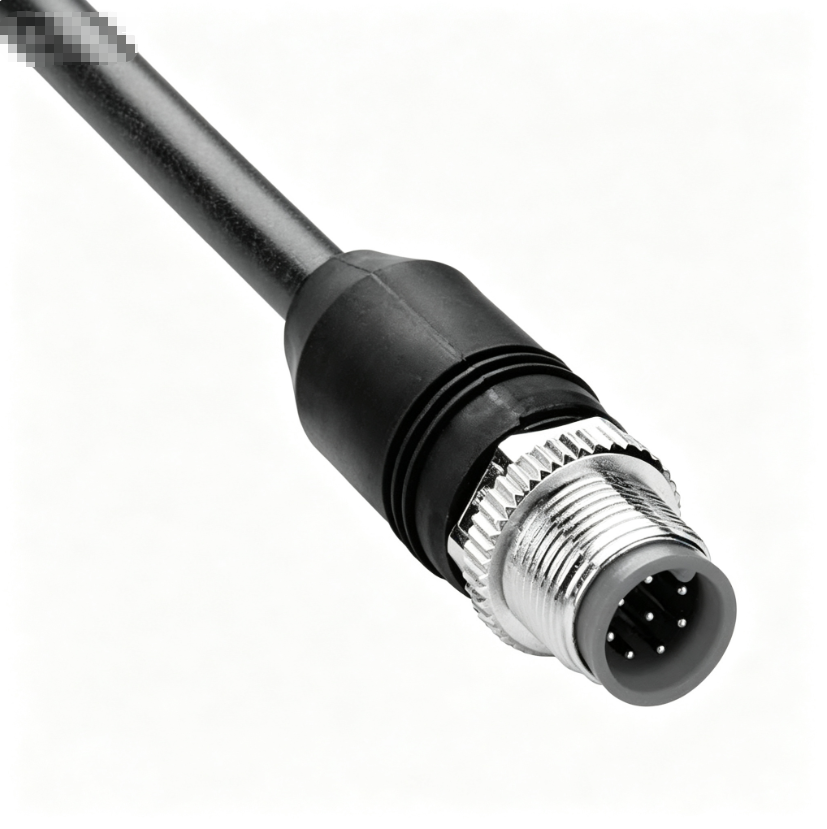

YM2A18-050UA5XLEAX (Part No.2095869) is SICK M12 sensor actuator cable. It features 8-pin A-coded straight male connector, total cable length 5 meters. The cable adopts halogen-free PUR jacket, unshielded design, oil resistant and suitable for drag chain installation. With IP67 protection, it ensures stable signal transmission for sensors and actuators in factory automation and machinery.

属性名称	属性值
Brand	SICK
Model	YM2A18-050UA5XLEAX
Order No.	2095869
Product Type	Sensor Actuator Cable
Connector Type	M12 Male, Straight, A-coded
Pin	8 Pin
Cable Length	5 m
Core	8 Core
Conductor Cross Section	0.25 mm²
Cable Jacket Material	PUR, Halogen-free
Color	Gray
Locking Nut	Nickel-plated zinc die-cast
Shielding	Unshielded
Rated Voltage	≤60 V DC
Rated Current	4 A
IP Rating	IP65 / IP66K / IP67
Tightening Torque	0.6 Nm
Feature	Drag chain suitable, Oil resistant
Operating Temperature	Fixed: -40℃~+80℃, Flexible/Drag chain: -25℃~+80℃, Connector: -25℃~+85℃
Certification	UL
Condition	New Original
MOQ	1 Piece
Gross Weight	0.17 KG
Net Weight	0.15 KG
Place of Origin	Germany
