QSL-1/4-10
Product Overview

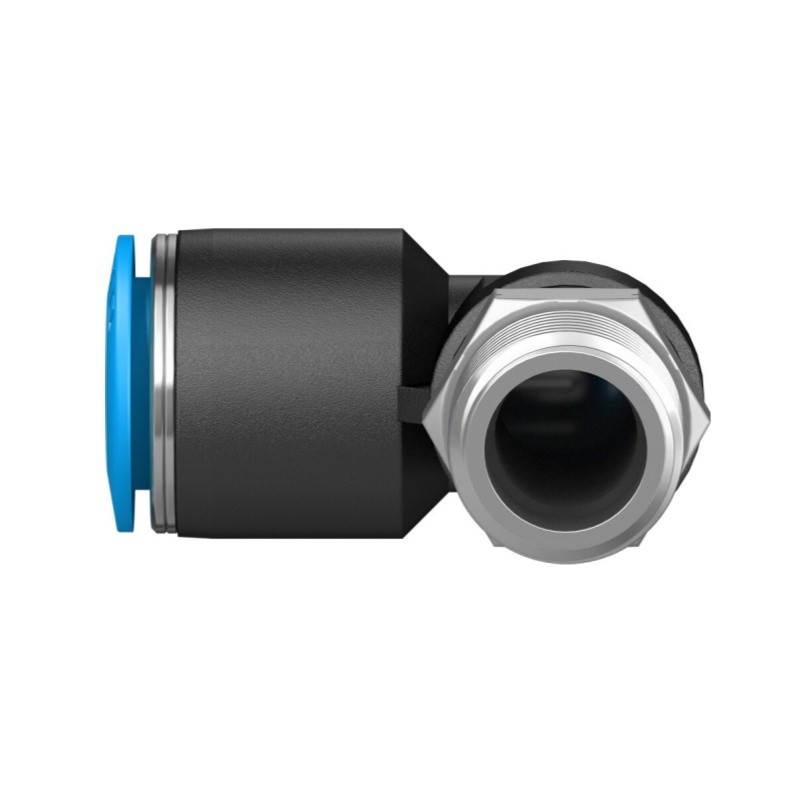

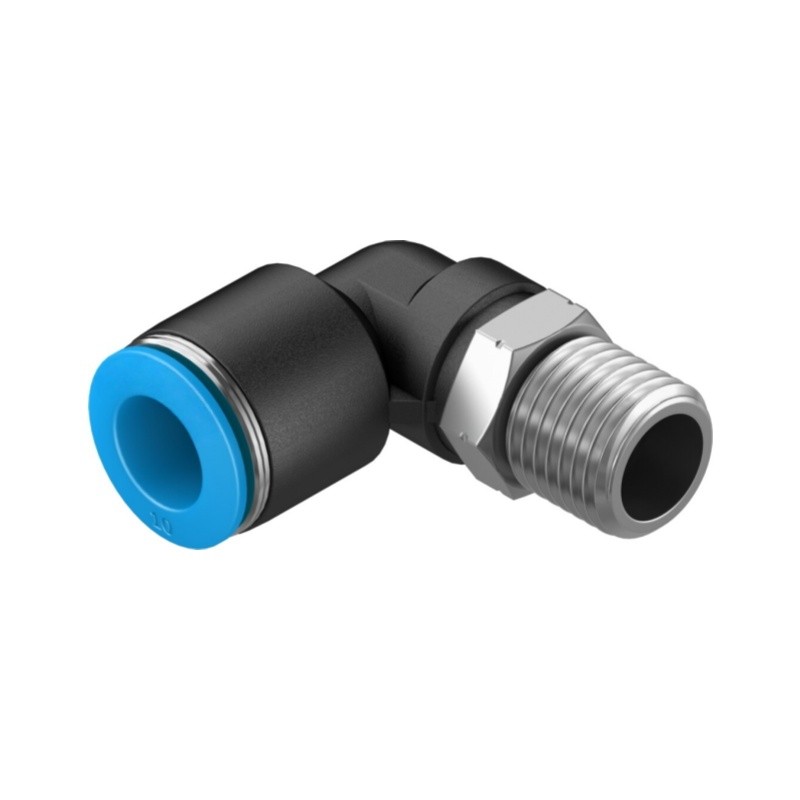

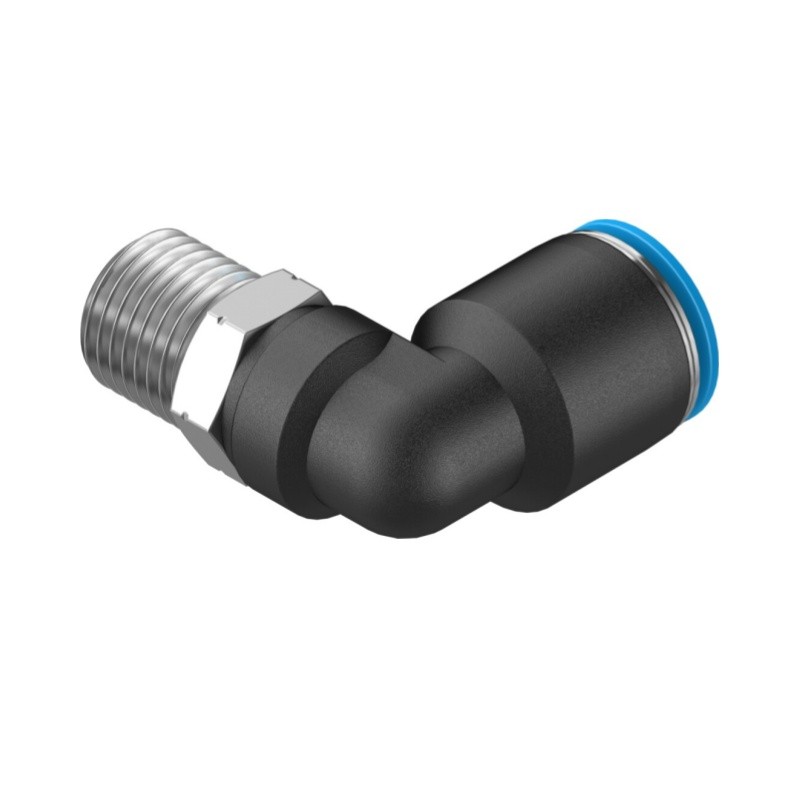

Festo QSL-1/4-10 (Part No.153051) is QS series L-type 90 degree push-in pneumatic elbow fitting. It adopts push-pull quick connection principle, one-hand fast tube assembly, widely used for compressed air pipeline connection in pneumatic control systems. Stable sealing, anti-vibration and easy installation.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | QSL-1/4-10 |
| Part Number | 153051 |
| Product Type | Push-in Fitting / Pneumatic Elbow Connector |
| Shape | L-shape / 90 Degree Elbow |
| Port 1 | Male thread R1/4 |
| Port 2 | For tubing OD 10 mm |
| Nominal Size | 8 mm |
| Operating Pressure | -0.95 ~ 14 bar |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Ambient Temperature | -10 ~ +80 ℃ |
| Housing Material | PBT |
| Screw Plug Material | Nickel-plated brass |
| Release Ring | POM, Blue |
| Seal Material | NBR |
| Claw Material | High-alloy stainless steel |
| Weight | 23 g |
| Mounting | External hexagon 14 mm, optional mounting position |
| CRC Class | CRC 1 |
| LABS(PWIS) | VDMA24364-B1/B2-L |
| Cleanroom Class | ISO 14644-1 Class 4 |
| RoHS | Compliant |
| Original/New | New Original |
