VUVG-L10-M52-RT-M5-1P3
Product Overview

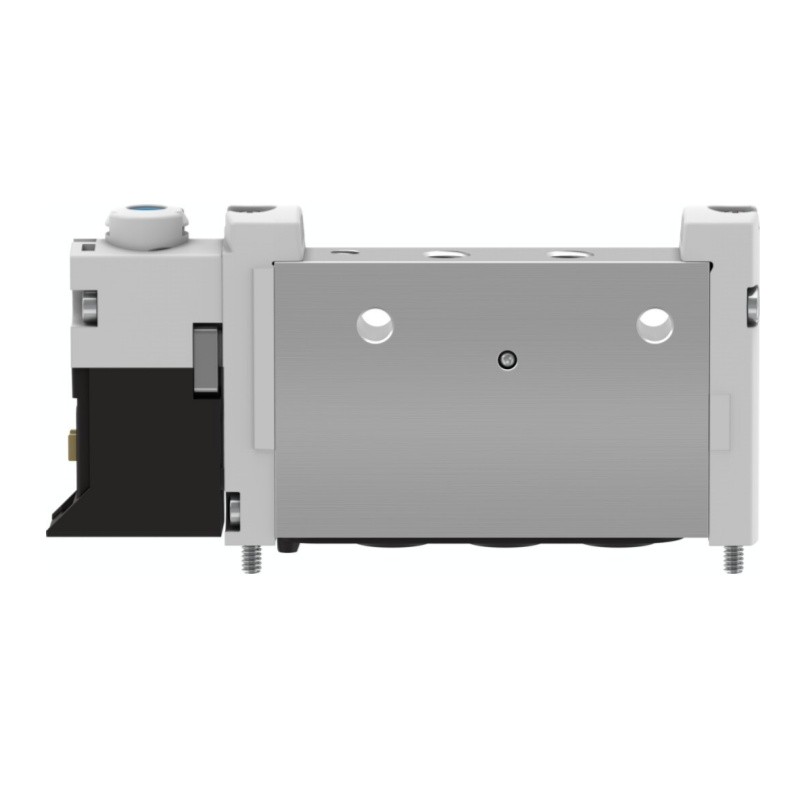

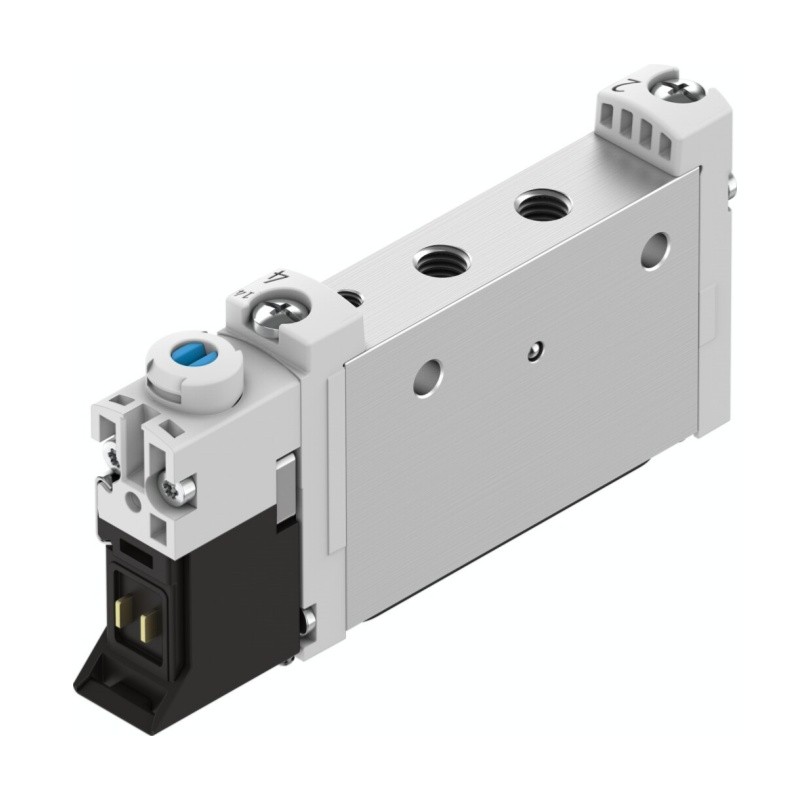

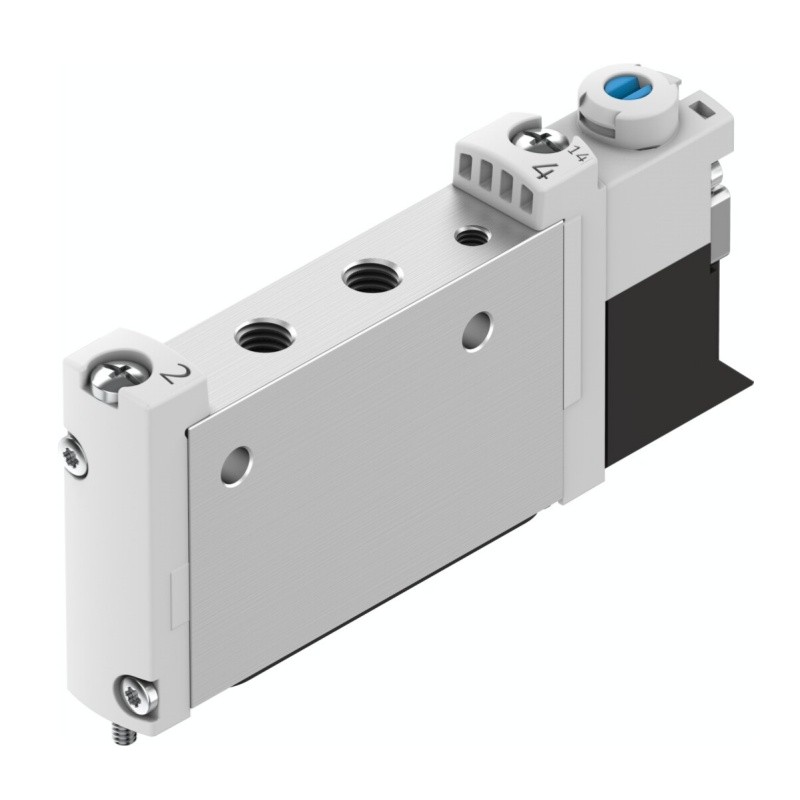

The Festo VUVG-L10-M52-RT-M5-1P3 (Part No.566457) is 5/2-way monostable pilot-operated solenoid valve of VUVG series. Valve size 10mm, nominal flow rate 220 l/min with M5 pneumatic ports. It features soft sealing piston spool structure, adjustable exhaust flow control, stable and fast switching performance for compact automation systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | Festo |
| Model | VUVG-L10-M52-RT-M5-1P3 |
| Part Number | 566457 |
| Product Type | Solenoid Valve |
| Valve Function | 5/2-way, monostable |
| Valve Size | 10 mm |
| Rated Flow | 220 l/min |
| Operating Voltage | 24V DC |
| Coil Power | 1.0 W |
| Operating Pressure | 2.5 ~ 8 bar（0.25~0.8 MPa） |
| Pneumatic Connection | M5 |
| Nominal Width | 3.2 mm |
| Protection Class | IP40 / IP65 with socket |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -5 ~ +50 ℃ |
| Medium Temperature | -5 ~ +50 ℃ |
| Structure | Pilot operated, piston spool with soft seal |
| Reset Type | Mechanical & pneumatic spring |
| Exhaust | Adjustable flow control |
| Manual Override | Detenting & Non-detenting, covered |
| Pilot Air | Internal pilot air supply |
| Mounting | Any mounting position |
| Housing Material | Wrought aluminum alloy |
| Seal Material | HNBR / NBR |
| CRC Class | CRC 2 |
| LABS(PWIS) | VDMA24364-B1/B2-L |
| Certification | cULus Recognized, CE, UKCA, RCM |
| RoHS | Compliant |
| Original/New | New Original |
