CQ4-08EPSKT1 6051004
Product Overview

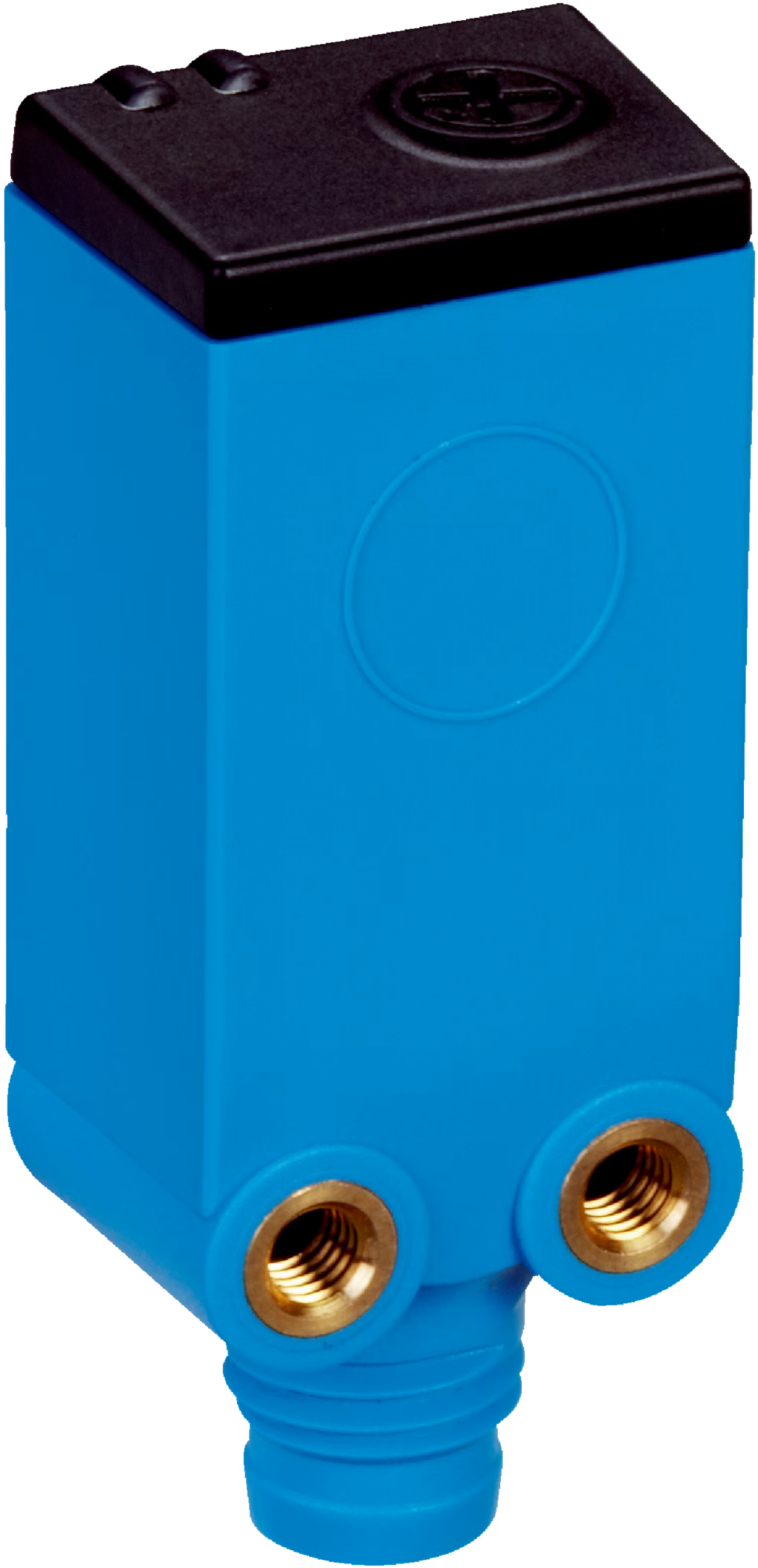

New original SICK CQ4-08EPSKT1 capacitive proximity sensor, PN 6051004, compact rectangular CQ4 series sensor. Sensing range 1~8mm, PNP NO output, 10-30VDC power supply. It comes with 0.3m cable and M8 3-pin male connector, IP67 protection grade. Equipped with 5-turn potentiometer to adjust sensitivity. Miniature compact size, stable performance within -20℃ ~ +75℃. Perfect for limited space installation, suitable for level detection and object sensing in packaging, conveyor and other industrial automation equipment. We supply genuine SICK sensors with fast delivery and professional after-sales support.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Model | CQ4-08EPSKT1 |
| Part No. | 6051004 |
| Series | CQ4 |
| Sensor type | Capacitive proximity sensor |
| Sensing distance | 1 ~ 8 mm |
| Installation | Flush / Non-flush mount |
| Output type | PNP, NO |
| Wiring | DC 3-wire |
| Connection | M8 male, 3-pin, 0.3m cable |
| Supply voltage | 10–30 V DC |
| Max switching current | 100 mA |
| Switching frequency | 100 Hz |
| IP rating | IP67 |
| Housing material | PBT plastic |
| Operating temperature | -20 ℃ ~ +75 ℃ |
| Feature | 5-turn potentiometer for sensitivity adjustment, compact miniature design |
| Weight(net) | 0.05 kg |
| Weight(gross) | 0.10 kg |
| Certificate | RoHS |
