CQ28-10NPO-KW1 6084806
Product Overview

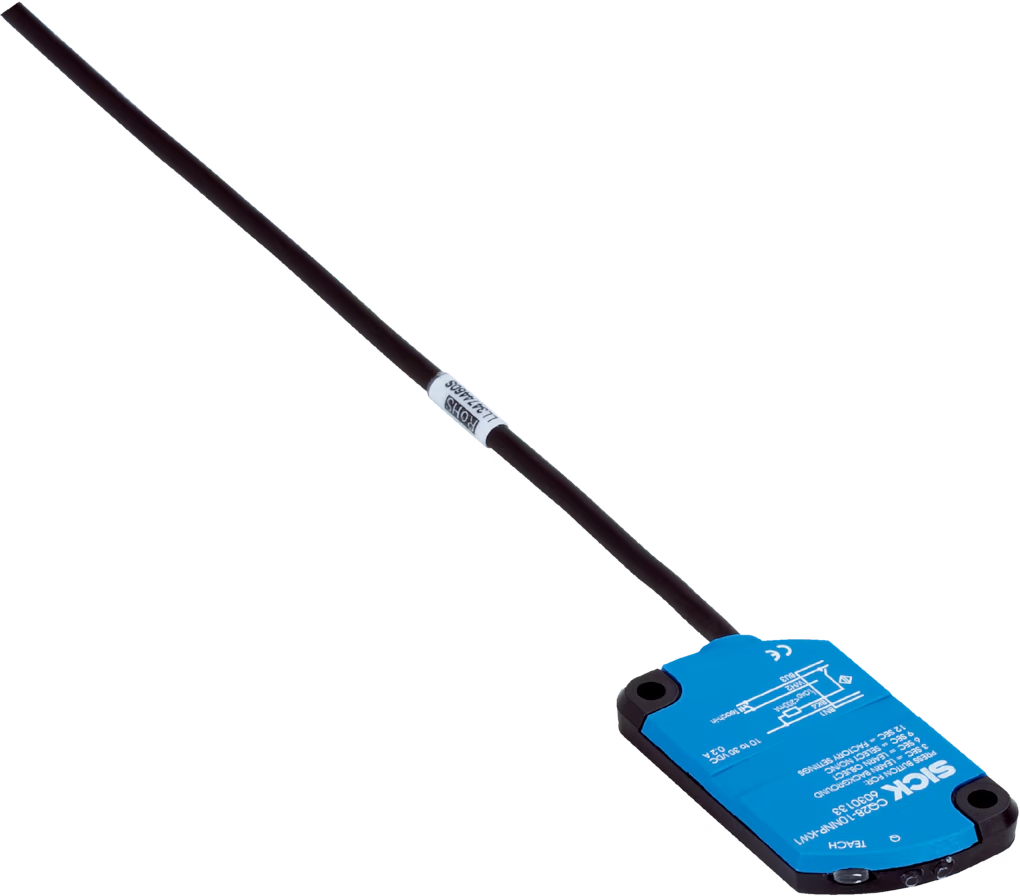

New original SICK CQ28-10NPO-KW1 capacitive proximity sensor, PN 6084806, rectangular CQ series non-flush mount sensor. Sensing range 1~10mm, PNP NC output, 10-30VDC power supply. It comes with 2m 4-core PVC cable and IP68 protection grade. It has teach-in function and excellent EMC performance, which can detect liquid, powder and granular materials stably. Working temperature -20℃ ~ +85℃. It is widely used for level monitoring and object detection on packaging, conveyor and other industrial automation lines. We supply genuine SICK sensors with fast delivery and professional after-sales support.
| 属性名 | 属性值 |
|---|---|
| Brand | SICK |
| Model | CQ28-10NPO-KW1 |
| Part No. | 6084806 |
| Series | CQ |
| Sensor type | Capacitive proximity sensor |
| Sensing distance | 1 ~ 10 mm |
| Installation | Non-flush mount |
| Output type | PNP, NC |
| Wiring | DC 4-wire |
| Connection | 2m 4-core PVC cable |
| Supply voltage | 10–30 V DC |
| Max switching current | 200 mA |
| Switching frequency | 10 Hz |
| IP rating | IP68 |
| Housing material | PBT plastic |
| Operating temperature | -20 ℃ ~ +85 ℃ |
| Feature | Teach-in function, high EMC, detect liquid/powder/granule |
| Weight(net) | 0.12 kg |
| Weight(gross) | 0.18 kg |
| Certificate | RoHS |
