CQ4-08ENOKP1 6051003

属性名	属性值
Brand	SICK
Model	CQ4-08ENOKP1
Part No.	6051003
Series	CQ4
Sensor type	Capacitive proximity sensor
Sensing distance	1 ~ 8 mm
Installation	Flush / Non-flush mount
Output type	NPN, NC
Wiring	DC 3-wire
Connection	M8 male, 3-pin, 0.3m cable
Supply voltage	10–30 V DC
Max switching current	100 mA
Switching frequency	100 Hz
IP rating	IP67
Housing material	PBT plastic
Operating temperature	-20 ℃ ~ +75 ℃
Feature	5-turn potentiometer for sensitivity adjustment, compact size
Weight

INQUIRY

Product Details

Product Tags

Product Overview

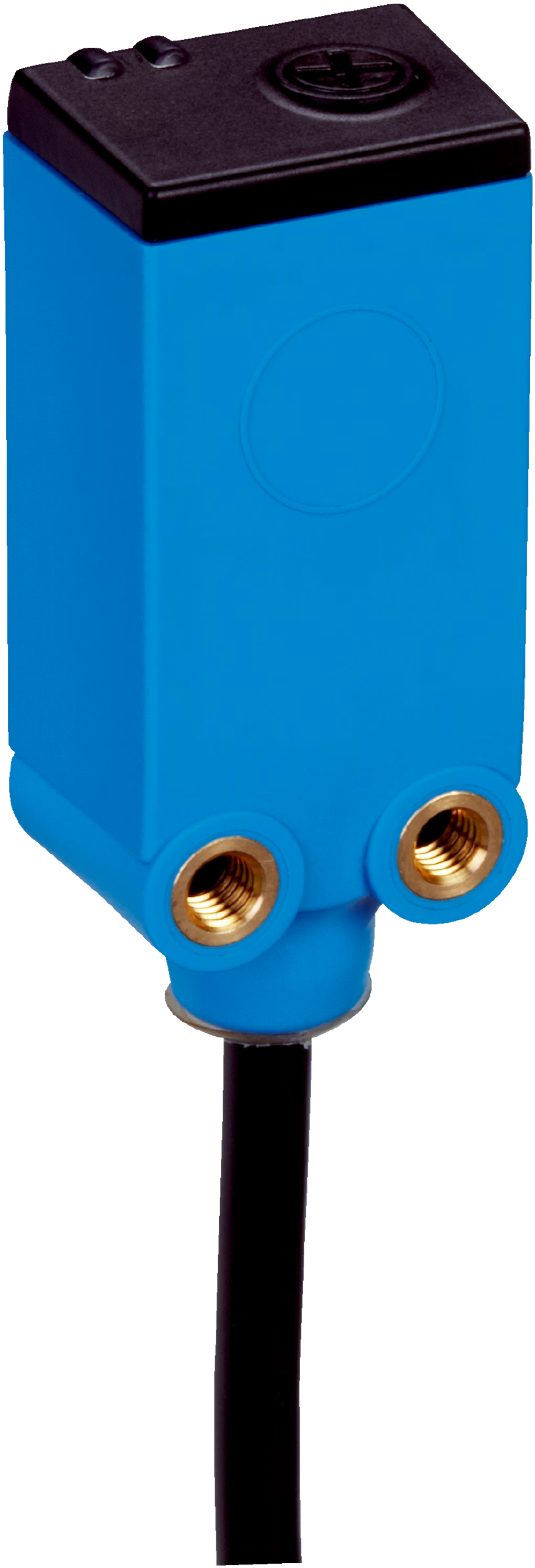

New original SICK CQ4-08ENOKP1 capacitive proximity sensor, PN 6051003, compact rectangular CQ4 series sensor. Sensing range 1~8mm, NPN NC output, 10-30VDC power supply. It comes with 0.3m cable and M8 3-pin male connector, IP67 protection grade. PBT plastic housing with 5-turn potentiometer for sensitivity adjustment. Working temperature -20℃ ~ +75℃. Compact miniature design for narrow installation space, widely used for level detection and object sensing in packaging, conveyor and other industrial automation lines. We supply genuine SICK sensors with fast delivery and professional after-sales support.

属性名	属性值
Brand	SICK
Model	CQ4-08ENOKP1
Part No.	6051003
Series	CQ4
Sensor type	Capacitive proximity sensor
Sensing distance	1 ~ 8 mm
Installation	Flush / Non-flush mount
Output type	NPN, NC
Wiring	DC 3-wire
Connection	M8 male, 3-pin, 0.3m cable
Supply voltage	10–30 V DC
Max switching current	100 mA
Switching frequency	100 Hz
IP rating	IP67
Housing material	PBT plastic
Operating temperature	-20 ℃ ~ +75 ℃
Feature	5-turn potentiometer for sensitivity adjustment, compact size
Weight(net)	0.05 kg
Weight(gross)	0.10 kg
Certificate	RoHS
