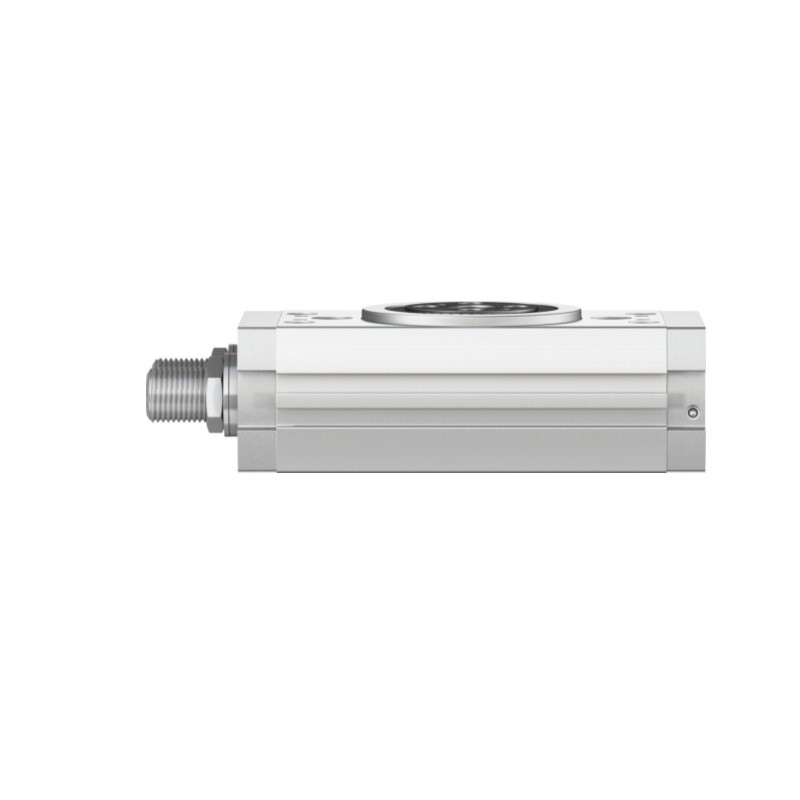

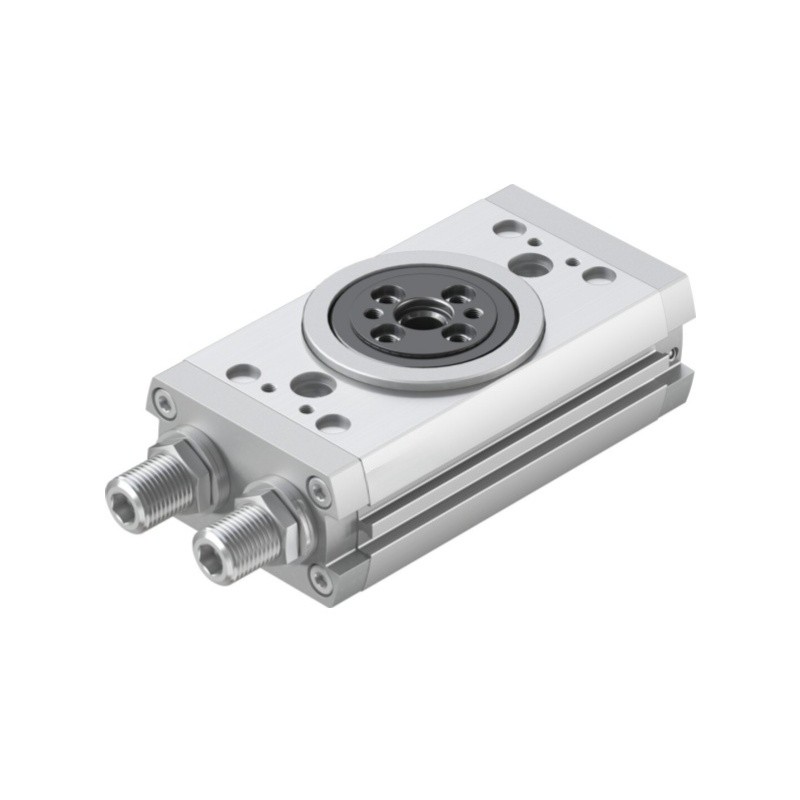

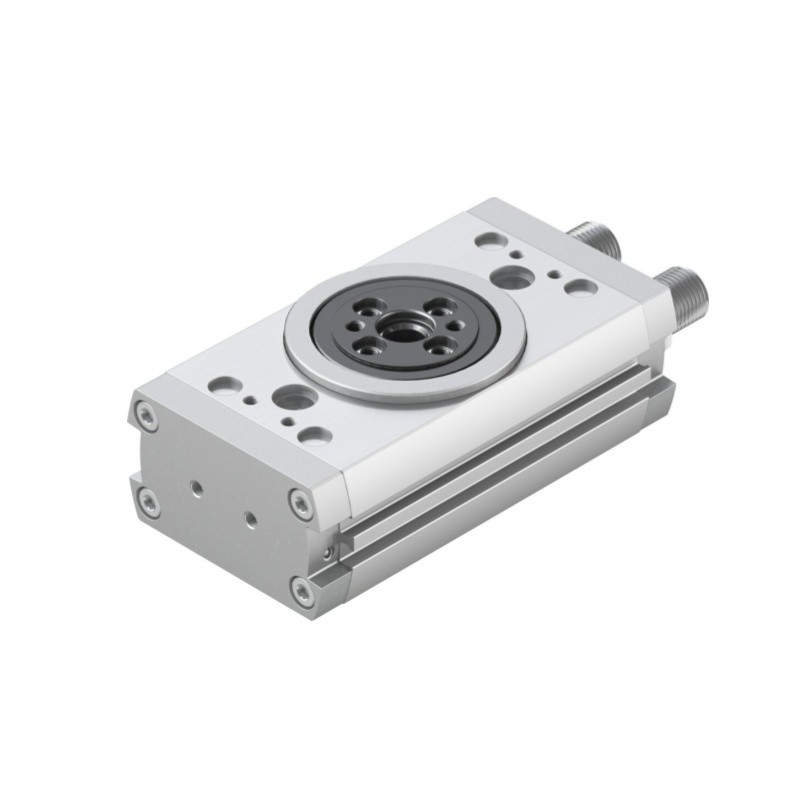

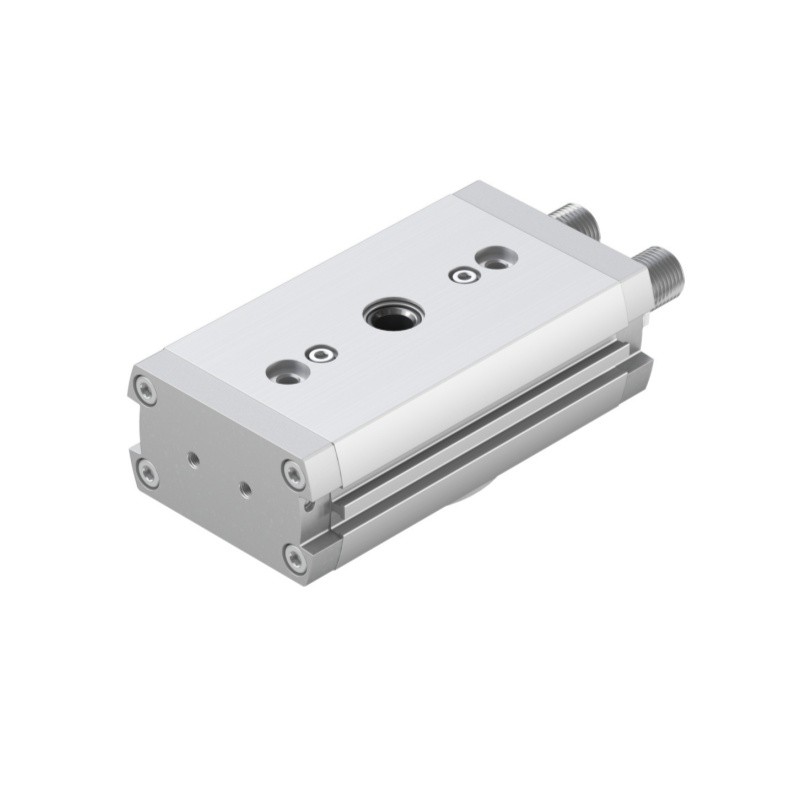

DRRD-25-180-FH-PA
Product Overview
DRRD-25-180-FH-PA (Part No.1359980) is Festo DRRD series twin-piston semi-rotary drive, adopting rack-and-pinion structure. It features 180° nominal swivel angle, size 25, FH flange hollow shaft and PA elastic cushion rings on both ends. Working pressure 3~8 bar, theoretical torque 5.15 Nm at 6 bar, IP65 protection. It is widely used for rotary positioning and rotational motion in pneumatic handling and automation systems.
| 属性名 | 属性值 |
|---|---|
| Brand | Festo |
| Model | DRRD-25-180-FH-PA |
| Part No. | 1359980 |
| Product Type | Pneumatic Semi-Rotary Drive / Rotary Actuator |
| Series | DRRD |
| Size | 25 |
| Nominal Swivel Angle | 180 ° |
| Shaft Type | FH Flange hollow shaft |
| Cushion Type | PA Elastic cushion rings at both ends |
| Operating Mode | Double-acting |
| Operating Pressure | 3 ~ 8 bar (0.3~0.8 MPa) |
| Theoretical Torque @6bar | 5.15 Nm |
| Permissible Mass Moment of Inertia | 0.09 kg·m² |
| Cushion Angle | 33 ° |
| Swivel Angle Adjustment Range | +10° / -100° on both ends |
| Structure | Rack and pinion, twin piston |
| Position Detection | Via proximity switch |
| Protection Class | IP65 |
| Mounting Position | Optional |
| Operating Medium | Compressed air ISO 8573-1:2010 [7:4:4] |
| Ambient Temperature | -10 ~ +60 ℃ |
| Housing Material | Die-cast aluminium |
| Seal Material | NBR |
| CRC Corrosion Class | CRC2 |
| LABS Compliance | VDMA24364 Zone III |
| Net Weight | 1.34 kg |
| Gross Weight | 1.60 kg |
| RoHS | Compliant |
| Condition | New Original |
| Application | Rotary positioning, handling system, robotic rotary axis, automation machinery |
