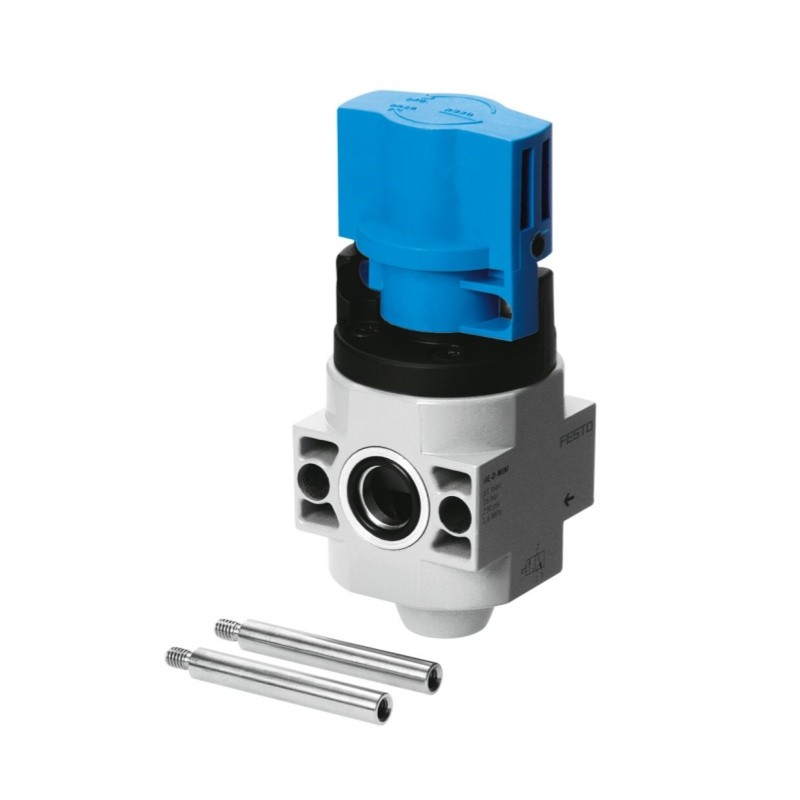

HE-D-MINI
Product Overview
FESTO HE-D-MINI belongs to HE series manual shut-off valve, matched modularly with FRC MINI air service preparation unit. It is a 3/2-way soft-seal piston slide valve operated by manual rotary knob. G1/8 pneumatic port, nominal flow up to 1500 l/min, working pressure 0~16 bar. The valve can be locked with padlock under exhaust state for safety lockout, preventing accidental air supply. LABS(PWIS) compliant, suitable for paint spraying production line. Die-cast aluminium valve body with NBR seals, easy manual operation, widely used for manual cut-off and exhaust of compressed air in pneumatic systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | HE-D-MINI |
| Order No. | 170681 |
| Product Series | HE |
| Product Type | 3/2-Way Manual Pneumatic Shut-off Valve |
| Valve Function | 3/2-way, normally closed |
| Structure | Piston slide valve, soft seal |
| Actuation | Manual rotary knob operation |
| Pneumatic Port | G1/8 |
| Nominal Flow Rate | 1500 l/min (DIN1343) |
| Operating Pressure | 0 ~ 16 bar |
| Lock Function | Padlockable in exhaust position for safety lockout |
| Ambient Temperature | -10 ~ +60 ℃ |
| Medium Temperature | -10 ~ +60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:4:4], inert gas |
| Housing Material | Die-cast aluminium |
| Seal Material | NBR |
| Feature | LABS(PWIS) compliant VDMA24364-B1/B2-L, modular matched for FRC MINI air service unit, manual safety shut-off |
| Mounting | Modular assembly for D-series MINI service unit, any mounting position |
| Corrosion Resistance Class | CRC 2 |
| Weight | 192 g |
| Certificate | CE, RoHS |
| Origin | Germany |
| Condition | New Original |
