6041819 VL180-2P42431
Product Overview

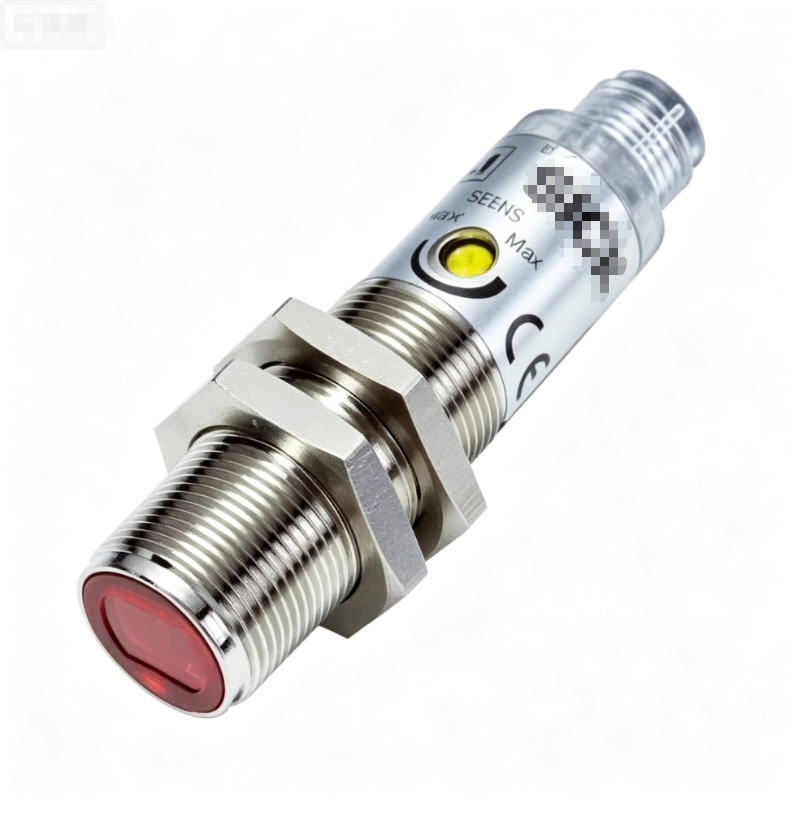

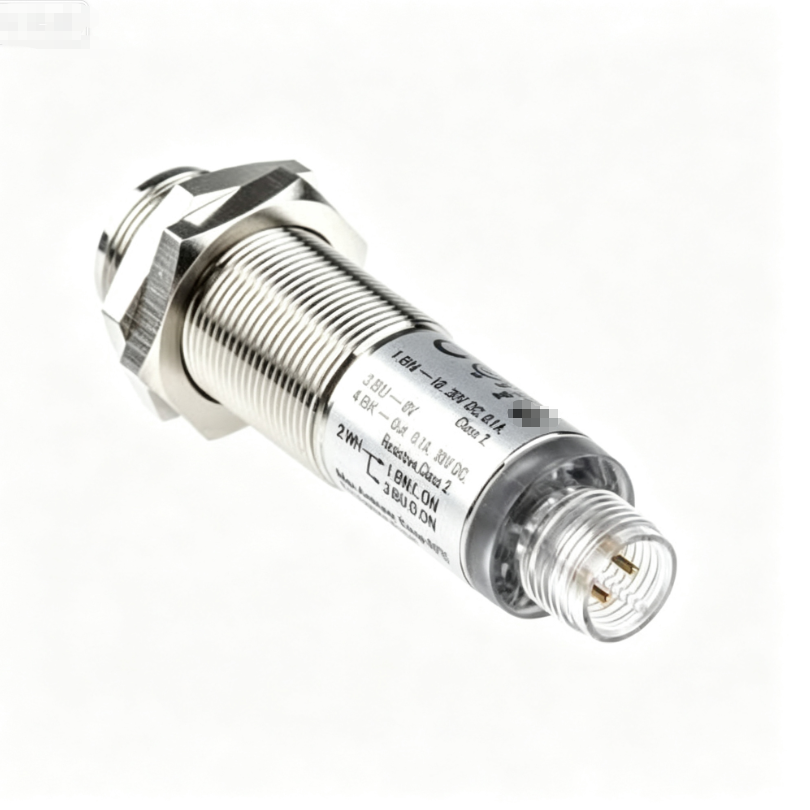

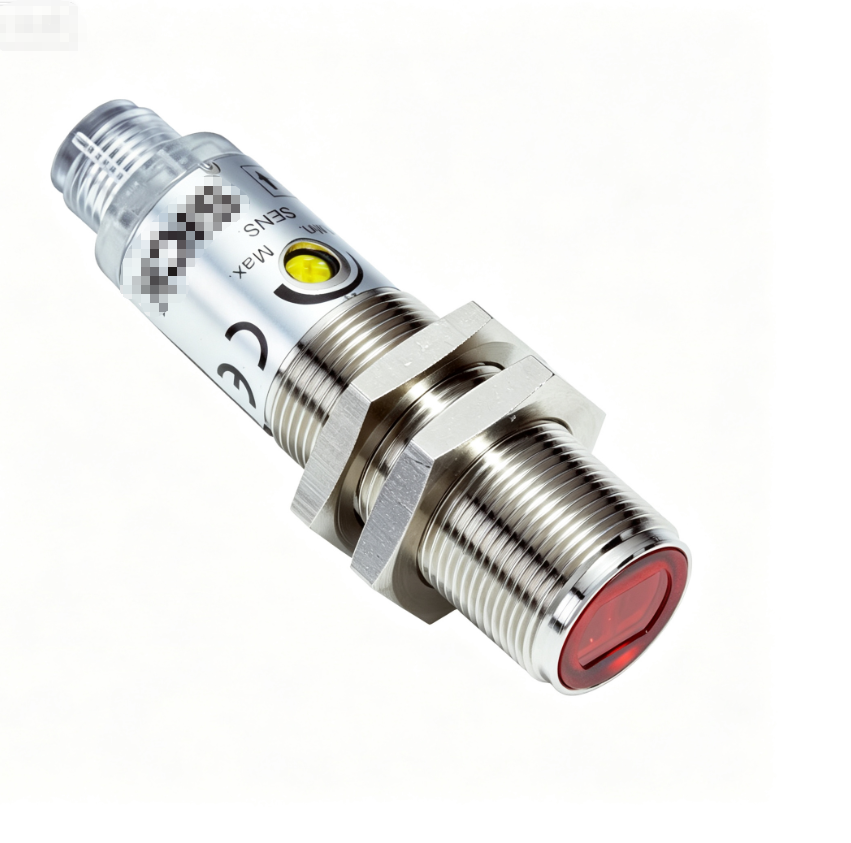

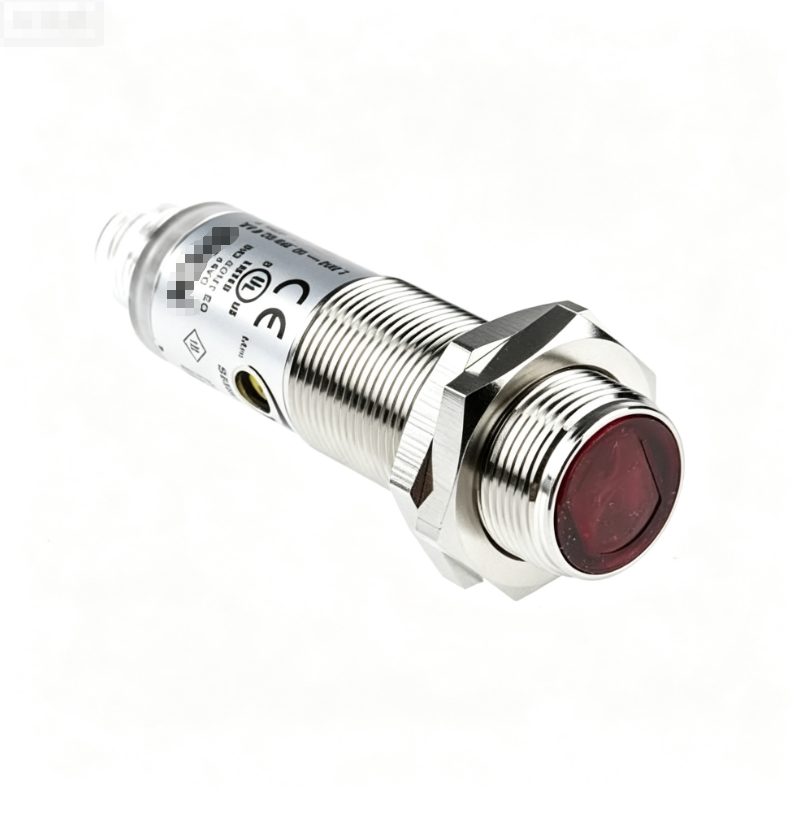

VL180-2P42431 (Part No.6041819) is a retro-reflective photoelectric sensor of SICK VL180 series. It uses PinPoint 650nm visible red LED light source, maximum sensing distance reaches 7m when cooperating with reflector. It has built-in potentiometer for sensitivity adjustment, PNP output with switchable Light-ON / Dark-ON function. Plastic housing with IP67 protection class, M12 4-pin male connector and powered by DC10~30V. It can reliably detect target objects in general industrial automation scenes. Brand new original SICK photoelectric sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | VL180-2P42431 |
| Part No. | 6041819 |
| Product Type | Photoelectric Sensor |
| Series | VL180 |
| Principle | Retro-reflective photoelectric sensor |
| Sensing Distance | Max 7 m (with reflector) |
| Light Source | PinPoint red LED, 650nm |
| Adjustment | Potentiometer |
| Output | PNP, Light-ON / Dark-ON switchable |
| Supply Voltage | 10 V DC ~ 30 V DC |
| Connector | M12 4-pin male connector |
| Protection Class | IP67 |
| Housing Material | Plastic |
| Switching Frequency | 500 Hz |
| Condition | New Original |
| Application | Object detection, conveyor system, packaging machinery, material handling |
| Net Weight | 0.045 KG |
| Gross Weight | 0.078 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
