1070173 IMB18-12NPSVC0S
Product Overview

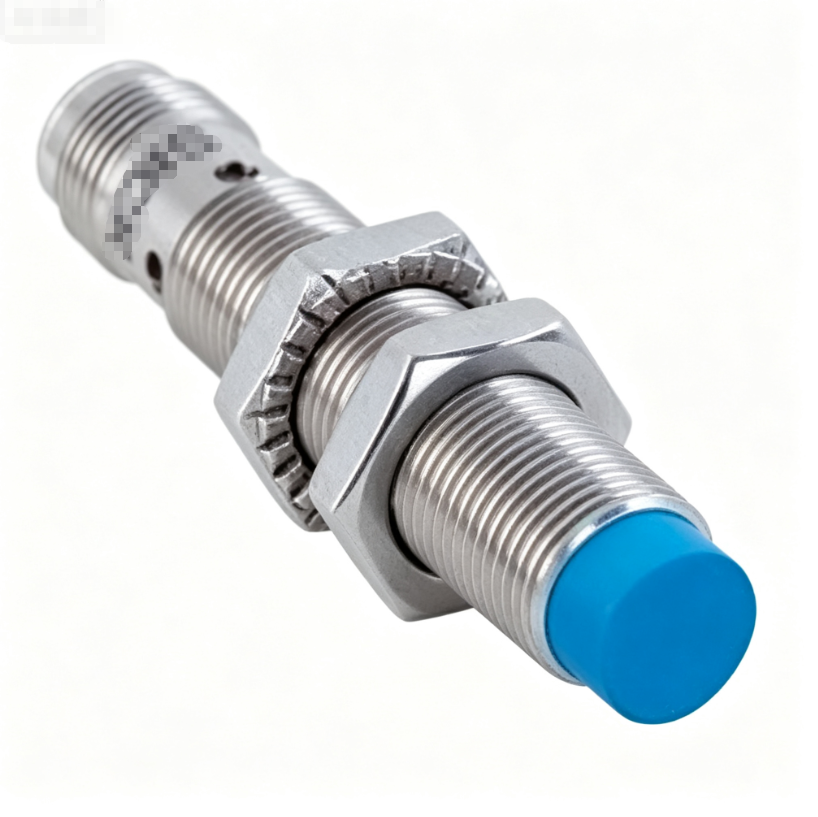

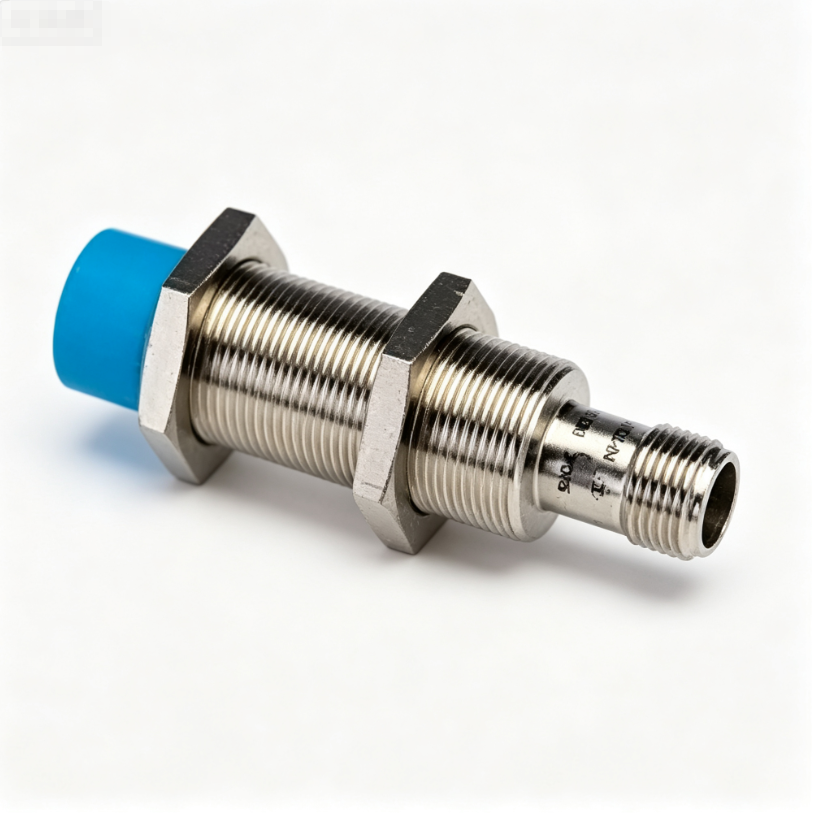

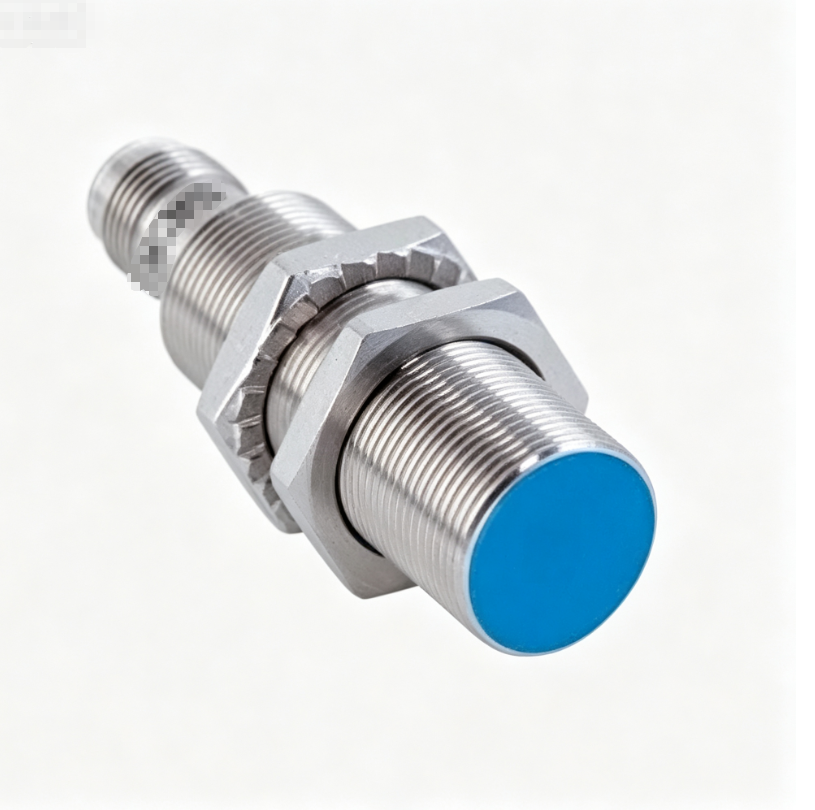

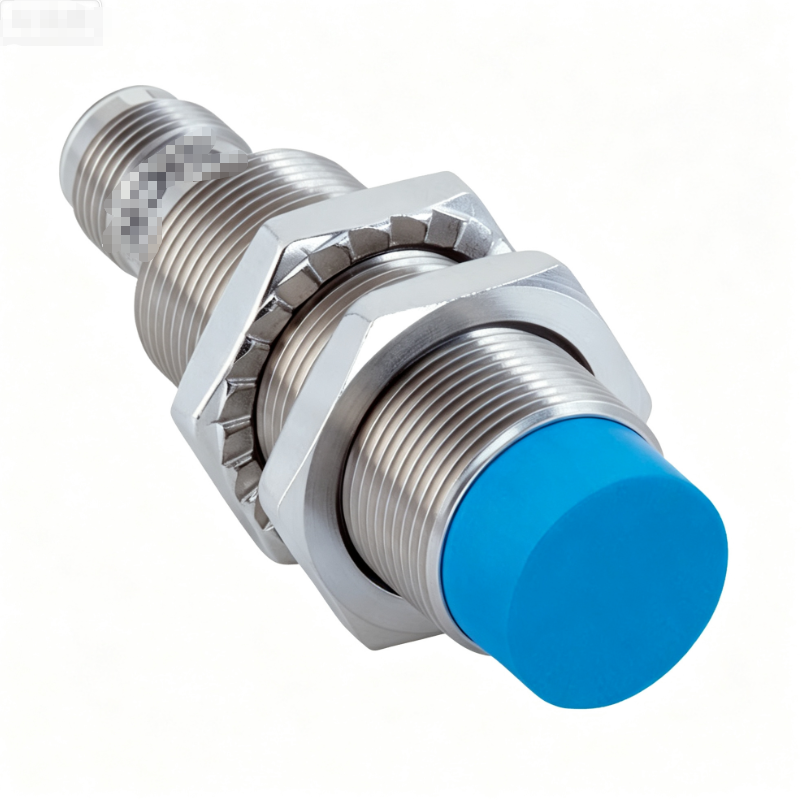

IMB18-12NPSVC0S (Part No.1070173) is an inductive proximity sensor of SICK IMB18 series. It is M18 diameter non-flush mounting type, rated sensing distance Sn=12 mm, suitable for metal target detection. Equipped with PNP Normally Open DC 3-wire output, integrated IO-Link interface, operating voltage DC10~30V. The housing is made of stainless steel V2A 1.4305 with protection class IP68 and IP69K. It features good resistance to coolant and lubricant and built-in visual status indicator, ideal for metal workpiece detection in harsh machine tool and industrial automation environments. Brand new original SICK inductive proximity sensor.
| 属性 | 属性值 |
|---|---|
| Brand | SICK |
| Model Number | IMB18-12NPSVC0S |
| Part No. | 1070173 |
| Product Type | Inductive Proximity Sensor |
| Series | IMB18 |
| Principle | Inductive metal detection |
| Sensing Distance | Sn=12 mm, Sa=9.72 mm, non-flush mounting |
| Thread Specification | M18×1, Ø18mm |
| Output | PNP NO (Normally Open), DC 3-wire |
| Supply Voltage | 10 ~ 30 V DC |
| Interface | IO-Link |
| Protection Class | IP68, IP69K |
| Housing Material | Stainless steel V2A 1.4305 |
| Connector | M12 4-pin male connector |
| Switching Frequency | 1000 Hz |
| Special Feature | Coolant & lubricant resistant, visual LED indicator |
| Condition | New Original |
| Application | Metal workpiece detection, machine tools, automation machinery, conveyor system |
| Net Weight | 0.075 KG |
| Gross Weight | 0.110 KG |
| Place of Origin | Germany |
| MOQ | 1 Piece |
| Warranty | 12 Months |
