WSE12I-1H162100A00ZDZZZZZZZZZ1
Product Details

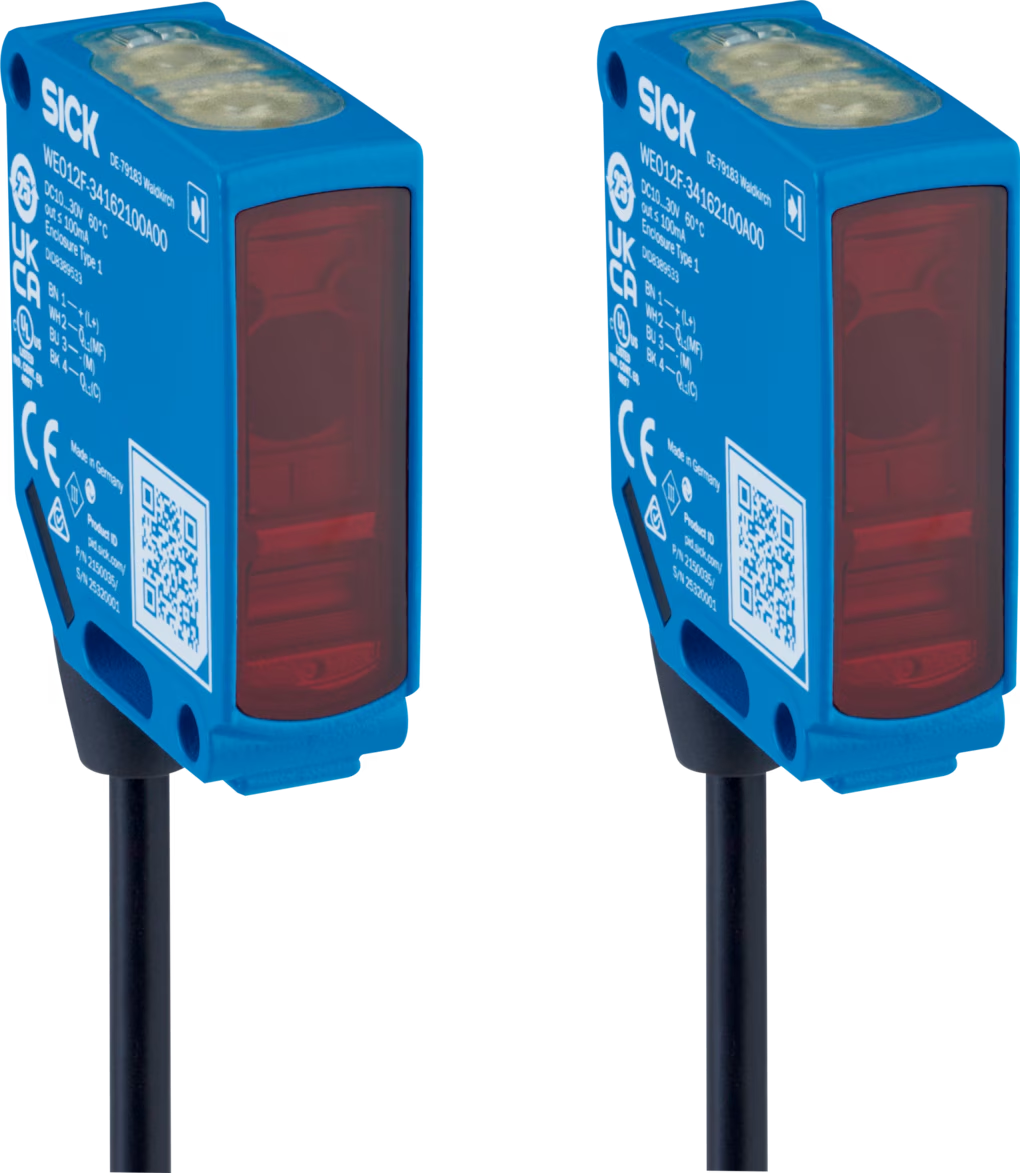

The SICK WSE12I-1H162100A00ZDZZZZZZZZZ1 is a brand-new original through-beam photoelectric sensor receiver from the W12 series. Equipped with infrared LED light source, it operates in the 10–30 V DC voltage range and provides push-pull PNP/NPN dual output for flexible connection to various PLC controllers. It has an IP67 rating to withstand dust and moisture in harsh industrial environments.
Made of robust zinc die-cast rectangular housing, this receiver unit comes with 4-wire cable for convenient mounting and wiring. It must work together with a matched transmitter to detect objects reliably when the light beam is interrupted.
This receiver unit is widely installed on conveyor belts, packaging machinery and material handling automated lines. Every sensor undergoes full quality inspection before shipment and is CE certified. We supply genuine SICK sensors with MOQ of 1 piece and offer stable global shipping services to meet your factory automation requirements.
| 属性名称 | 属性值 |
|---|---|
| Brand | SICK |
| Model | WSE12I-1H162100A00ZDZZZZZZZZZ1 |
| Product Name | Through-beam Photoelectric Sensor (Receiver) |
| Product Type | Through-beam photoelectric sensor receiver |
| Series | W12 Series |
| Working Principle | Through-beam receiving detection |
| Light Source | Infrared LED |
| Housing Material | Zinc die-cast metal |
| Shape | Rectangular |
| Dimension(W×H×D) | 15.8mm × 49.2mm × 43.1mm |
| Connection | 4-wire cable |
| Output Type | Push-pull (PNP/NPN) |
| Supply Voltage | 10 … 30 V DC |
| IP Rating | IP67 |
| Ambient Temperature | -25℃ ~ +55℃ |
| Net Weight | 0.26 kg |
| Gross Weight | 0.32 kg |
| Origin | Germany |
| Condition | Brand New Original |
| Application | Conveyor, packaging machinery, material handling, object detection |
| Certificate | CE |
| MOQ | 1 Piece |
