QSRL-1/8-6
Product Overview

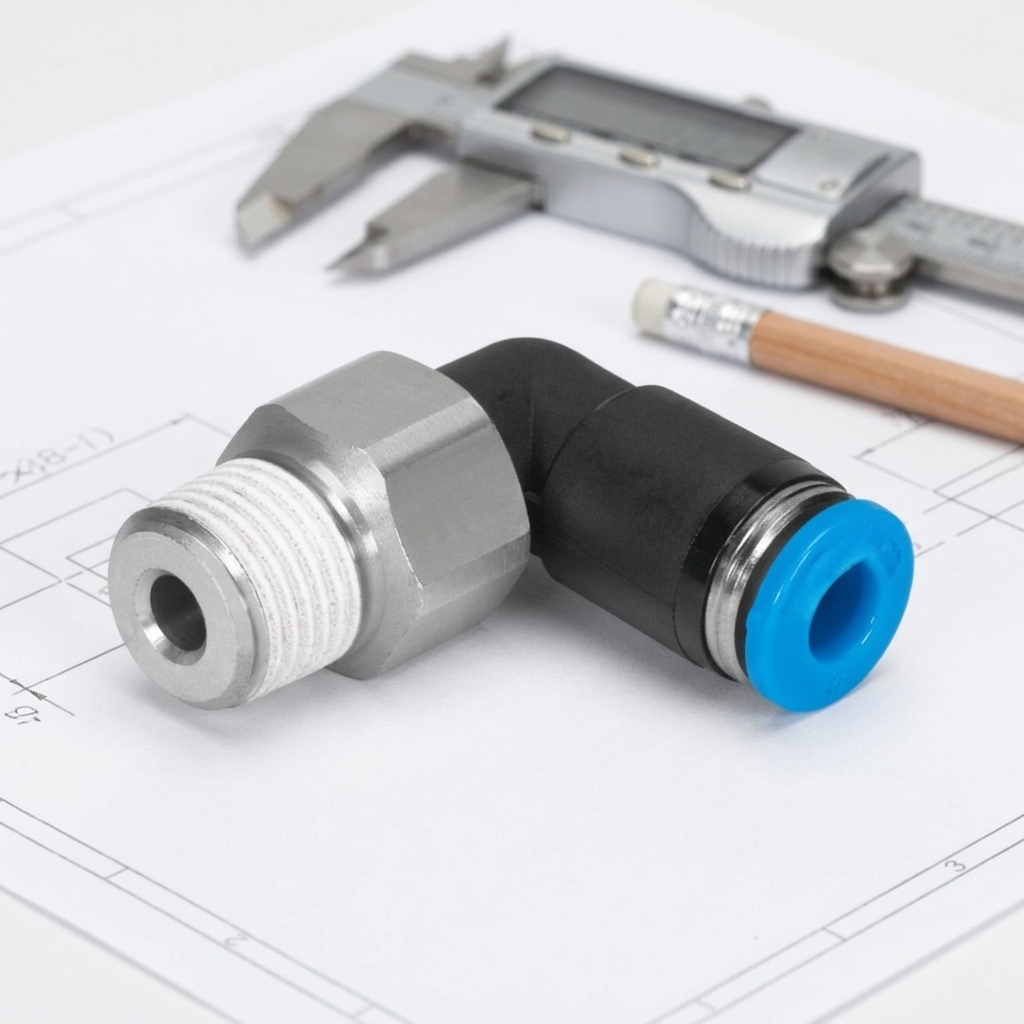

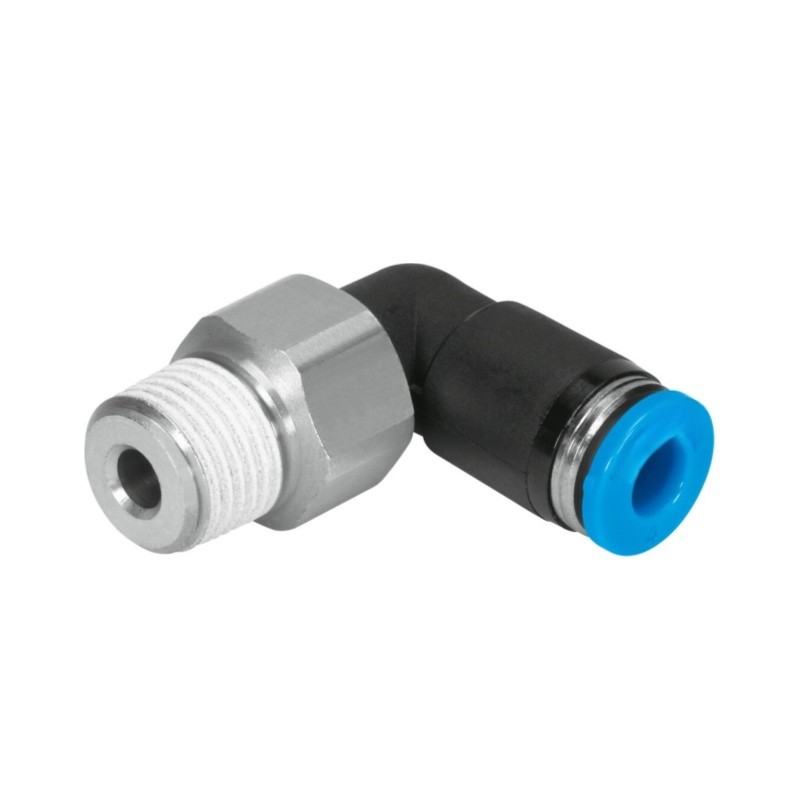

FESTO QSRL-1/8-6 rotatable L push-in fitting belongs to QSRL series pneumatic elbow connector. L-shaped structure with built-in ball bearing, supports 360° rotation, max rotating speed up to 500 rpm. Port with R1/8 male taper thread, another port for OD6mm pneumatic tubing. PBT housing, blue POM release ring, NBR seal and stainless steel retaining claw. It can be rotated after installation to adjust tubing direction, suitable for compressed air circuit and vacuum pipeline, widely used in pneumatic automation systems.
| 属性名称 | 属性值 |
|---|---|
| Brand | FESTO |
| Model | QSRL-1/8-6 |
| Order No. | 153411 |
| Product Series | QSRL |
| Product Type | Rotatable L Push-in Fitting / Pneumatic Elbow Connector |
| Shape | L-shape, 360° rotatable with ball bearing |
| Port 1 | R1/8 Male Taper Thread |
| Port 2 | For tubing OD 6mm |
| Nominal Size | 3.1 mm |
| Operating Pressure | -0.95 ~14 bar |
| Ambient Temperature | 0 ~ +60 ℃ |
| Medium | Compressed air ISO 8573-1:2010 [7:-:-] |
| Max Rotating Speed | 500 rpm |
| Housing Material | PBT |
| Release Ring Material | POM, Blue |
| Seal Material | NBR |
| Retaining Claw | High-alloy stainless steel |
| Feature | 360° rotatable, ball bearing design, LABS compliant |
| Mounting | Any mounting position |
| Corrosion Resistance Class | CRC 1 |
| Weight | 19 g |
| Certificate | RoHS |
| Origin | Germany |
| Condition | New Original |
